Applied Materials 0090-09006 Original Industrial Spare D-A80 Compatible: System Stability & Maintenance Value

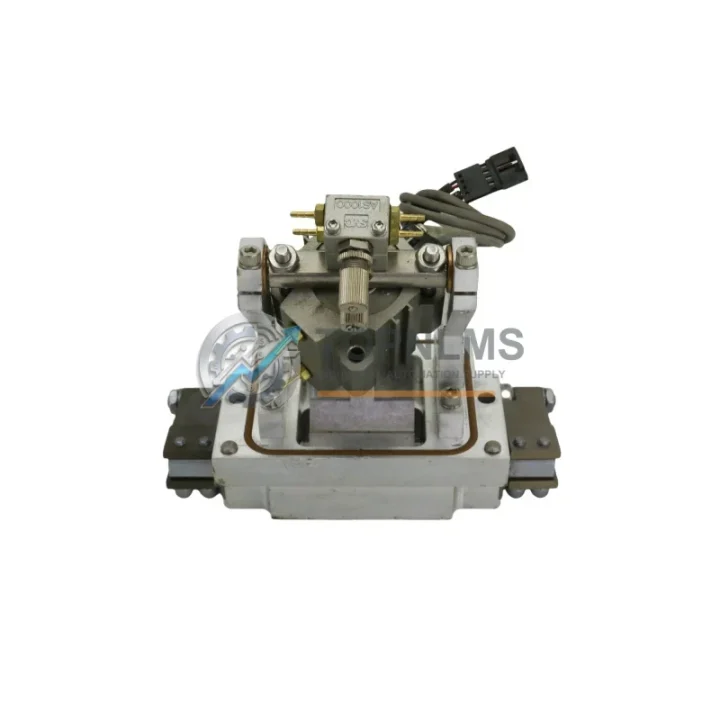

The Applied Materials 0090-09006 D-A80 Etch Slit Valve Assembly is a mission-critical original spare component for semiconductor etch process chambers. Designed to operate within the CPU20-III control architecture at pressures ranging from 0.3 to 8 BAR, this slit valve assembly governs wafer transfer isolation between the transfer module and the etch process chamber. Its reliable sealing performance directly determines process yield, chamber uptime, and contamination control across high-throughput production environments.

In modern semiconductor fabs and advanced packaging facilities, unplanned downtime caused by slit valve failure can halt an entire etch cluster tool within minutes. Sourcing a verified original replacement — part number 0090-09006, cross-referenced as 0010-70191, BG4-4276, BH8-1395-02, and BG4-3835 — ensures drop-in compatibility with existing CPU20-III pneumatic control circuits without requiring software reconfiguration or mechanical adaptation. Every unit shipped from TOPNLMS undergoes functional verification and is backed by a 12-month warranty.

Critical Technical Specs

Preventive Maintenance Strategy

Slit valve assemblies like the 0090-09006 are rarely the only component requiring attention during a scheduled etch chamber PM cycle. When field engineers open the transfer module for slit valve inspection or replacement, it is standard practice to simultaneously audit the condition of the pneumatic supply lines and fittings feeding the valve actuator — pressure drops or micro-leaks in these lines can cause intermittent valve actuation failures that are difficult to diagnose remotely. The CPU20-III controller board itself should be checked for firmware version alignment and I/O signal integrity, as valve position feedback errors are frequently traced to aging digital input modules rather than the valve mechanism itself.

During the same maintenance window, technicians should inspect the chamber lid O-ring and slit valve door seal (BG4-3835 seal kit) for compression set or particulate contamination. A compromised door seal will negate the isolation performance of even a brand-new slit valve assembly. The transfer robot end-effector and its associated position sensors should also be verified for alignment, since misaligned wafer placement is a leading cause of premature slit valve door wear.

For facilities running multiple etch chambers on the same cluster tool, it is advisable to maintain at least one spare 0090-09006 slit valve assembly per tool cluster in on-site inventory. Complementary spares to stock alongside it include the 0010-70191 actuator sub-assembly, the BG4-4276 valve body seal kit, and the chamber pressure transducer module that monitors process isolation integrity. Facilities with aging Centura platforms should also evaluate the condition of the match network RF power module and the ESC (electrostatic chuck) DC power supply, as these components share the same PM interval and their failure modes often co-occur with slit valve degradation in high-cycle etch environments.

For DCS-integrated facilities, the I/O terminal block assemblies and signal isolation modules connected to the valve position feedback circuit should be tested for contact resistance and signal drift. Replacing these low-cost components proactively during a slit valve PM significantly reduces the probability of nuisance alarms and unplanned stops in the weeks following the maintenance event.

Strategic Replacement Solutions

The 0090-09006 D-A80 Slit Valve Assembly is a direct OEM replacement for aging or failed units across Applied Materials Centura and Producer etch platforms. Because this part is no longer in active production at the OEM level, sourcing a verified original spare from an authorized industrial distributor is the most reliable path to maintaining system compatibility without costly platform upgrades.

Unlike aftermarket alternatives, the original 0090-09006 retains full mechanical and pneumatic compatibility with the CPU20-III control circuit, eliminating the need for pressure calibration adjustments or PLC parameter changes after installation. Field replacement typically requires less than two hours of scheduled downtime when a pre-tested spare is available on-site — compared to 24–72 hours of unplanned downtime when sourcing begins only after a failure event.

For facilities managing end-of-life etch tool fleets, stocking the 0090-09006 alongside its cross-reference equivalents (0010-70191, BG4-4276, BH8-1395-02) provides a complete spare coverage strategy that extends tool operational life by 3–5 years without capital expenditure on new equipment. This approach is particularly valuable for legacy process nodes where the cost of tool replacement far exceeds the cost of a well-managed spare parts program.

Support FAQ

Q1: Is the 0090-09006 compatible with both Centura and Producer etch platforms?
Yes. The D-A80 Slit Valve Assembly with CPU20-III control interface is designed for use across Applied Materials Centura Etch and Producer platform configurations. Cross-reference part numbers 0010-70191 and BG4-4276 confirm compatibility across these platforms. If you are unsure of your specific tool configuration, please contact us with your tool serial number for verification before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every 0090-09006 unit is functionally tested for pneumatic actuation response, valve seal integrity, and position feedback signal output prior to shipment. A test report is available upon request. Units are packaged in anti-static, moisture-resistant packaging suitable for international air freight.

Q3: How should I manage spare parts inventory for aging etch cluster tools?
For tools with more than 50,000 wafer cycles, we recommend maintaining a minimum of one slit valve assembly per chamber position in on-site inventory. Pair this with seal kits (BG4-3835, BG4-4276) and actuator sub-assemblies (0010-70191) to ensure complete coverage for all foreseeable failure modes. TOPNLMS can assist with multi-unit procurement planning and volume pricing for facilities managing multiple tools.
