Applied Materials 0040-03490 C3576 Replacement for VFP15R2

Product Overview

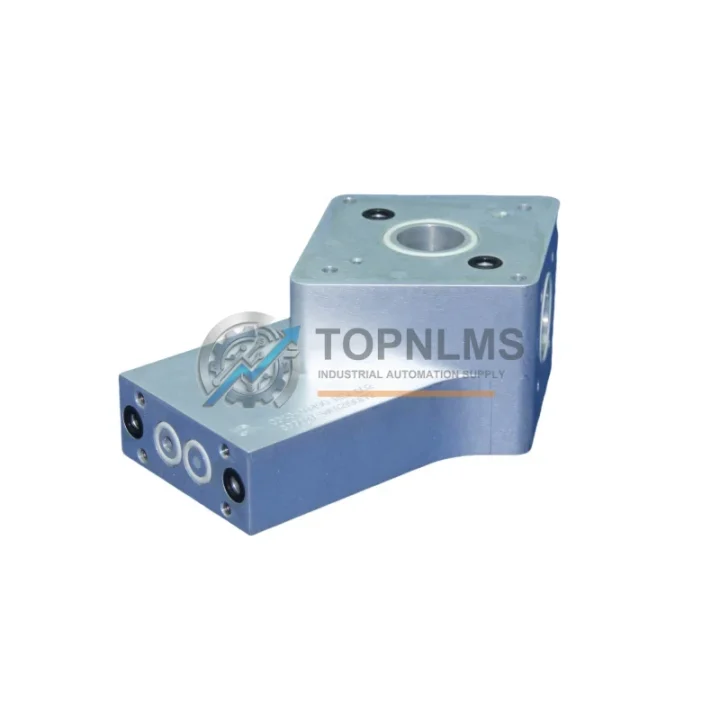

Applied Materials 0040-03490 C3576 Replacement for Producer VFP15R2: Seamless CVD System Upgrade

When a Producer VFP15R2 300mm CVD system faces an unplanned outage due to a failed or end-of-life Left Output Manifold, every hour of downtime translates directly into lost wafer throughput and escalating maintenance costs. The Applied Materials part number 0040-03490 C3576 — also cross-referenced as 715-011901-006 VFP15R2-R21-301 — is a precision-machined gas distribution manifold that governs the delivery of process gases to the left output zone of the Producer VFP15R2 chamber. TOPNLMS supplies this component as a verified replacement, enabling facilities to restore chamber operation with minimal intervention and without compromising process integrity.

The Producer VFP15R2 platform is a dual-chamber, high-throughput CVD system widely deployed in 300mm fabs for dielectric deposition processes including TEOS oxide, USG, and FSG films. The Left Output Manifold (0040-03490 C3576) interfaces directly with the gas injection assembly and the chamber lid, making dimensional accuracy and material compatibility non-negotiable. Our replacement units are sourced from qualified supply channels, inspected against OEM dimensional tolerances, and shipped with full traceability documentation to support your incoming quality control process.

Facilities managing aging Producer VFP15R2 fleets — particularly those transitioning from earlier Producer SE or Producer GT configurations — frequently encounter obsolescence challenges with gas-path components. The 0040-03490 C3576 manifold is one of the higher-attrition parts in this platform, and securing a verified spare ahead of a scheduled PM cycle is a proven strategy for reducing unplanned downtime. TOPNLMS maintains ready stock to support both emergency replacement and planned maintenance programs.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful manifold replacement on the Producer VFP15R2 rarely involves a single component in isolation. During a planned PM or emergency swap of the 0040-03490 C3576 Left Output Manifold, experienced process engineers typically audit the full gas delivery path for wear. The Right Output Manifold (mirror-position counterpart) should be inspected simultaneously, as both manifolds share the same operational duty cycle and often reach end-of-life within the same maintenance window. Similarly, the gas inlet manifold assembly upstream of the output manifolds warrants inspection for seal degradation or particulate contamination.

The chamber lid O-ring kit and gas line VCR fittings are consumables that are routinely replaced during any lid-off maintenance event on the VFP15R2. Neglecting these during a manifold swap introduces the risk of a repeat venting event within a short interval. For facilities running high-utilization chambers, maintaining a kit that includes the manifold, O-rings, and VCR gaskets as a single BOM reduces mean time to repair significantly.

The showerhead assembly and blocker plate are additional chamber components that interact directly with the gas distribution path. If the manifold failure was accompanied by non-uniform deposition or within-wafer thickness variation, these components should be evaluated as part of the root cause analysis before returning the chamber to production. TOPNLMS can source the Producer VFP15R2 showerhead and associated hardware to support a comprehensive chamber refurbishment.

For facilities managing a broader fleet transition — for example, migrating process recipes from a Producer SE platform to the VFP15R2 — the MFC (mass flow controller) calibration and gas panel manifold block configurations may also require attention to ensure gas delivery setpoints translate correctly across platforms. TOPNLMS supports procurement of Applied Materials-compatible MFC units and gas panel components to complement manifold replacement projects.

Where the VFP15R2 is integrated into an automated 300mm fab environment, the robot blade assembly and wafer transfer module components are worth reviewing during any extended chamber downtime, as access to the transfer module is typically restricted during normal operation. Bundling transfer module PM parts with the manifold order allows maintenance teams to maximize the value of each scheduled downtime window.

Retrofit Guidance FAQ

Q: Is the 0040-03490 C3576 a direct drop-in replacement, or does it require any machining or adaptation?
A: This is a direct drop-in replacement. The part is dimensionally equivalent to the OEM specification and interfaces with the existing chamber lid and gas injection assembly without modification. No additional machining, drilling, or adapter hardware is required.

Q: What is the recommended installation procedure?
A: The chamber must be vented to atmosphere and the lid assembly removed per the Producer VFP15R2 maintenance manual. The manifold is secured via the OEM fastener pattern. All gas-path connections should be leak-checked with a helium leak detector after reassembly and prior to pump-down. TOPNLMS recommends following Applied Materials’ published PM procedure for this component.

Q: Can this manifold be used on Producer SE or Producer GT platforms?
A: The 0040-03490 C3576 is specifically designed for the Producer VFP15R2 platform. While some gas distribution components share design lineage across the Producer family, cross-platform compatibility must be verified against the specific chamber configuration. Contact TOPNLMS with your chamber serial number for confirmation before ordering for a non-VFP15R2 application.

Q: What process gases is this manifold compatible with?
A: The manifold is compatible with the standard CVD process gas chemistries used on the VFP15R2, including TEOS, ozone (O3), nitrogen (N2), helium (He), and related dielectric deposition precursors. Compatibility with aggressive or non-standard chemistries should be confirmed with your process engineering team.

Q: How do I verify the part number before ordering?
A: The part number 0040-03490 C3576 is laser-etched or labeled on the OEM component. Cross-reference SKU 715-011901-006 and configuration code VFP15R2-R21-301 can also be used to confirm compatibility. TOPNLMS can provide a pre-shipment photo of the part label upon request.

Q: What is the lead time and shipping arrangement?
A: TOPNLMS ships from Xiamen, China. In-stock orders are typically dispatched within 1–3 business days. International express freight (DHL, FedEx, UPS) is available for time-critical requirements. Please contact us at [email protected] or +86 18359293191 to confirm current stock status and freight options for your destination.

Warranty Assurance

Every 0040-03490 C3576 Left Output Manifold shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a pre-dispatch inspection that includes dimensional verification, visual inspection for surface defects, and documentation review to confirm part number and cross-reference accuracy. A certificate of conformance is available upon request.

In the event of a warranty claim, TOPNLMS will assess the reported issue and provide a replacement unit or credit note as appropriate. Our after-sales response target is within 24 business hours of a claim submission. Warranty coverage applies to manufacturing defects and dimensional non-conformance; it does not cover damage resulting from improper installation, chemical incompatibility outside the specified process envelope, or physical mishandling after delivery.

For procurement teams requiring additional assurance, TOPNLMS can provide pre-shipment inspection reports, packing list documentation, and commercial invoices with HS code declaration to support customs clearance and incoming inspection workflows. We support both one-time emergency procurement and standing blanket order arrangements for facilities managing ongoing VFP15R2 fleet maintenance programs.
