Applied Materials 0010-09301 Original Industrial Spare P5000 Compatible: System Stability & Industrial Spare Maintenance Value

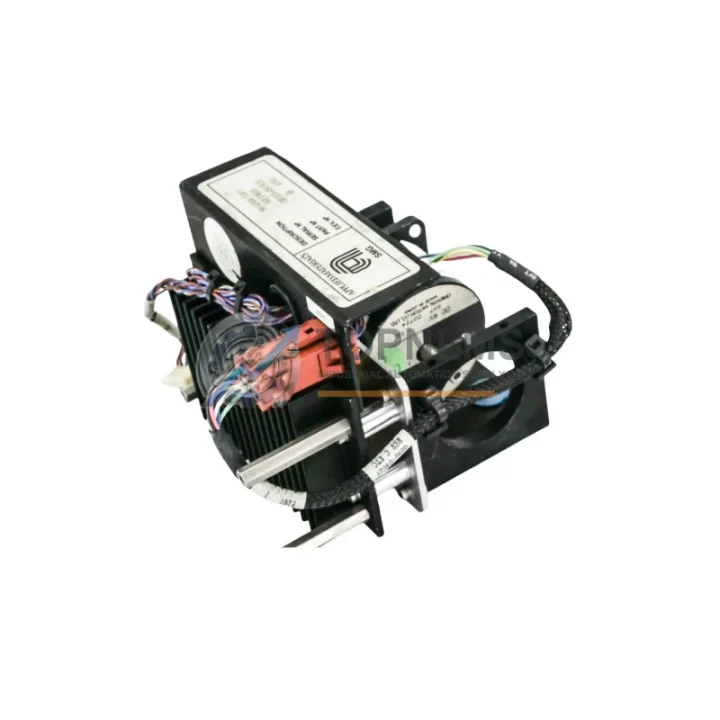

The Applied Materials 0010-09301 CVD Throttle Valve Assembly is a precision-engineered original spare component designed for the P5000 Chemical Vapor Deposition (CVD) platform, specifically validated for use in the 17VA process chamber configuration with TPG 252 process compatibility. In semiconductor fabrication and advanced thin-film deposition environments, the throttle valve assembly is a critical pressure-control component that governs chamber pressure regulation during deposition cycles. A failed or degraded throttle valve directly impacts process uniformity, film quality, and — most critically — production uptime.

For maintenance engineers and procurement teams managing aging P5000 tool fleets, securing a verified original replacement such as the 0010-09301 is not merely a reactive measure — it is a cornerstone of a proactive spare parts strategy. Facilities running 24/7 production schedules cannot afford unplanned downtime caused by a failed pressure-control assembly. Stocking this component as a ready-to-install spare eliminates the lead-time risk associated with emergency sourcing and ensures that scheduled preventive maintenance windows are not extended due to parts unavailability.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a P5000 chamber maintenance cycle — whether triggered by process drift, scheduled PM intervals, or an unplanned tool-down event — the throttle valve assembly should never be evaluated in isolation. The 0010-09301 operates within a tightly integrated vacuum and gas-delivery subsystem, and its performance is directly influenced by the condition of surrounding components.

During a chamber wet clean or full PM, maintenance teams should simultaneously inspect the chamber lid assembly and showerhead faceplate for deposition buildup that can alter gas flow dynamics and increase valve actuation load. The MFC (mass flow controller) modules governing process gas delivery — particularly those handling WF6 or SiH4 lines in TPG processes — should be verified for calibration drift, as out-of-spec flow rates place abnormal demand on the throttle valve’s pressure-regulation response.

The turbomolecular pump and its associated foreline isolation valve are upstream dependencies of the throttle valve; a degraded turbo pump reduces base pressure performance and forces the throttle valve to operate outside its optimal range. Inspecting the roughing pump oil level and exhaust filter during the same PM window prevents secondary failures that could shorten the service life of a newly installed 0010-09301.

On the electrical and control side, the valve controller PCB and associated position feedback sensor should be tested for signal integrity before and after valve replacement. A faulty position sensor can cause the new valve to be commanded incorrectly, leading to premature wear or process excursions. The chamber pressure gauge (Baratron transducer) should also be zero-checked and recalibrated as part of the same service event to ensure accurate closed-loop pressure control post-installation.

For facilities managing multiple P5000 chambers, it is advisable to maintain a consolidated PM kit that includes the 0010-09301 throttle valve assembly alongside O-ring and seal kits for the chamber body, RF match network components, and heater/susceptor assemblies relevant to the 17VA configuration. This approach minimizes the number of separate procurement events and ensures that all wear-prone components are refreshed within the same maintenance window — reducing the probability of a secondary failure shortly after a primary repair.

Strategic Replacement Solutions

The Applied Materials P5000 platform has been in active production use for over two decades, and many facilities continue to operate these tools well beyond their original design lifecycle. For fabs committed to extending the operational life of their P5000 fleet, the availability of original spare parts such as the 0010-09301 is a decisive factor in long-term tool viability.

Unlike aftermarket or refurbished alternatives, an original Applied Materials throttle valve assembly ensures dimensional conformance, material compatibility with process chemistries (including corrosive halogen-based gases), and full mechanical interchangeability with the existing actuator and valve body interfaces. This eliminates the qualification risk associated with non-OEM substitutes and allows maintenance teams to restore tool performance to baseline specifications without additional process re-qualification.

For facilities transitioning from older P5000 configurations or consolidating their spare parts inventory across multiple tool generations, the 0010-09301 provides a reliable anchor component around which a broader P5000 spare parts strategy can be built. Procurement teams are encouraged to evaluate multi-unit stocking of this assembly — particularly for high-utilization chambers running continuous production — to ensure that a replacement is always available without relying on spot-market sourcing, which carries both price volatility and lead-time risk.

All units supplied by TOPNLMS are individually inspected, function-verified where applicable, and shipped in protective ESD-safe packaging to preserve component integrity during transit. Worldwide logistics coverage ensures that facilities in Asia, Europe, and the Americas can receive replacement parts within competitive lead times.
