Applied Materials 0010-00098 Throttle Valve Replacement QDP/QMB

Product Overview

Applied Materials 0010-00098 Throttle Valve Replacement for QDP/QMB Series: Seamless Transition & Legacy System Compatibility

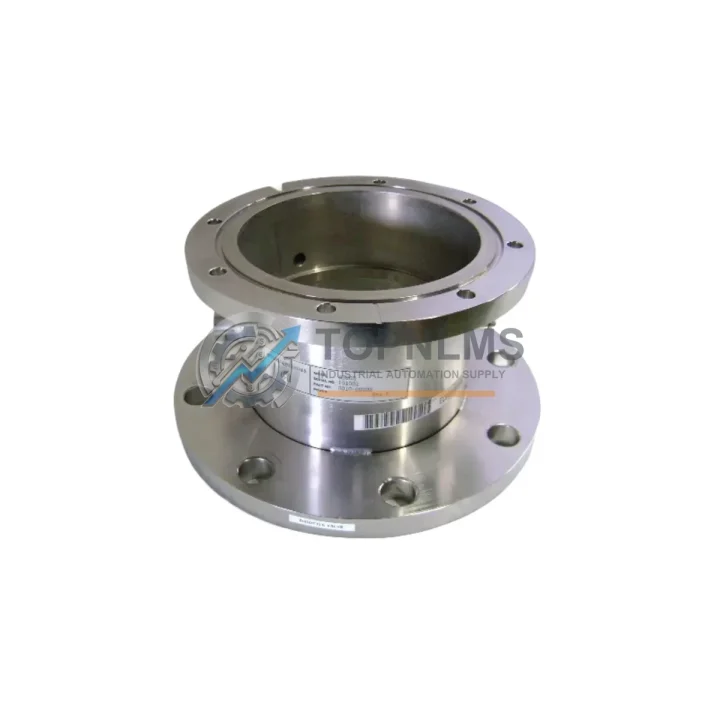

The Applied Materials 0010-00098 Throttle Valve Assembly is a precision vacuum control component engineered for use in the QDP40, QMB250, QMB500, and DLP240-24-1/EJ dry pump and booster systems. As semiconductor fabs and industrial vacuum system operators face increasing pressure to maintain uptime on aging equipment platforms, sourcing a verified replacement for the 0010-00098 becomes a critical procurement decision. TOPNLMS supplies this assembly as a direct drop-in replacement, backed by pre-shipment functional testing and a 12-month warranty, enabling your maintenance team to restore full vacuum control capability with minimal disruption to ongoing processes.

Whether your facility is running a legacy CVD, etch, or ion implant tool that relies on the QDP/QMB dry pump train, or you are executing a planned retrofit to extend equipment life, the 0010-00098 throttle valve assembly integrates directly into the existing pneumatic and electrical interface without requiring modifications to the pump body, control wiring, or process recipe parameters. This makes it an ideal solution for both emergency breakdown replacements and scheduled preventive maintenance cycles.

Compatibility Comparison Table

Seamless Upgrade Solutions

A throttle valve replacement rarely occurs in isolation. In most QDP/QMB pump train maintenance scenarios, the 0010-00098 assembly is replaced as part of a broader service event that may also involve the QDP40 pump body rebuild kit, replacement of the QMB250 or QMB500 booster rotor seals, or inspection of the DLP240 inlet isolation valve. Facilities running multi-stage vacuum systems often address the backing pump inlet filter assembly and exhaust check valve at the same time to avoid repeat shutdowns within a short interval.

For tools where the throttle valve is controlled via a process controller or PLC-based vacuum management module, the replacement procedure should be coordinated with the controls team to verify that the valve position feedback signal — typically a 4–20 mA or discrete open/close output — is correctly re-zeroed after installation. In systems using an Edwards or BOC Edwards vacuum controller paired with the QDP pump, the controller’s valve calibration routine should be re-run post-installation to confirm accurate throttle response across the full pressure setpoint range.

Facilities performing a broader pump platform migration — for example, transitioning from a QDP40-based roughing stage to a newer dry pump platform — may use the 0010-00098 replacement as an interim measure to maintain production continuity while the capital replacement project is approved and scheduled. In this context, the throttle valve assembly extends the serviceable life of the existing pump train by restoring precise vacuum conductance control, which directly impacts process pressure stability, deposition uniformity, and etch rate repeatability.

Additional components commonly sourced alongside the 0010-00098 include the QMB booster bypass valve assembly, pump inlet KF/ISO flange seals, nitrogen purge solenoid valve, and pump controller interface cable. For facilities maintaining a spare parts inventory program, TOPNLMS can supply these components as a coordinated kit to reduce per-unit freight costs and consolidate incoming inspection workload.

Retrofit Guidance FAQ

Q: Does replacing the 0010-00098 require any modification to the pump body or inlet manifold?
No. The replacement assembly uses the identical flange pattern and bolt circle as the original OEM part. Standard pump isolation, vent-to-atmosphere, and lockout/tagout procedures apply. No machining or adapter hardware is required.

Q: Will the replacement affect my process recipe or vacuum setpoints?
In most cases, no. However, if the original valve had developed a leak or partial obstruction that was compensating for a process drift, restoring full valve function may require a minor recipe pressure setpoint adjustment. A brief pump-down verification run is recommended before returning the tool to production.

Q: Is the pneumatic actuation port compatible with my existing tubing and fittings?
Yes. The replacement assembly maintains the same pneumatic port size and thread specification as the original 0010-00098. Existing tubing, push-in fittings, and solenoid valve connections can be reused without modification.

Q: Can this assembly be used in both QMB250 and QMB500 booster configurations?
Yes. The 0010-00098 is listed as compatible with both the QMB250 and QMB500 booster models, as well as the QDP40 backing pump and DLP240-24-1/EJ configuration. Confirm your specific pump serial number and build variant with your maintenance documentation before installation.

Q: What is the lead time and shipping arrangement?
In-stock units ship from Xiamen, China within 1–3 business days of order confirmation. International express freight (DHL, FedEx, or UPS) is available to most semiconductor fab locations globally. Estimated transit time is 3–7 business days depending on destination and customs clearance.

Q: Is the replacement part tested before shipment?
Yes. Each 0010-00098 assembly undergoes pre-shipment functional inspection covering mechanical actuation, seal integrity, and dimensional verification against OEM specifications. A test report is available upon request.

Warranty Assurance

Every Applied Materials 0010-00098 Throttle Valve Assembly supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects, premature mechanical failure under normal operating conditions, and dimensional non-conformance to OEM specifications. In the event of a warranty claim, TOPNLMS will arrange replacement shipment or issue a credit note following receipt and inspection of the returned unit.

Pre-shipment quality checks include visual inspection, actuation cycle testing, and seal leak verification. Each unit is individually packaged with protective foam inserts and anti-static wrapping where applicable. A packing list and basic installation reference are included with every shipment.

For procurement teams requiring documentation, TOPNLMS can provide a commercial invoice, packing list, certificate of conformance, and country of origin declaration. Lead time confirmation, stock availability, and volume pricing inquiries can be directed to our sales team prior to order placement.

TOPNLMS maintains a responsive after-sales support channel. For warranty claims, technical questions, or replacement coordination, contact us directly — typical response time is within 1 business day.
