Allen-Bradley SP-148540 Ruggedized Drive Control Module

Product Overview

Allen-Bradley SP-148540 Ruggedized Drive Control Module for Harsh Industrial Environments

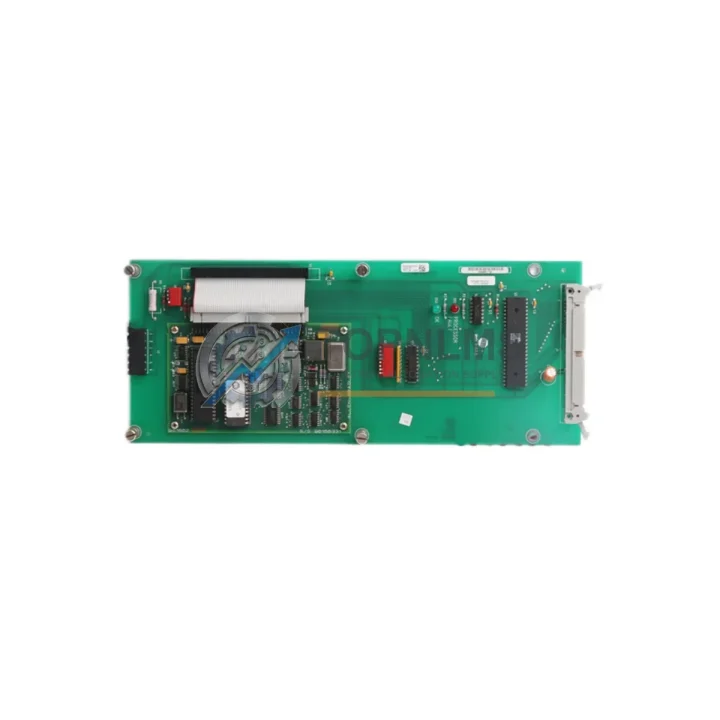

The Allen-Bradley SP-148540 / 148539 / 129736-05 Drive Control PC Board is a precision-engineered control module designed for the Allen-Bradley 1336 Series variable frequency drive (VFD) platform — one of the most widely deployed AC drive families in heavy industrial automation. Built to Rockwell Automation’s exacting standards, this board delivers stable, interference-resistant performance in the most demanding plant-floor conditions: high ambient temperatures, elevated humidity, airborne particulate, mechanical vibration, and strong electromagnetic interference (EMI) fields common to steel mills, mining operations, petrochemical facilities, and continuous process lines.

In environments where a single drive failure can halt an entire production line, the SP-148540 provides the control intelligence that keeps the 1336 VFD responding accurately to speed references, torque commands, and protective trip signals. Its onboard signal conditioning circuitry maintains clean communication between the drive’s power section and the supervisory PLC — whether that controller is an Allen-Bradley ControlLogix, CompactLogix, or a legacy SLC 500 system — even when the control cabinet is exposed to radiated EMI from nearby welding equipment, large motor starts, or high-frequency switching power supplies.

Rugged Specifications Table

Comprehensive Protection Solutions

The SP-148540 does not operate in isolation — it is the nerve center of a broader drive control architecture. In a typical heavy-industry control cabinet, this board interfaces directly with the Allen-Bradley 1336-MOD-A2 communication adapter, enabling the drive to receive speed and torque commands over DeviceNet or Remote I/O from the plant’s supervisory controller. Alongside it, the 1336-BRF-SP2 brake resistor module and associated dynamic braking chopper board rely on the SP-148540’s gate-firing signals to execute controlled deceleration without overvoltage trips — critical in crane hoisting, centrifuge, and winding applications.

In multi-drive installations, the SP-148540-equipped 1336 VFD typically operates alongside Allen-Bradley PowerFlex 70 or PowerFlex 700 drives on newer production lines, with the 1336 series handling legacy motor loads while the newer drives manage updated equipment. The control board’s stable analog reference input circuitry ensures that 4–20 mA speed signals from a Rockwell Automation 1756-OF8 analog output module (ControlLogix chassis) are processed without drift, even in high-noise environments. For facilities running Allen-Bradley 1746 SLC 500 I/O or 1771 PLC-5 remote I/O racks, the SP-148540 maintains backward-compatible communication timing that prevents nuisance faults during high-cycle operations.

Safety-critical installations pair this drive control board with Allen-Bradley 440R Guardmaster safety relays and MSR127 safety modules to enforce SIL 2 / PLd safe-torque-off (STO) requirements. The SP-148540’s fault output logic integrates cleanly with these safety relay input circuits, ensuring that a drive trip propagates correctly to the machine safety controller without masking or delay. In control panels where Allen-Bradley 1492 terminal blocks and 1492-IFM interface modules distribute I/O wiring, the board’s low-impedance signal commons reduce ground loop interference that would otherwise cause erratic speed control.

Power quality upstream of the drive is equally important: facilities typically install Allen-Bradley 1321-3R line reactors and 1321-M line filters ahead of the 1336 drive to suppress harmonic distortion and transient voltage spikes that can stress the SP-148540’s input conditioning circuits. Pairing this board with a properly specified Rockwell Automation 1606-XLP industrial power supply for the control circuit ensures that the board’s logic voltage remains stable during mains fluctuations — a common failure mode in facilities with large induction motor starts on shared bus systems.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the Allen-Bradley 1336 drive equipped with the SP-148540 control board manages pump and compressor motor speeds across hazardous-area boundaries. The drive is typically installed in pressurized or purged enclosures (NEMA 4X / IP65) rated for Zone 2 / Division 2 classified areas, with the SP-148540 providing the internal control logic that responds to process variable signals from the DCS — such as a Honeywell Experion or Emerson DeltaV system — via hardwired analog references or remote I/O.

In underground and surface mining operations, conveyor belt drives, crusher motors, and ventilation fan drives depend on the 1336 platform for variable-speed control under extreme dust loading and vibration. The SP-148540’s robust PCB construction — with conformal coating on production boards — resists conductive dust ingress that would otherwise cause tracking faults on unprotected boards. Replacement of a failed control board on-site, using a pre-tested SP-148540 from inventory, can restore a conveyor drive to service within hours rather than the days required to source an OEM replacement through standard distribution channels.

In electric power generation and transmission facilities — including coal, gas, hydro, and nuclear auxiliary systems — the 1336 drive controls cooling water pumps, forced-draft fans, and fuel handling conveyors. These are continuous-duty applications where unplanned downtime carries significant operational and safety consequences. Maintaining a spare SP-148540 in the plant’s critical-spares inventory is standard practice for reliability engineers following NERC or IEC 61511 asset management frameworks.

In water and wastewater treatment plants, the 1336 VFD with SP-148540 controls influent pumps, aeration blowers, and sludge transfer pumps in environments with high ambient humidity and hydrogen sulfide exposure. The board’s stable operation under these corrosive atmospheric conditions — particularly when the host drive enclosure is properly sealed and ventilated — makes it a preferred choice for plant engineers seeking long mean-time-between-failure (MTBF) performance from aging drive infrastructure.

In metals, steel, and aluminum smelting facilities, the SP-148540 supports rolling mill drives, ladle transfer cars, and fume extraction fans operating in environments with intense radiated heat, airborne metallic particulate, and high-frequency EMI from arc furnaces and induction heaters. The board’s gate-firing precision is essential for maintaining consistent motor torque in tension-controlled rolling applications where speed regulation errors translate directly into product quality defects.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the SP-148540 fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping coordination.

Q2: How is each SP-148540 tested before shipment?
Every unit undergoes a full functional bench test prior to dispatch. This includes power-on verification, analog input/output signal checks, gate-firing output validation, and fault relay continuity testing. A test report is available upon request. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is this board compatible with all variants of the Allen-Bradley 1336 drive series?
The SP-148540 / 148539 / 129736-05 is compatible with the Allen-Bradley 1336 PLUS, 1336 PLUS II, 1336 IMPACT, and 1336 FORCE drive families across applicable horsepower and voltage ratings. If you are unsure whether this board matches your specific drive catalog number and firmware revision, please provide your drive nameplate data and we will confirm compatibility before shipment.

Q4: Can you support long-term or repeat supply for MRO and plant maintenance programs?
Yes. TOPNLMS maintains ongoing inventory of Allen-Bradley 1336 series spare parts, including drive control boards, power interface boards, gate driver boards, and option modules. We support MRO procurement programs, blanket purchase orders, and scheduled delivery arrangements for plant maintenance teams managing large installed bases of 1336 drives. Contact us to discuss volume pricing and supply continuity agreements.
