Allen-Bradley 1398-DDM-005 Original Industrial Spare Ultra 100 Compatible

Product Overview

Allen-Bradley 1398-DDM-005 Original Industrial Spare Ultra 100 Compatible: System Stability & Industrial Maintenance Value

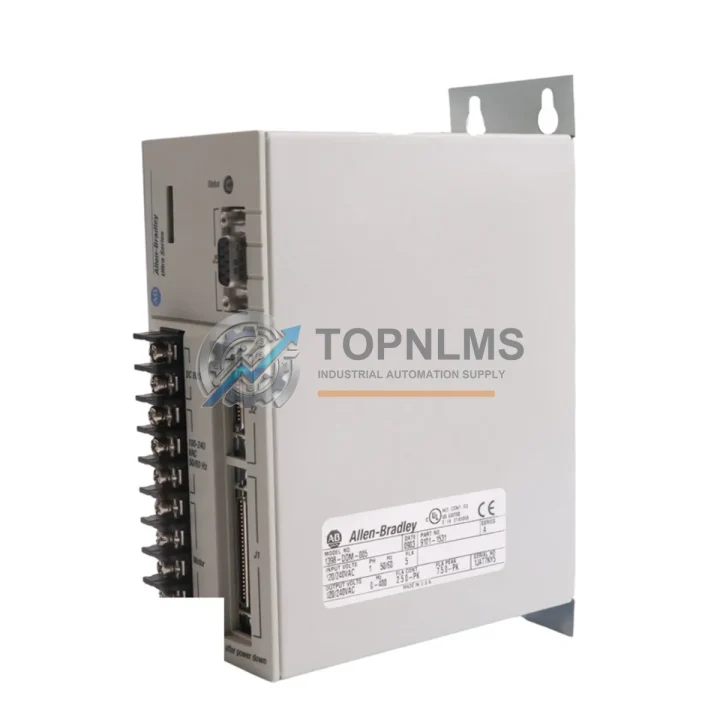

The Allen-Bradley 1398-DDM-005 is a genuine Ultra 100 Series Digital Servo Drive engineered for precision motion control in demanding industrial automation environments. As a critical motion axis component in Allen-Bradley servo systems, this drive directly governs the velocity, torque, and positioning accuracy of servo motors across manufacturing lines, packaging machinery, CNC equipment, and process automation cells. Maintaining a verified spare of the 1398-DDM-005 in your facility inventory is one of the most cost-effective strategies for eliminating unplanned downtime and protecting production continuity.

In high-cycle industrial operations, servo drives are among the highest-stress components in any control cabinet. Thermal cycling, voltage transients, and continuous load demands accelerate wear on internal power stages and feedback interfaces. When a 1398-DDM-005 fails mid-production, the consequences extend far beyond the drive itself — conveyor lines halt, robotic cells go offline, and maintenance teams face pressure to restore operations within hours. Having a pre-tested, shelf-ready replacement eliminates the critical delay between fault detection and system restoration.

Critical Technical Specs

Preventive Maintenance Strategy

A servo drive does not operate in isolation. The 1398-DDM-005 sits at the center of a motion control ecosystem, and its reliable operation depends on the health of every upstream and downstream component in the electrical circuit. During scheduled maintenance windows or unplanned downtime events, experienced maintenance engineers know that inspecting the drive alone is insufficient — a comprehensive inspection of the entire servo axis and control cabinet is essential to prevent repeat failures.

When servicing a machine axis equipped with the 1398-DDM-005, begin by verifying the integrity of the servo motor feedback cable and encoder connector. Damaged or intermittently shorted encoder cables are a leading cause of drive faults and erratic positioning behavior. Alongside the feedback wiring, inspect the motor power cable for insulation breakdown, particularly at cable entry points and conduit bends where mechanical stress concentrates.

The drive’s DC bus is supplied through an Allen-Bradley 1398-series power supply module or an equivalent AC/DC power conditioning unit. Verify that the bus voltage is within specification under load — a sagging or noisy bus voltage is a common precursor to drive overcurrent faults. If the control cabinet also houses an Allen-Bradley 1746 SLC 500 I/O module or a 1747-L series SLC processor that coordinates motion commands, confirm that the processor’s output cards are delivering clean, noise-free command signals to the drive’s analog or digital inputs.

Terminal blocks and 1492-series Allen-Bradley terminal strips within the cabinet should be inspected for loose connections, oxidation, and thermal discoloration — signs of sustained overload or arcing. Loose terminals on the drive’s control wiring can introduce intermittent faults that are notoriously difficult to diagnose under production pressure. Similarly, fuse modules and circuit protection devices protecting the drive’s input lines should be tested for continuity and replaced on a scheduled basis rather than reactively.

If the machine uses a 1398-series Ultra 100 servo motor paired with this drive, check the motor’s bearing condition, shaft seal integrity, and winding resistance. A degraded motor winding increases drive output current demand, accelerating thermal stress on the drive’s internal IGBT power stage. For multi-axis machines, it is prudent to inspect adjacent axis drives — such as a 1398-DDM-009 or 1398-DDM-019 — at the same time, since shared bus architectures mean a fault on one axis can propagate stress to neighboring drives.

Where the system includes an Allen-Bradley PanelView HMI for operator interface, verify that the HMI’s communication link to the SLC or PLC controller is stable and that alarm history logs are reviewed for recurring drive fault codes. Persistent fault codes such as overcurrent, encoder loss, or bus undervoltage are diagnostic indicators that point to specific component degradation in the servo loop. Proactive replacement of the 1398-DDM-005 before a confirmed failure — guided by fault frequency trends — is the most effective way to prevent an unscheduled production stop.

Strategic Replacement Solutions

The 1398-DDM-005 has been a workhorse component in Allen-Bradley Ultra 100 servo systems deployed throughout the 1990s and 2000s. Many of these systems remain in active production service today, supported by facilities that have made a deliberate decision to extend the operational life of proven, validated automation platforms rather than undertake costly full-system migrations.

For maintenance teams managing legacy Ultra 100 installations, sourcing a verified original 1398-DDM-005 is the lowest-risk replacement path. Original drives maintain full compatibility with existing motor-drive tuning parameters, feedback configurations, and PLC ladder logic — eliminating the re-commissioning time and validation effort required when substituting a third-party or cross-brand alternative. Each unit supplied by TOPNLMS is functionally tested prior to shipment, with key electrical parameters verified against factory specifications.

For facilities managing multiple Ultra 100 axes, a strategic inventory approach — maintaining one or two shelf-ready 1398-DDM-005 units per production line — provides a quantifiable reduction in mean time to repair (MTTR). The cost of a single hour of unplanned downtime in most manufacturing environments far exceeds the cost of maintaining a spare drive in inventory. When combined with a documented replacement procedure and pre-configured drive parameters stored in the control system, a trained technician can restore a failed axis to full operation within 30 to 60 minutes of fault detection.

TOPNLMS supplies the 1398-DDM-005 with full pre-shipment functional testing, secure export packaging, and a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Worldwide shipping is available, with expedited options for urgent maintenance requirements.
