Allen-Bradley A74104-231-53 Ruggedized Servo Drive Board

Product Overview

Allen-Bradley A74104-231-53 Ruggedized Servo Drive Board: Industrial Resilience for Harsh Environments

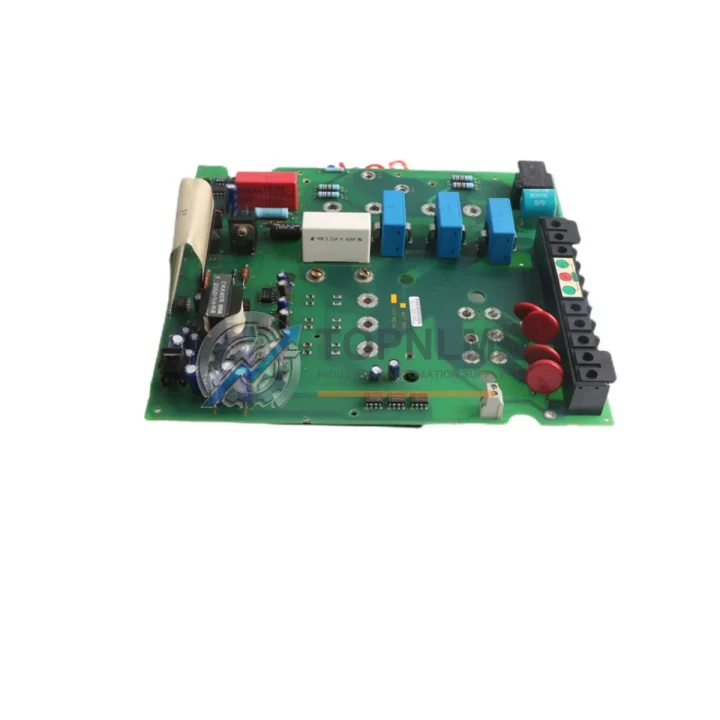

The Allen-Bradley A74104-231-53 is a precision-engineered servo drive control board designed for the 1394 GMC Series motion control platform. Built to withstand the relentless demands of continuous production lines, heavy industry, and safety-critical infrastructure, this board delivers consistent, high-fidelity servo control even under extreme thermal cycling, mechanical vibration, electromagnetic interference (EMI), and high-humidity conditions. For facilities where downtime is not an option — oil refineries, mining operations, steel mills, water treatment plants, and power generation sites — the A74104-231-53 represents a proven, field-hardened solution that keeps motion axes synchronized and production moving.

As a core component of the Rockwell Automation 1394 GMC (General Motion Controller) architecture, this control board manages the closed-loop servo feedback, axis coordination, and drive command signals that are fundamental to precision motion in multi-axis systems. Its robust PCB construction, conformal coating tolerance, and industrial-grade component selection make it a reliable backbone for servo systems operating in environments where standard commercial electronics would fail prematurely.

Rugged Specifications Table

Comprehensive Protection Solutions

The A74104-231-53 does not operate in isolation — it is the nerve center of a broader motion control ecosystem. In a typical 1394 GMC installation, this control board interfaces directly with the 1394-AM75 axis module and 1394-SJT servo drive chassis, coordinating torque and velocity commands across multiple servo axes simultaneously. When paired with Allen-Bradley 1756-L series ControlLogix PLCs, the system achieves deterministic motion control with millisecond-level synchronization, critical for applications such as CNC machining centers, robotic welding lines, and high-speed packaging equipment.

In control cabinet environments, the A74104-231-53 works alongside 1756-IB16 digital input modules and 1756-OB16 digital output modules to receive and transmit discrete signals from field sensors, limit switches, and safety interlocks. The 1756-EN2T EtherNet/IP communication module provides the high-speed network backbone that links the motion controller to supervisory SCADA systems, enabling real-time diagnostics and remote parameter adjustment without interrupting production.

For power conditioning and protection, the 1394 GMC system typically relies on Allen-Bradley 1606-XLP industrial power supplies to deliver clean, regulated DC bus voltage to the control electronics. Surge events, voltage sags, and harmonic distortion — common in heavy industrial environments — are mitigated upstream by line reactors and EMI filters, ensuring the A74104-231-53 receives stable power and maintains servo loop integrity. In facilities with variable-frequency drives (VFDs) such as the PowerFlex 700 or PowerFlex 40 series operating on the same electrical bus, proper grounding and shielding practices are essential to prevent cross-interference with the servo control signals managed by this board.

Safety architecture integration is equally important. The A74104-231-53 is commonly deployed alongside Allen-Bradley 440R GuardMaster safety relays and 1791DS-IB4XOB4 CompactBlock Guard I/O modules, which enforce SIL 2 / PLd safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1) on the servo axes. Terminal blocks from the 1492 series provide reliable field wiring termination within the control cabinet, while 1756-DHRIO communication modules bridge legacy DH+ networks to modern EtherNet/IP architectures in brownfield upgrade projects.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the A74104-231-53 is deployed in wellhead pump jack controllers, pipeline compressor drive systems, and offshore platform motion control panels. The board’s tolerance for wide temperature swings and its resistance to hydrocarbon-laden, corrosive atmospheres — when housed in appropriately rated NEMA 4X or IP66 enclosures — make it a dependable choice for Zone 2 hazardous area installations where servo precision directly impacts process safety.

In underground and open-pit mining, conveyor drive systems, longwall shearer controls, and ore crusher positioning systems rely on the 1394 GMC platform for coordinated multi-axis motion. The A74104-231-53 sustains reliable operation despite the constant mechanical shock, coal dust ingress, and high-voltage switching transients that characterize these environments. Replacement of a failed control board with a tested A74104-231-53 unit can restore a conveyor system to full operation within hours, avoiding the multi-day delays associated with OEM factory repair cycles.

Power generation facilities — including thermal, hydroelectric, and wind energy plants — use 1394 GMC-based servo systems for turbine blade pitch control, generator excitation positioning, and valve actuator drives. The precision and repeatability delivered by the A74104-231-53 are essential for maintaining grid synchronization and meeting regulatory efficiency targets. Water treatment and desalination plants similarly depend on servo-controlled pump and valve systems to maintain precise flow rates and chemical dosing accuracy, where the A74104-231-53 provides the motion control reliability that underpins continuous, unattended operation.

In metallurgical and steel mill environments, rolling mill gap control, continuous casting mold oscillation, and ladle transfer car positioning are among the most demanding servo applications. The A74104-231-53 handles the high-cycle, high-load duty cycles of these processes while maintaining the positional accuracy required for consistent product quality and yield.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All A74104-231-53 units supplied by TOPNLMS carry a 12-month quality warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Warranty claims are processed via email at [email protected] with proof of purchase and a fault description.

Q2: What pre-shipment testing is performed on each unit?
Every A74104-231-53 board undergoes a multi-stage inspection and functional test protocol before dispatch. This includes visual inspection for physical damage, power-on continuity testing, and where applicable, dynamic functional verification against known-good reference units. Test records are retained and can be provided upon request for quality-critical procurement processes.

Q3: Is the A74104-231-53 compatible with all 1394 GMC Series drive chassis?
The A74104-231-53 is designed as a direct replacement control board for the Allen-Bradley 1394 GMC Series platform. It is compatible with standard 1394 GMC chassis configurations including single-axis and multi-axis variants. Buyers are advised to confirm their specific chassis revision and firmware version with TOPNLMS prior to ordering to ensure full compatibility. Our technical team can assist with cross-referencing and compatibility verification at no charge.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains dedicated inventory of Allen-Bradley 1394 GMC Series components, including the A74104-231-53, to support ongoing MRO (Maintenance, Repair & Operations) procurement programs. For facilities managing planned maintenance schedules or building strategic spare parts inventories, TOPNLMS can provide volume pricing, reserved stock agreements, and priority lead times. Contact our team at [email protected] or +86 18359293191 to discuss your supply requirements.
