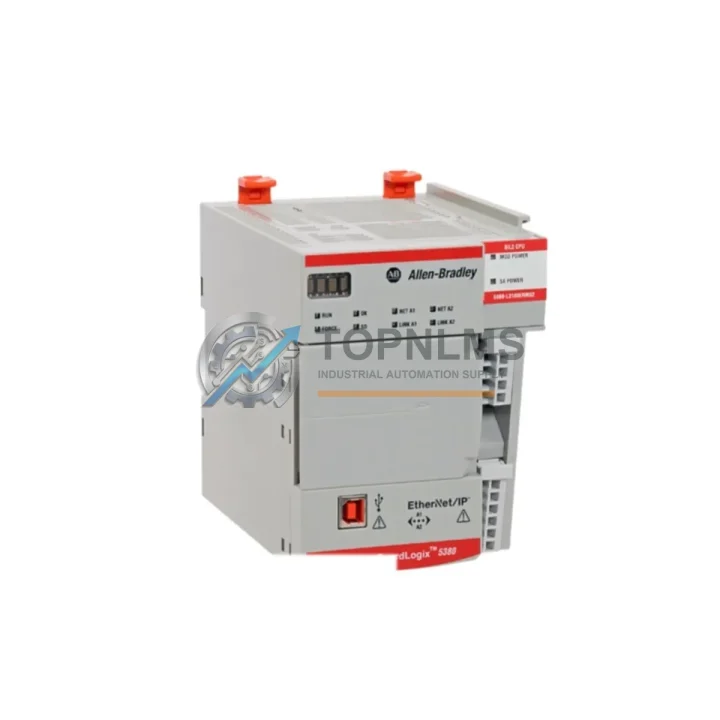

Allen-Bradley 5069-L3100ERMS2 Safety PAC Upgrade Solution

Product Overview

Allen-Bradley 5069-L3100ERMS2 Safety PAC Upgrade Solution: Seamless Transition from Legacy Safety Systems

The Allen-Bradley 5069-L3100ERMS2 is a high-performance Integrated Safety Controller within the CompactLogix 5380 platform, engineered by Rockwell Automation to deliver IEC 61508 SIL 2-certified safety logic alongside standard motion and process control in a single compact chassis. For facilities currently operating legacy GuardLogix 5570 (1756-L7xS series), older CompactLogix 5370 L3 controllers, or discontinued Safety PLC models such as the 1756-LSP or SmartGuard 600, the 5069-L3100ERMS2 represents the most direct and validated migration path — preserving existing safety program structures, I/O wiring topologies, and EtherNet/IP network architecture while delivering a substantial leap in processing throughput and diagnostic capability.

Migration projects involving the 5069-L3100ERMS2 typically originate from one of three scenarios: end-of-life notification on a GuardLogix 5570 or CompactLogix 5370 controller, a plant-wide safety system audit requiring SIL 2 re-certification, or a capacity expansion that demands higher task execution rates and additional I/O density. In all three cases, the 5069-L3100ERMS2 provides a technically sound and commercially practical answer.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 5069-L3100ERMS2 rarely involves the controller alone. In practice, the upgrade is part of a broader system modernization that touches multiple layers of the control architecture. The most common companion components encountered during field retrofits include the following.

On the local I/O bus, engineers typically retain or replace existing 5069 Compact I/O modules — digital safety input modules such as the 5069-IB16S and digital safety output modules such as the 5069-OBV8S are directly compatible with the 5380 backplane and require no re-wiring when migrating from a lower-tier 5380 controller. Where the legacy system used 1769 Compact I/O modules (common in 5370 migrations), an adapter bridge or a full I/O module swap to the 5069 series is required; this is the most labor-intensive aspect of the migration and should be scoped carefully during the pre-engineering phase.

Power supply selection is critical. The 5069-PA4 (120/240 VAC input) and 5069-PB4 (24 VDC input) are the recommended power supplies for the 5380 platform. If the existing panel uses a 5069-PA2 or 5069-PB2 (2A models), upgrading to the 4A variant is strongly advised when the 5069-L3100ERMS2 is installed, given its higher backplane current draw at full I/O density.

For distributed safety I/O over EtherNet/IP, the 5069-L3100ERMS2 natively supports CIP Safety connections to remote safety I/O adapters such as the 1734-AENTR (POINT I/O EtherNet/IP adapter) and the 1732E series ArmorBlock Guard I/O modules. These remote nodes can remain in place during migration with no protocol changes, significantly reducing rewiring scope on the plant floor.

Communication infrastructure should also be reviewed. If the existing network uses a linear EtherNet/IP topology, the dual-port DLR (Device Level Ring) capability of the 5069-L3100ERMS2 enables a ring topology upgrade using the same cable runs, improving network fault tolerance without additional managed switches. Where PROFIBUS DP or DeviceNet legacy devices remain in the field, a 1788-EN2DN (DeviceNet Scanner) or a third-party PROFIBUS-to-EtherNet/IP gateway can bridge the protocol gap without replacing field instruments.

HMI integration is typically handled through PanelView Plus 7 terminals or FactoryTalk View SE clients, both of which communicate natively with the 5069-L3100ERMS2 via EtherNet/IP tag browsing. No driver changes are required if the existing HMI project was built against a CompactLogix or GuardLogix controller on the same Studio 5000 platform.

Finally, programming and commissioning require a licensed copy of Studio 5000 Logix Designer v32 or later. For sites performing the migration in-house, a 5069-USBC programming cable (USB Type-C to USB Type-A) is used for initial configuration and firmware updates before the controller is placed on the EtherNet/IP network.

Retrofit Guidance FAQ

Q: Can I reuse existing 5069 Compact I/O wiring when replacing a 5069-L306ERS2 or L320ERS2 with the 5069-L3100ERMS2?
A: Yes. All 5069 Compact I/O modules — including safety variants — are backplane-compatible across the 5380 controller family. Terminal wiring, module placement, and I/O addressing remain unchanged. Only the controller firmware and Studio 5000 project file require updating.

Q: Is the safety program from a GuardLogix 5570 (1756-L7xS) directly importable into the 5069-L3100ERMS2?
A: Not directly. GuardLogix 5570 projects use a dual-controller architecture (standard + safety partner). The 5069-L3100ERMS2 uses an integrated single-controller safety model. Rockwell Automation’s migration guide recommends using the Import/Export function in Studio 5000 to transfer safety routines, then re-validating all safety function blocks and SIL claims. Budget for a full safety validation cycle.

Q: What communication protocols does the 5069-L3100ERMS2 support for legacy field devices?
A: The controller natively supports EtherNet/IP (including CIP Safety and CIP Motion). Legacy protocols such as DeviceNet, ControlNet, and PROFIBUS DP require gateway modules or scanner cards. The 1788-EN2DN and 1788-CN2DN modules are commonly used for DeviceNet and ControlNet bridging respectively.

Q: Will the 5069-L3100ERMS2 fit in the same DIN-rail space as the controller it replaces?
A: The 5380 controller module itself is compact, but the overall panel footprint depends on the number of 5069 I/O modules and the power supply selected. If migrating from a 1769-based system, additional DIN-rail space will be required for the 5069 backplane segments. A panel layout review is recommended before ordering.

Q: How long does a typical firmware update and commissioning cycle take on-site?
A: For a like-for-like 5380 controller swap (e.g., L306ERS2 to L3100ERMS2), experienced engineers typically complete firmware load, project download, I/O verification, and safety function test within a 4–8 hour maintenance window. Cross-platform migrations (5370 or 5570 to 5380) should be planned for a full planned shutdown of 1–3 days depending on I/O count and safety validation requirements.

Warranty Assurance

Every 5069-L3100ERMS2 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination, firmware version verification, communication port functional test, and packaging integrity check. Units are shipped in anti-static protective packaging with appropriate cushioning for international freight.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides a replacement unit or full refund at the buyer’s discretion. Our technical support team responds to warranty claims and pre-sales compatibility inquiries within 1 business day. For urgent production-down situations, expedited shipping options are available from our Xiamen warehouse to most destinations in Asia, Europe, and the Americas.

We maintain stock of the 5069-L3100ERMS2 and related CompactLogix 5380 components to support rapid order fulfillment. Lead times for in-stock units are typically 3–7 business days for international shipments. All units are sourced through verified supply channels and are accompanied by documentation supporting authenticity verification.

For procurement inquiries, compatibility confirmation, or bulk order pricing, contact our team directly before placing your order. We are equipped to support engineering teams through the full migration lifecycle — from pre-sales BOM review to post-installation technical support.
