Allen-Bradley 1772-LX Ruggedized PLC Processor for Harsh Environments

Product Overview

Allen-Bradley 1772-LX Ruggedized PLC Processor for Harsh Environments

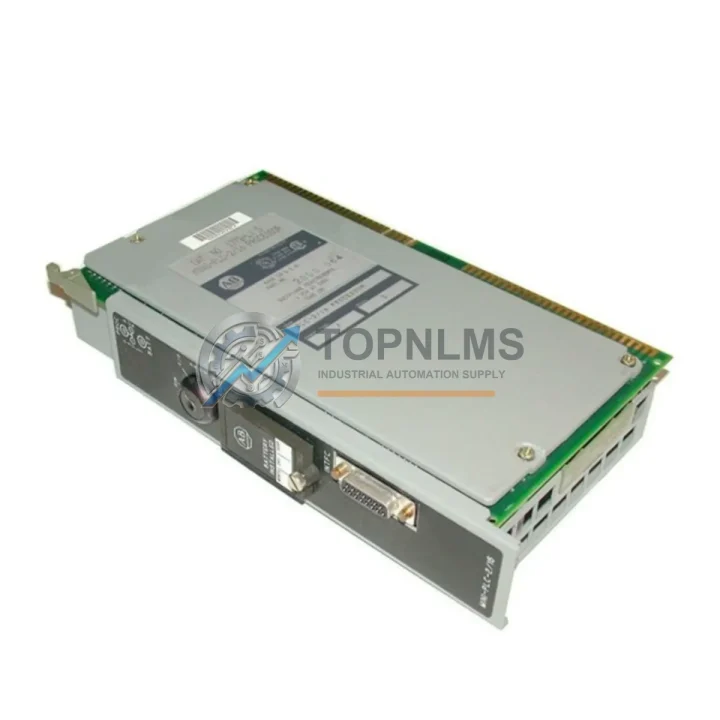

The Allen-Bradley 1772-LX is the central processor unit of the Mini PLC-2/16 control system — a proven, field-hardened programmable logic controller designed to deliver uninterrupted performance in demanding industrial environments. Whether deployed in high-temperature foundries, dust-laden mining galleries, high-vibration press lines, or moisture-rich water treatment facilities, the 1772-LX processor has earned its reputation as a dependable backbone of legacy automation infrastructure. Its robust architecture supports continuous-duty operation across a wide range of harsh conditions, making it a critical spare part and replacement component for facilities that cannot afford unplanned downtime.

Built on Rockwell Automation’s Mini PLC-2 platform, the 1772-LX executes ladder logic programs with deterministic scan-cycle performance, ensuring that time-critical control sequences — such as safety interlocks, sequential machine control, and process regulation — are executed reliably even under electrical noise and power fluctuation conditions common in heavy industry. Its compact DIN-rail-compatible form factor integrates seamlessly into existing control cabinets alongside Allen-Bradley 1771 I/O modules, 1772-LXP extended memory units, and compatible 1772-SD or 1772-SD2 EEPROM storage modules, preserving the integrity of the original system architecture without requiring costly platform migrations.

In petrochemical and oil & gas facilities, where continuous process control is non-negotiable, the 1772-LX processor governs valve sequencing, pump control, and emergency shutdown logic in coordination with Allen-Bradley 1771-OBD output modules and 1771-IBD input modules. Its deterministic execution model ensures that safety-critical signals are processed within defined scan windows, supporting compliance with functional safety requirements in classified hazardous areas. Paired with a 1785-KA5 communication adapter or a 1770-KF2 DH+ interface module, the 1772-LX can participate in legacy Data Highway networks, enabling centralized SCADA supervision without disrupting existing field wiring.

In mining and mineral processing environments, where vibration, shock, and airborne particulates are constant threats to electronic equipment, the 1772-LX’s solid-state construction and conformal-coated circuit boards provide a meaningful layer of protection against premature failure. Facilities running conveyor systems, crusher controls, and hoisting machinery rely on the Mini PLC-2 platform for its simplicity and maintainability — qualities that reduce mean time to repair (MTTR) when a processor swap is required. Keeping a tested 1772-LX in inventory as a hot-spare eliminates the risk of extended production halts caused by obsolete-part lead times.

Power generation and electrical substation applications benefit from the 1772-LX’s tolerance for wide-range supply voltages and its immunity to the electromagnetic interference generated by high-voltage switching equipment. When integrated with Allen-Bradley 1771-P4S or 1771-P7 power supply modules, the processor maintains stable operation even during grid transients. Its compatibility with 1772-LXP memory expansion modules allows engineers to store larger ladder programs, supporting complex interlock logic for turbine control, transformer protection, and load-shedding automation.

Water and wastewater treatment plants operating 24/7 depend on the Mini PLC-2 platform to manage aeration blowers, chemical dosing pumps, and clarifier drives. The 1772-LX processor, when paired with 1771-IFE analog input modules and 1771-OFE analog output modules, provides closed-loop process control for flow, level, and pH regulation. Its long-established field record in these environments — often spanning decades of continuous service — underscores the value of maintaining genuine Allen-Bradley replacement units in the plant’s spare parts inventory.

For system integrators and maintenance engineers managing legacy Rockwell Automation installations, sourcing a verified, tested 1772-LX processor is often the fastest path to restoring production. At TOPNLMS, every 1772-LX unit undergoes functional verification prior to shipment, including power-on testing and communication interface checks. Units are shipped in anti-static protective packaging with full documentation support. Our inventory is maintained to support rapid dispatch, with most orders processed within one business day.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1772-LX processor does not operate in isolation — its reliability is amplified when paired with the right complementary components within the same control architecture. In a typical Mini PLC-2 control cabinet, the processor works in concert with Allen-Bradley 1771-IBD 24VDC input modules and 1771-OBD output modules to interface with field devices such as proximity sensors, solenoid valves, and motor starters. For analog process control loops, 1771-IFE and 1771-OFE analog I/O modules extend the processor’s capability to manage continuous variables like temperature, pressure, and flow.

Power integrity is maintained through Allen-Bradley 1771-P4S power supply modules, which provide regulated DC power to the I/O chassis and protect the processor from supply-side disturbances. In installations where communication with a supervisory system is required, the 1770-KF2 Data Highway interface module bridges the 1772-LX to a DH+ network, enabling integration with Allen-Bradley PanelView operator terminals and SCADA platforms. For memory-intensive applications, the 1772-LXP extended memory module pairs directly with the 1772-LX to increase program storage capacity without requiring a processor upgrade.

Safety-critical installations may also incorporate Allen-Bradley 1771-OW relay output modules for hardwired safety interlock circuits, ensuring that the processor’s logic commands are executed through mechanically isolated contacts that remain functional even under fault conditions. Program backup and retention are supported by 1772-SD and 1772-SD2 EEPROM storage modules, which preserve ladder logic across power cycles and simplify processor replacement procedures — a key advantage when performing emergency spare swaps in the field.

Application in Critical Infrastructure

The Allen-Bradley 1772-LX has a documented service history across some of the most demanding sectors of critical infrastructure. In upstream oil and gas operations, it controls wellhead automation panels, gas compression skids, and pipeline valve actuation systems where continuous availability is a safety and regulatory requirement. Offshore platform operators and onshore terminal managers alike rely on the Mini PLC-2 platform’s simplicity and the availability of genuine spare processors to maintain operational continuity.

In the metals and metallurgy sector, the 1772-LX governs rolling mill sequencing, furnace temperature control interlocks, and cooling bed automation — environments characterized by extreme heat, heavy vibration, and pervasive electromagnetic interference from large motor drives and induction heating equipment. Its proven tolerance for these conditions, combined with the availability of tested replacement units, makes it a preferred choice for maintenance engineers managing aging but productive production lines.

Municipal water authorities and industrial wastewater treatment operators deploy the 1772-LX in lift station controls, chemical feed systems, and filtration process automation. The processor’s straightforward ladder logic architecture reduces the skill barrier for field maintenance, enabling plant operators to perform basic troubleshooting and program inspection without specialized engineering support. In power generation facilities — including coal-fired plants, hydroelectric stations, and industrial co-generation systems — the 1772-LX manages auxiliary equipment controls, cooling water systems, and fuel handling conveyors, where its long-term parts availability is a decisive procurement factor.
