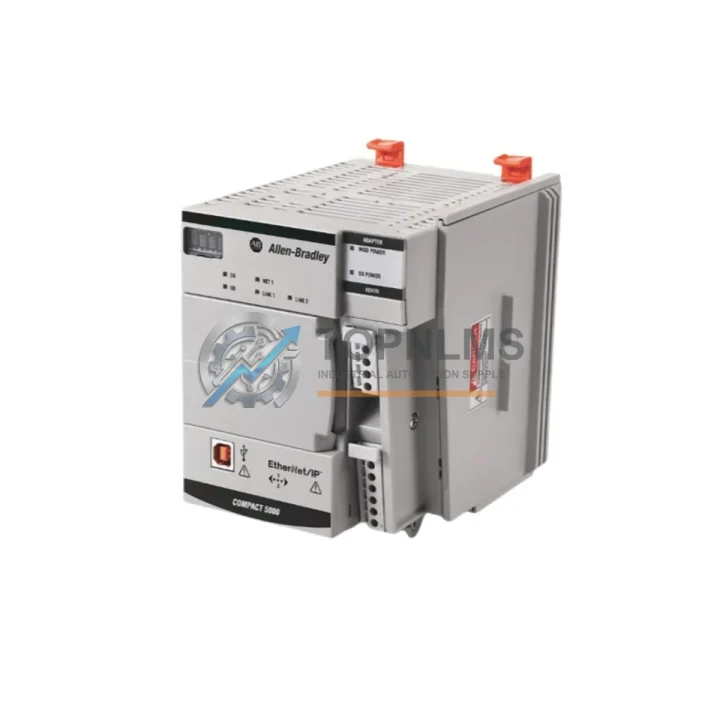

Allen-Bradley 5069-AEN2TR Replacement for CompactLogix 5069

Product Overview

Allen-Bradley 5069-AEN2TR Replacement for CompactLogix 5069: Seamless Migration & Upgrade Solution

When your Allen-Bradley 5069-AEN2TR CompactLogix EtherNet/IP Dual-Port Adapter reaches end-of-life, faces obsolescence, or fails unexpectedly on the production floor, unplanned downtime becomes your most costly operational risk. The 5069-AEN2TR is a critical communication bridge in Rockwell Automation’s CompactLogix 5069 platform, linking the controller backplane to your EtherNet/IP network topology. Sourcing a verified, tested replacement quickly — without compromising system integrity — is the priority that drives every procurement decision in industrial control system modernization.

TOPNLMS supplies the Allen-Bradley 5069-AEN2TR as a direct replacement and upgrade solution for engineers and maintenance teams managing CompactLogix 5069 control systems across manufacturing, oil & gas, water treatment, automotive assembly, and process automation environments. Every unit is inspected, function-tested, and shipped with full documentation to support your retrofit or emergency replacement project.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from an aging CompactLogix 5370 or ControlLogix 1756 architecture to the CompactLogix 5069 platform involves more than swapping the adapter module. The 5069-AEN2TR sits at the heart of the communication layer, but the surrounding system components must be evaluated and, where necessary, upgraded in parallel to ensure a smooth cutover with minimal production interruption.

Starting with the controller itself, the 5069-L306ER or 5069-L310ER CompactLogix 5380 controller is the natural host for the 5069-AEN2TR adapter. If your existing system runs a 1769-L33ER or 1769-L36ERM, the migration path requires re-mapping I/O tags and updating the Studio 5000 project to the 5069 chassis configuration — a process that is well-documented in Rockwell’s migration guides and typically completed within a planned maintenance window.

On the I/O side, the 5069 Compact I/O family — including digital input modules such as the 5069-IB16 and digital output modules such as the 5069-OB16 — connects directly to the same backplane as the 5069-AEN2TR. If your legacy system used 1769 Compact I/O modules like the 1769-IQ16 or 1769-OW16, physical wiring to the field devices can often be preserved by using the same terminal block wiring conventions, significantly reducing rewiring labor during the retrofit.

Power supply selection is equally critical. The 5069-PA4 (120/240 VAC input) or 5069-PB4 (24 VDC input) power supply modules are designed to support the 5069 system rail, including the 5069-AEN2TR adapter’s backplane power draw. Verifying the total system power budget before commissioning prevents nuisance faults and ensures stable operation under full I/O load.

For facilities that rely on Device Level Ring topology to achieve network redundancy — common in automotive body shops and continuous process lines — the 5069-AEN2TR’s dual-port DLR capability eliminates the need for an external managed switch at the device level. This is a significant architectural advantage over single-port predecessors like the 1769-AENTR when ring redundancy is a site requirement.

Communication infrastructure between the 5069 system and upstream SCADA or DCS platforms typically passes through a managed EtherNet/IP switch. If your control cabinet currently houses a Stratix 5700 or Stratix 2000 series switch, these remain fully compatible with the 5069-AEN2TR’s EtherNet/IP traffic and require no firmware changes for standard adapter discovery and I/O messaging.

Programming and commissioning the 5069-AEN2TR requires a PC running Studio 5000 Logix Designer v30 or later, connected via a 1784-U2DHP USB-to-DH+ programming cable or directly over Ethernet using RSLinx Classic or FactoryTalk Linx. If your maintenance team currently uses a 1747-UIC or 1784-PCMK for legacy SLC or PLC-5 programming, note that the 5069 platform is Ethernet-native and does not require serial or DH+ programming interfaces — simplifying the toolchain for new installations.

For applications where signal isolation between field devices and the control backplane is required — particularly in high-noise environments such as variable frequency drive (VFD) panels or welding cells — pairing the 5069-AEN2TR with signal isolators or surge protection modules on analog I/O channels is recommended practice. This protects the adapter’s communication integrity and extends the service life of the entire 5069 system in electrically harsh environments.

Retrofit Guidance FAQ

Q: Can the 5069-AEN2TR replace a 1769-AENTR in an existing CompactLogix 5370 system?
A: No — the 5069-AEN2TR is designed exclusively for the 5069 Compact I/O backplane and is not physically or electrically compatible with the 1769 backplane. A platform migration to the 5069 chassis is required. However, field wiring to terminal blocks can often be reused, and Studio 5000 project conversion tools can accelerate the tag re-mapping process.

Q: Does the 5069-AEN2TR support Device Level Ring (DLR) topology?
A: Yes. The dual-port design supports DLR, linear, and star topologies natively. No additional hardware or licensing is required to enable DLR — it is configured directly within Studio 5000 Logix Designer.

Q: What firmware version is required on the host controller?
A: The 5069-AEN2TR requires Studio 5000 Logix Designer v30.011 or later on the host 5069 CompactLogix controller. Ensure your controller firmware is updated before adding the adapter to the I/O tree to avoid compatibility faults.

Q: How is the IP address assigned during commissioning?
A: The 5069-AEN2TR supports BOOTP, DHCP, and static IP assignment. For initial commissioning, Rockwell’s BOOTP/DHCP Server utility (included with Studio 5000) is the recommended method. Static IP can be locked via the module properties in the Studio 5000 project after initial configuration.

Q: Will existing EtherNet/IP I/O connections from upstream controllers need to be reconfigured?
A: Yes. When migrating from a 1769 or 1756 platform, the I/O connection paths in the upstream controller’s Studio 5000 project must be updated to reference the new 5069 module path and slot assignments. Connection parameters (RPI, connection type, unicast/multicast) should be reviewed and validated during the Factory Acceptance Test (FAT) before site installation.

Q: What are the physical space requirements in the control cabinet?
A: The 5069-AEN2TR occupies one slot on the 5069 Compact I/O system rail. The 5069 system uses a compact DIN-rail mounted architecture, typically requiring less panel space than equivalent 1756 ControlLogix chassis configurations. Verify available rail length and power supply capacity before finalizing the cabinet layout.

Warranty Assurance

Every Allen-Bradley 5069-AEN2TR supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes functional verification of both EtherNet/IP ports, backplane connector integrity check, firmware version confirmation, and visual inspection for physical damage. Units that do not pass inspection are not shipped.

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund — your choice. Our after-sales response target is within 24 hours of fault notification, with replacement dispatch within 3 business days for stocked items.

For procurement teams requiring documentation, we can provide test reports, product datasheets, and shipping records upon request. All units are shipped with appropriate ESD-protective packaging and clearly labeled with part number, serial reference, and inspection status.

Stock is maintained in Xiamen, China, with express international shipping options available to support urgent replacement requirements globally. Lead times for in-stock units are typically 3–7 business days to most destinations.
