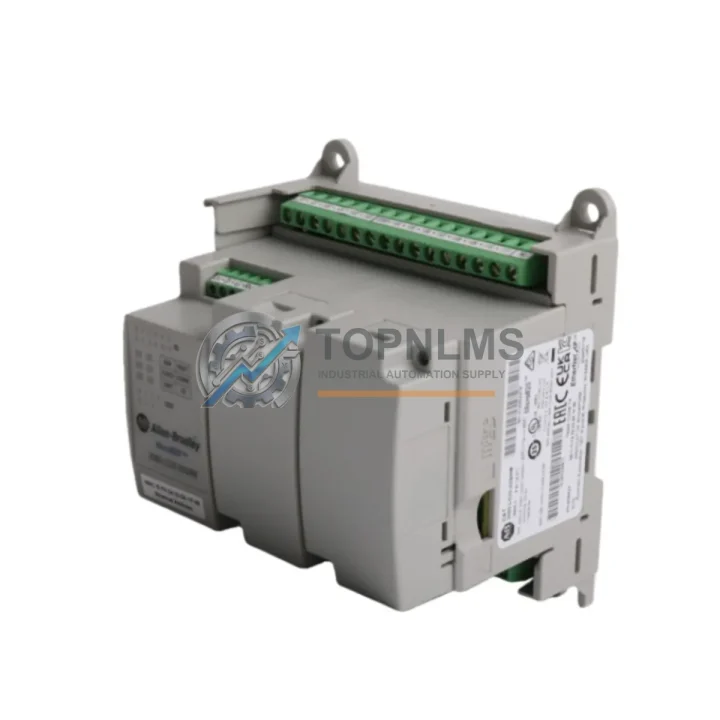

Allen-Bradley 2080-LC20-20QWB Micro820 Upgrade Solution

Product Overview

Allen-Bradley 2080-LC20-20QWB Micro820 Upgrade Solution: Seamless Transition from Legacy PLC Systems

The Allen-Bradley 2080-LC20-20QWB is a 20-point DC controller from Rockwell Automation’s Micro820 series — a compact, cost-effective programmable logic controller widely deployed in standalone machine control, HVAC systems, building automation, and light manufacturing lines. As aging Micro820 units approach end-of-service or become difficult to source through standard distribution channels, facilities engineers and procurement teams face increasing pressure to maintain uptime without committing to a full control system redesign.

TOPNLMS supplies the 2080-LC20-20QWB as a verified replacement and upgrade solution for customers migrating from earlier Micro800 variants, discontinued SLC 500 micro controllers, or legacy MicroLogix 1000/1100 platforms. Whether your application involves a single machine retrofit or a multi-site standardization program, this controller provides a reliable, spec-matched path forward with minimal disruption to existing wiring, programming, and cabinet layouts.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 2080-LC20-20QWB rarely involves the controller alone. In most retrofit scenarios, the surrounding system components must be evaluated and, where necessary, updated to ensure full compatibility and long-term reliability.

For customers replacing an earlier 2080-LC20-20QBB (relay output variant) with the 2080-LC20-20QWB transistor output model, the primary consideration is output circuit compatibility. Relay-driven loads such as solenoid valves, contactors, and indicator lamps may require interposing relays or solid-state relay modules when transitioning to transistor outputs. The 2080-OB8 digital output expansion module can supplement output capacity where additional relay-type switching is needed.

Communication architecture is another critical migration factor. Legacy systems built around MicroLogix 1100 or SLC 500 controllers often relied on DH-485 or RS-232 serial networks. The 2080-LC20-20QWB supports serial communication via the 2080-SERIALISOL isolated serial plug-in module, enabling integration with existing SCADA systems, HMI panels, or third-party drives without requiring a full network redesign. For Ethernet-connected applications, the 2080-ETHERM-MDNS Ethernet plug-in module extends the controller’s connectivity to EtherNet/IP networks, allowing seamless integration with Allen-Bradley PanelView Component HMI terminals and upstream ControlLogix or CompactLogix supervisory controllers.

Power supply compatibility should be confirmed early in the retrofit process. The 2080-LC20-20QWB requires a stable 24V DC supply. Existing cabinets running on 120V AC power rails will need a dedicated DC power supply — the 1606-XLP series power supplies are commonly specified alongside Micro820 controllers for their compact DIN-rail footprint and high efficiency ratings. Verifying the power budget across all installed I/O modules, plug-ins, and field devices is essential before commissioning.

For applications requiring analog signal handling, the 2080-IF4 analog input module and 2080-OF2 analog output module integrate directly with the Micro820 platform, supporting 4–20mA and 0–10V signals from field transmitters, pressure sensors, and variable frequency drives. If the legacy system included a PowerFlex 4M or PowerFlex 40 drive communicating over DeviceNet or RS-485 Modbus, the 2080-LC20-20QWB can maintain that communication link via the serial plug-in module with appropriate Modbus RTU configuration in CCW.

Backup and recovery planning is equally important. The 2080-MEMBAK-RTC memory backup and real-time clock plug-in module allows program backup to a removable memory card, significantly reducing recovery time in the event of a controller fault or replacement. This is particularly valuable for installations where the original program files may no longer be readily available from the legacy system.

For customers decommissioning older MicroLogix 1000 (1761-L20BWA) or MicroLogix 1100 controllers, the program migration path involves re-creating ladder logic in Connected Components Workbench. While direct program import from RSLogix Micro is not supported, the instruction set overlap between MicroLogix and Micro820 platforms is substantial, and most standard control routines — timers, counters, comparison, math, and communication blocks — translate with minimal rework. TOPNLMS recommends bench-testing the migrated program against the original I/O list before field installation to validate timing parameters and output sequencing.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing a 2080-LC20-20QBB with the 2080-LC20-20QWB?
A: Input wiring is directly compatible — both models share the same 24V DC sinking/sourcing input configuration. Output wiring requires review: the QBB uses relay outputs (dry contact), while the QWB uses transistor outputs (sourcing, 24V DC). Loads previously switched by relay contacts may need interposing relays if they require isolated or AC switching.

Q: Is the 2080-LC20-20QWB compatible with my existing Micro820 program?
A: Yes. Programs developed in Connected Components Workbench for other 2080-LC20 variants are generally compatible. Verify I/O mapping and plug-in module assignments match the new hardware configuration before downloading.

Q: What programming cable is required?
A: The 2080-LC20-20QWB uses a standard USB Type-B programming connection. No proprietary programming cable is required — a standard USB-A to USB-B cable connects directly to a PC running Connected Components Workbench (free from Rockwell Automation).

Q: Can this controller communicate with my existing HMI over serial?
A: Yes, with the 2080-SERIALISOL plug-in module installed. The controller supports DF1, Modbus RTU, and ASCII protocols over the serial port, enabling communication with most panel-mount HMI terminals and SCADA gateways currently in service.

Q: How much DIN rail space does the 2080-LC20-20QWB require?
A: The controller occupies approximately 130mm of DIN rail width. With two plug-in modules installed, allow an additional 20–30mm. Total cabinet depth requirement is approximately 150mm — compatible with most standard industrial enclosures.

Q: What is the recommended approach for migrating from a MicroLogix 1100?
A: Export the existing I/O list and control narrative from RSLogix Micro. Re-create the program in Connected Components Workbench using equivalent Micro820 instructions. Map physical I/O points to the new terminal layout. Conduct a full bench test before field installation. TOPNLMS can supply both the 2080-LC20-20QWB and associated plug-in modules to support a complete migration kit.

Warranty Assurance

Every 2080-LC20-20QWB supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on testing, I/O point continuity checks, and communication port validation. Units are shipped in original or equivalent protective packaging with full documentation.

In the event of a warranty claim, TOPNLMS provides direct replacement support with a target response time of 1–2 business days. Replacement units are dispatched from our Xiamen warehouse, with express shipping options available for time-critical applications. Our after-sales team supports customers through installation verification, fault diagnosis, and compatibility confirmation at no additional charge during the warranty period.

For procurement teams managing planned maintenance schedules or emergency replacement inventories, TOPNLMS offers stock reservation and priority fulfillment agreements. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements for high-demand SKUs.

All units are sourced through verified supply channels. Authenticity documentation is available upon request for quality-controlled procurement processes.
