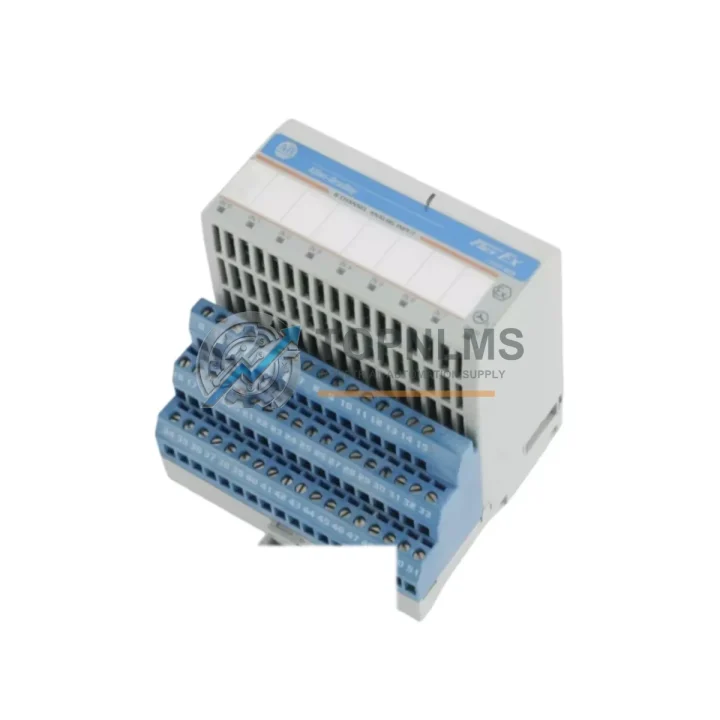

Allen-Bradley 1797-IE8H Ruggedized Analog Input Module

Product Overview

Allen-Bradley 1797-IE8H Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1797-IE8H is an 8-channel analog input module engineered for the FLEX Ex platform — Rockwell Automation’s intrinsically safe I/O system purpose-built for Zone 1 and Zone 2 hazardous locations. Designed to operate reliably in environments characterized by explosive atmospheres, high humidity, extreme temperature swings, persistent vibration, and intense electromagnetic interference, the 1797-IE8H delivers the signal integrity and fault tolerance that critical industrial processes demand. Whether deployed in an oil refinery, a chemical processing plant, a coal mine, or a water treatment facility, this module provides the measurement accuracy and environmental robustness that safety-critical automation systems require.

Unlike standard I/O modules, the 1797-IE8H carries ATEX and IECEx certifications for intrinsic safety, meaning it limits electrical energy to levels that cannot ignite flammable gases or dust — even under fault conditions. This makes it the preferred analog input solution for process engineers who cannot afford signal failures, nuisance trips, or unplanned downtime in continuous production environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1797-IE8H does not operate in isolation — it is a precision component within a broader intrinsically safe control architecture. In a typical FLEX Ex installation, the module mounts on a 1797-AENTR EtherNet/IP adapter base, which bridges the hazardous-area I/O to the safe-area control network. This adapter communicates upstream with Allen-Bradley ControlLogix or CompactLogix PLCs, where the 1756-L85E or 1769-L33ER processors execute the safety logic and process the analog signals delivered by the 1797-IE8H.

On the output side, the 1797-IE8H works in tandem with the 1797-OE8H analog output module, enabling closed-loop control of field devices such as control valves, variable frequency drives (VFDs), and positioners — all within the same intrinsically safe zone. For digital field signals, the 1797-IB8 and 1797-OB8 discrete I/O modules complement the analog channels, providing a complete I/O solution within a single FLEX Ex rack.

Power integrity in hazardous areas is maintained through the 1797-PS1 FLEX Ex power supply, which provides the regulated, intrinsically safe bus voltage required by all 1797-series modules. In installations where the control cabinet also houses safe-area equipment, the Allen-Bradley 1606-XLP series industrial power supplies deliver the 24 VDC rail that feeds the adapter and communication infrastructure.

Communication reliability is further reinforced by the 1797-AENTR’s EtherNet/IP connectivity, which integrates seamlessly with Rockwell’s Studio 5000 Logix Designer environment. For legacy installations using ControlNet, the 1797-ACN15 adapter provides an alternative backplane interface, ensuring backward compatibility with existing 1797-series deployments. Safety relay modules such as the Allen-Bradley 440R-N23132 can be integrated into the same control cabinet to provide SIL-rated emergency stop and safety gate monitoring functions, complementing the analog measurement capabilities of the 1797-IE8H.

Terminal modules and marshalling components — including Phoenix Contact or Weidmüller DIN-rail terminal blocks rated for hazardous-area wiring — are commonly used alongside the 1797-IE8H to organize field wiring, provide surge protection, and simplify maintenance access in the junction box or control cabinet.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1797-IE8H is deployed in wellhead control panels and separator skids where flammable hydrocarbon vapors are continuously present. It monitors pressure transmitters, temperature sensors, and flow meters in real time, feeding process data to the ControlLogix safety PLC that governs emergency shutdown (ESD) sequences. Its intrinsic safety barrier eliminates the need for separate Zener barriers or galvanic isolators in many installations, reducing panel footprint and wiring complexity.

In coal mining and mineral processing, the module operates in environments with explosive coal dust (Zone 21/22) and high mechanical vibration from crushers and conveyors. Its vibration-rated design and sealed electronics ensure continuous signal acquisition from belt-scale load cells, slurry density transmitters, and motor current sensors — data that is critical for preventing overloads and protecting conveyor drive systems.

In chemical and petrochemical plants, the 1797-IE8H monitors reactor temperature profiles, column pressure differentials, and feed flow rates in areas classified as ATEX Zone 1. Its 16-bit resolution ensures that small process deviations are detected early, enabling the DCS or PLC to make precise control corrections before conditions escalate to a safety event.

In power generation and water treatment, the module provides reliable analog input for turbine inlet temperature monitoring, pump discharge pressure measurement, and chemical dosing flow control. Its wide operating temperature range and humidity tolerance make it suitable for outdoor substations and open-process water facilities where environmental conditions are unpredictable.

In metallurgical and steel production environments, where electromagnetic interference from large induction furnaces and arc welders is severe, the 1797-IE8H’s EMC-hardened design maintains signal integrity across all eight channels simultaneously — a critical requirement for continuous casting and rolling mill automation.

Security & Quality FAQ

Q1: What warranty does the 1797-IE8H carry, and what does it cover?
Every 1797-IE8H shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing including channel-by-channel signal integrity checks, backplane communication validation, and visual inspection for physical damage. A test report and quality certificate are available upon request.

Q2: Is this module compatible with my existing ControlLogix or CompactLogix system?
The 1797-IE8H is compatible with any Rockwell Automation controller that supports the FLEX Ex I/O platform via an appropriate adapter — including the 1797-AENTR (EtherNet/IP) and 1797-ACN15 (ControlNet). It is fully supported in Studio 5000 Logix Designer and RSLogix 5000 environments. If you are integrating into an existing 1797-series rack, the module is a direct drop-in replacement for any failed or end-of-life 1797-IE8H unit.

Q3: Can this module be used in ATEX Zone 1 hazardous areas without additional safety barriers?
Yes. The 1797-IE8H is certified for intrinsic safety (Ex ia) and is designed to be connected directly to field instruments in Zone 0, Zone 1, and Zone 2 hazardous areas (gas groups IIC, IIB, IIA) when installed in accordance with the applicable ATEX/IECEx installation standards and the Rockwell Automation installation instructions. Always verify the entity parameters (Ui, Ii, Pi, Ci, Li) of connected field instruments against the module’s certified parameters before installation.

Q4: What is your lead time and long-term supply availability for the 1797-IE8H?
We maintain stock of the 1797-IE8H and other FLEX Ex series modules to support urgent spare-parts requirements and planned maintenance shutdowns. Standard orders ship within 1–3 business days from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available. For long-term supply agreements or bulk procurement, contact our team to discuss pricing, lead time guarantees, and consignment stock arrangements.
