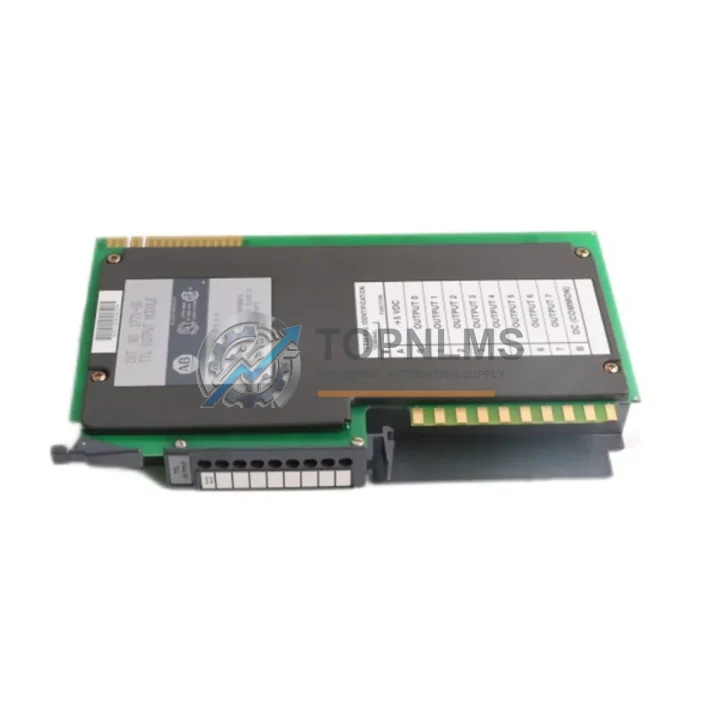

Allen-Bradley 1771-OG Ruggedized Digital Output Module

Product Overview

Allen-Bradley 1771-OG Ruggedized Digital Output Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1771-OG is an 8-point TTL-compatible digital output module engineered for the PLC-5 I/O chassis platform — one of the most proven and widely deployed programmable logic controller architectures in heavy industry. Designed to operate reliably under the demanding conditions found in continuous production lines, hazardous process areas, and mission-critical infrastructure, the 1771-OG delivers consistent, low-latency digital output switching even where temperature extremes, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference would compromise lesser components.

In industrial environments where uptime is non-negotiable — oil and gas processing facilities, underground mining operations, high-voltage power generation plants, municipal water treatment systems, steel and aluminum smelting lines, and chemical manufacturing complexes — the 1771-OG has earned its reputation as a dependable backbone of the control architecture. Its TTL-level output compatibility ensures seamless integration with solid-state field devices, relay driver circuits, and downstream actuator interfaces without signal degradation across extended cable runs.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1771-OG does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical PLC-5 control cabinet, the 1771-OG digital output module works in concert with the 1771-IA or 1771-IB digital input modules to form a complete discrete I/O subsystem. The 1771-OW relay output module is frequently deployed alongside the 1771-OG where higher-current switching or voltage isolation is required, providing a complementary output strategy within the same 1771 chassis.

For analog process control loops — common in temperature regulation, pressure management, and flow control — the 1771-OFE1 or 1771-OFE2 analog output modules share the same chassis backplane, allowing the PLC-5 processor to manage both discrete and continuous control from a unified platform. The 1771-ASB remote I/O adapter module extends the 1771 I/O system across the plant floor via Allen-Bradley Remote I/O (RIO) protocol, enabling distributed control architectures where the 1771-OG can be located close to field devices while the PLC-5 processor remains in a protected central control room.

Power integrity is critical in harsh environments. The 1771-P4S or 1771-P7 I/O chassis power supplies provide the regulated 5 VDC and 24 VDC rails that the 1771-OG and its companion modules depend on. Surge events, brownouts, and power line noise — common in heavy industrial facilities with large motor drives and variable frequency drives (VFDs) operating nearby — are mitigated by the robust power supply design of the 1771 chassis ecosystem. For communication-layer resilience, the 1785-L80E or 1785-L60L PLC-5 processors with integrated Ethernet or Data Highway Plus (DH+) ports maintain supervisory connectivity even under high electromagnetic load conditions typical of arc furnace environments or high-voltage switchgear rooms.

Safety relay modules and hardwired emergency stop circuits are often integrated into the same control cabinet, with the 1771-OG providing the digital command outputs that interface with safety-rated contactors and motor protection relays. Terminal block assemblies and wiring duct systems within the 1771 chassis cabinet ensure that field wiring to the 1771-OG’s output terminals is organized, labeled, and protected against accidental contact — a critical consideration in facilities operating under IEC 62061 or ISO 13849 machinery safety standards.

Application in Critical Infrastructure

In upstream oil and gas operations, the Allen-Bradley 1771-OG controls discrete outputs for wellhead valve actuators, pump motor starters, and flare ignition systems. Its TTL output compatibility allows direct interfacing with solid-state relay (SSR) banks that switch high-voltage field loads while maintaining galvanic isolation from the control logic — a fundamental safety requirement in classified hazardous areas (Zone 1 / Division 1).

In underground coal and hard-rock mining, the 1771-OG drives conveyor belt control outputs, ventilation fan commands, and emergency stop relay coils. The module’s tolerance for vibration and its robust backplane connection within the 1771 chassis make it suitable for deployment in surface control houses adjacent to high-vibration crushing and screening equipment.

Municipal water treatment and wastewater management facilities rely on the PLC-5 platform — and by extension the 1771-OG — to control pump station outputs, chlorination dosing system actuators, and UV disinfection system enable signals. The module’s reliable operation across the full industrial temperature range ensures consistent performance in outdoor pump station enclosures subject to seasonal temperature swings.

In electric power generation and transmission substations, the 1771-OG provides digital output control for breaker trip/close commands, transformer tap changer control, and alarm annunciator outputs. The module’s EMI resilience is particularly valued in high-voltage switchyards where radiated electromagnetic fields from bus bars and disconnect switches can induce noise on control wiring.

Metallurgical and steel production facilities — including continuous casting lines, rolling mills, and electric arc furnaces — subject control hardware to extreme thermal cycling, heavy vibration, and intense electromagnetic interference from high-current induction heating systems. The 1771-OG’s proven field reliability in these environments has made it a long-term standard component in legacy PLC-5 control systems that continue to operate decades after initial commissioning.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Allen-Bradley 1771-OG?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified digital output switching function within the warranty period due to a component or workmanship defect, we will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated specifications, or physical mishandling.

Q2: How is each 1771-OG module tested before shipment?
Every Allen-Bradley 1771-OG unit undergoes functional verification testing prior to dispatch. This includes point-by-point output channel activation testing, backplane connector integrity inspection, and visual examination for physical damage. Units that do not pass functional testing are quarantined and not shipped. A test report is available upon request for customers with documented quality assurance requirements.

Q3: Is the 1771-OG compatible with all PLC-5 processor families and 1771 chassis sizes?
Yes. The 1771-OG is compatible with all standard 1771 I/O chassis configurations, including the 1771-A1B (4-slot), 1771-A2B (8-slot), 1771-A3B1 (12-slot), and 1771-A4B (16-slot) chassis. It operates with all PLC-5 processor variants including the 5/10, 5/12, 5/15, 5/20, 5/25, 5/30, 5/40, 5/60, and 5/80 families. Customers replacing a failed 1771-OG in an existing installation can install the replacement module without any processor configuration changes, provided the I/O chassis slot assignment remains the same.

Q4: Can you support long-term or repeat procurement of the 1771-OG for ongoing maintenance programs?
Absolutely. We maintain dedicated stock of the Allen-Bradley 1771-OG and other PLC-5 series I/O modules to support planned maintenance, emergency breakdown replacement, and annual spare parts procurement programs. For facilities managing large installed bases of PLC-5 systems, we offer priority allocation agreements and advance notification of stock availability. Contact our technical sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements tailored to your maintenance schedule.
