Allen-Bradley 1794-TB3 Original Industrial Spare FLEX I/O Compatible

Product Overview

Allen-Bradley 1794-TB3 Original Industrial Spare FLEX I/O Compatible: System Stability and Industrial Spare Parts Maintenance Value

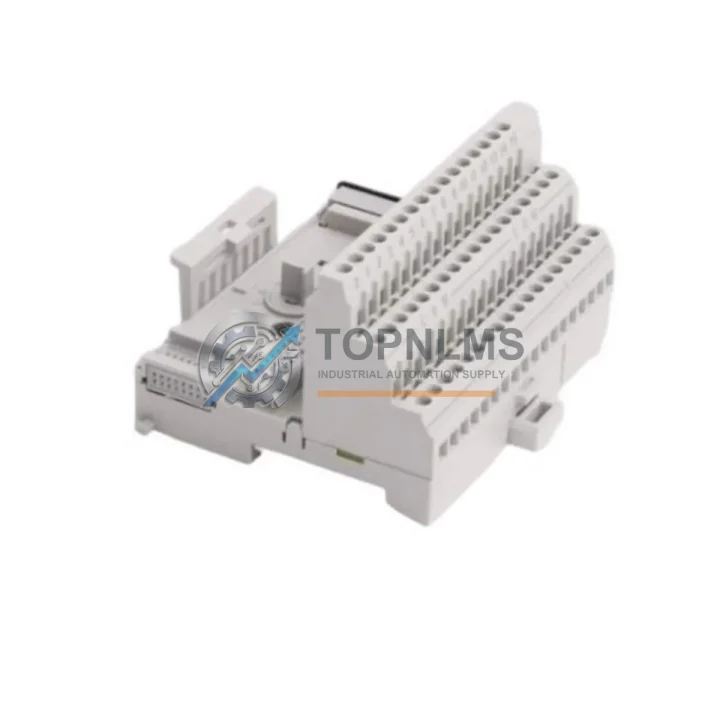

The Allen-Bradley 1794-TB3 FLEX I/O Relay Terminal Base Unit is a mission-critical spare part for any facility running Rockwell Automation FLEX I/O control architectures. In modern manufacturing environments — from automotive assembly lines to food and beverage processing, chemical plants, and discrete parts manufacturing — the 1794-TB3 serves as the foundational wiring interface between field-side relay output modules and the plant’s control wiring infrastructure. When this component fails or degrades, the entire I/O node it supports goes offline, triggering unplanned downtime that can cost thousands of dollars per hour.

Stocking the 1794-TB3 as a verified original spare is one of the most cost-effective decisions a maintenance engineer or MRO procurement manager can make. With a direct drop-in replacement available on the shelf, technicians can restore system operation in minutes rather than waiting days or weeks for emergency procurement. This page provides complete technical specifications, a preventive maintenance strategy, and purchasing guidance to help you make a confident, informed decision.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your FLEX I/O System

The 1794-TB3 does not operate in isolation. It is one node in a broader FLEX I/O control cabinet ecosystem, and a disciplined preventive maintenance program must account for the interdependencies between the terminal base and the surrounding components. During scheduled shutdowns or routine cabinet inspections, maintenance teams should treat the 1794-TB3 replacement as an opportunity to audit the health of the entire I/O rack.

Begin with the 1794-AENT or 1794-ACNR15 FLEX I/O Adapter — the communication gateway that links your I/O modules to the ControlLogix or CompactLogix PLC backplane. Adapter firmware should be current, and the EtherNet/IP or ControlNet connection should be verified for packet loss and latency. A degraded adapter can mask I/O faults that appear to originate at the terminal base level.

Next, inspect the 1794-PS13 or 1794-PS3 FLEX I/O Power Supply. Terminal bases rely on stable 24 VDC bus power; voltage sags or ripple on the power rail can cause intermittent relay chatter or false fault indications that are often misdiagnosed as terminal base failures. Measure output voltage under load and replace the power supply if it falls outside the ±5% tolerance band.

While the cabinet is open, check the 1794-OW8 Relay Output Module that seats into the 1794-TB3. Relay contacts have a finite mechanical and electrical life cycle — typically 100,000 operations at rated load. If the module is approaching end-of-life based on operational hours or cycle counts, replace it together with the terminal base to avoid a second unplanned outage within months. Similarly, inspect any co-located 1794-IB16 or 1794-IA16 Digital Input Modules for signs of terminal corrosion or insulation breakdown on field wiring.

Field wiring integrity is equally important. Loose or corroded screw terminals on the 1794-TB3 are a leading cause of intermittent I/O faults. During inspection, torque all terminal screws to specification and look for discoloration that indicates overheating. If the cabinet serves a high-vibration environment such as a press or compressor room, consider upgrading to ferrule-terminated conductors to prevent strand migration over time. This is also the right moment to inspect terminal blocks and DIN rail end stops throughout the cabinet for mechanical integrity.

For facilities running mixed analog and digital I/O in the same FLEX I/O rack, verify that 1794-IF4I or 1794-OF4I Analog I/O Modules are properly isolated and that signal cables are routed away from power conductors. Signal interference at the analog module level can produce erratic process readings that cascade into unnecessary control system interventions. If your application involves communication-intensive nodes, also check the 1794-DNET DeviceNet Communication Module or equivalent fieldbus interface for connector wear and cable shield continuity.

Finally, review your spare parts inventory for the broader 1794 series. A well-structured MRO strategy for a FLEX I/O installation should include at minimum one spare 1794-TB3, one spare relay output module, one spare adapter, and one spare power supply per production line. This four-component kit covers the vast majority of field failure scenarios and allows maintenance teams to restore operation within a single shift rather than waiting on emergency freight.

Strategic Replacement Solutions: Reducing Downtime and Extending System Life

Many facilities operating Allen-Bradley FLEX I/O systems installed in the late 1990s and 2000s face a common challenge: the control architecture is stable and well-understood by the maintenance team, but original spare parts are increasingly difficult to source through standard distribution channels. The 1794-TB3 is a case in point — it is a mature product with a large installed base, and genuine original units are the only reliable path to maintaining system compatibility without re-engineering the I/O rack.

Substituting a non-original or counterfeit terminal base introduces risk at multiple levels. Dimensional tolerances on the module locking mechanism may differ, causing poor electrical contact with the relay output module. Terminal block pitch and screw thread specifications may not match, leading to field wiring errors during installation. Most critically, non-original parts carry no traceable quality history and no warranty, meaning a second failure can occur within weeks of the first replacement.

Sourcing a genuine 1794-TB3 from a verified industrial spare parts supplier eliminates these risks. Each unit shipped from TOPNLMS undergoes functional inspection and continuity verification before dispatch, is packaged in anti-static protective materials, and is covered by a 12-month warranty from the date of shipment. For facilities managing end-of-life FLEX I/O systems, this approach extends the operational life of the existing control architecture by years — deferring costly migration projects until they can be planned and budgeted properly rather than forced by an emergency failure.

For customers managing multiple production lines or facilities, TOPNLMS offers volume pricing on 1794-TB3 and related FLEX I/O components. Consolidating your spare parts procurement through a single verified source simplifies vendor management, ensures consistent part quality, and reduces the administrative overhead of managing multiple purchase orders across different suppliers.

Support FAQ

Q1: Is the 1794-TB3 compatible with all FLEX I/O relay output modules?
The 1794-TB3 is specifically designed for use with FLEX I/O relay output modules such as the 1794-OW8 and 1794-OW8I. It is not interchangeable with terminal bases designed for digital input, analog, or other output module types within the 1794 series. Always verify the module type before ordering to ensure compatibility. If you are unsure, contact us with your existing module part number and we will confirm compatibility before shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and any available diagnostic data. We will arrange return shipping and provide a replacement or refund within the agreed timeframe.

Q3: How is the unit tested before shipment, and what documentation is provided?
Every 1794-TB3 unit undergoes a pre-shipment functional inspection that includes visual examination for physical damage, terminal continuity verification, and module locking mechanism check. A basic inspection report is available upon request. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage. Customs documentation, including commercial invoice and packing list, is provided for all international shipments.

Q4: What is the recommended spare parts stocking strategy for a FLEX I/O installation?
For a single production line running a FLEX I/O rack, we recommend stocking at minimum: one 1794-TB3 relay terminal base, one compatible relay output module (e.g., 1794-OW8), one FLEX I/O adapter (e.g., 1794-AENT), and one power supply (e.g., 1794-PS13). This kit covers the most common single-point failure scenarios and allows same-shift restoration of I/O functionality. For multi-line facilities, scale the inventory proportionally and review stock levels annually against actual consumption data.
