Allen-Bradley 1791-OB32 Ruggedized Output Module for Harsh Environments

Product Overview

Allen-Bradley 1791-OB32 Ruggedized Output Module for Harsh Environments

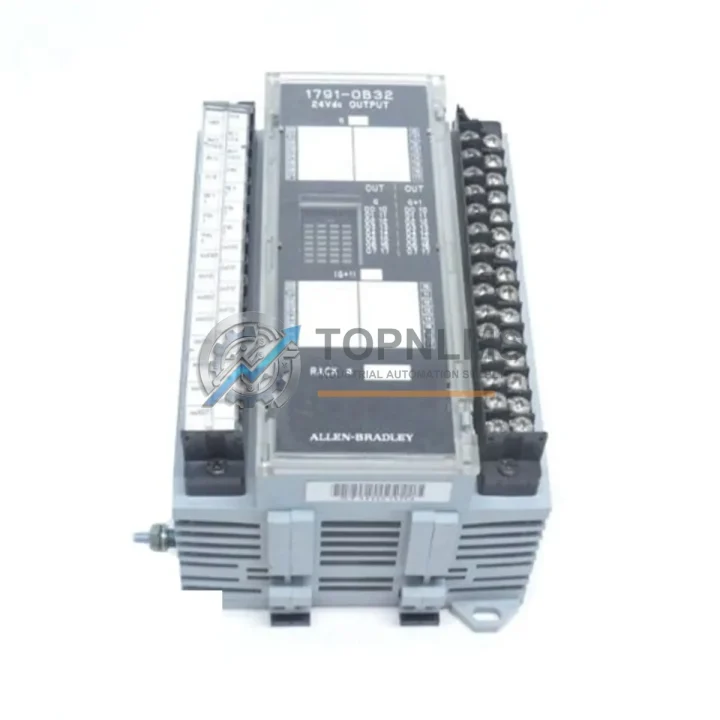

The Allen-Bradley 1791-OB32 is a 32-point, 24VDC sourcing output Block I/O module engineered for continuous, reliable operation in the most demanding industrial environments. Designed as part of Rockwell Automation’s 1791 Block I/O series, this module delivers deterministic digital output control with robust electrical isolation, making it a trusted backbone component in PLC-driven control architectures across heavy industry, process manufacturing, and critical infrastructure.

Built to withstand high-temperature enclosures, high-humidity process areas, airborne particulate contamination, mechanical vibration from rotating machinery, and electromagnetic interference from variable frequency drives and high-current switching equipment, the 1791-OB32 maintains signal integrity and output reliability where lesser modules fail. Its compact block form factor eliminates the need for a separate rack or backplane, reducing panel footprint and simplifying wiring in space-constrained control cabinets.

With 32 individually protected sourcing outputs rated at 24VDC, the module interfaces directly with solenoid valves, motor starters, indicator lamps, relay coils, and actuator control circuits. Each output channel incorporates short-circuit and overload protection, ensuring that a single field fault does not cascade into a system-wide shutdown — a critical requirement in continuous production lines where unplanned downtime carries significant operational cost.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1791-OB32 is most effective when deployed as part of a coordinated control and protection architecture. In a typical hardwired Block I/O panel, it operates alongside the Allen-Bradley 1791-IB32 32-point 24VDC sinking input module, which handles field sensor signals while the OB32 drives actuator outputs — together forming a complete discrete I/O layer without requiring a network-based I/O adapter.

For applications requiring mixed I/O in a single housing, the 1791-IB16OB16 combination module provides an alternative, though the dedicated 1791-OB32 is preferred where output channel density and individual channel protection are the priority. In larger control architectures, the 1791-OB32 integrates with Allen-Bradley 1747-SN ScanPort adapters or 1771-ASB remote I/O adapters, enabling the block to communicate with SLC 500 or PLC-5 processors over the Remote I/O (RIO) network — a proven, deterministic protocol widely used in legacy continuous process plants.

Power distribution to the module and its field devices is typically managed through Allen-Bradley 1606-XLP series industrial power supplies, which provide regulated 24VDC with high efficiency and wide input voltage tolerance — essential in facilities where mains power quality is variable. Upstream circuit protection is handled by Phoenix Contact or Weidmüller terminal block fuse holders integrated into the control cabinet wiring, ensuring each output circuit is individually protected at the panel level.

In safety-instrumented systems, the 1791-OB32 is often paired with Allen-Bradley GuardLogix safety controllers and 1791DS-IB12XOB8 safety I/O blocks for the safety-rated portions of the control loop, while the standard 1791-OB32 handles non-safety-rated actuator outputs in the same cabinet. This separation of safety and standard I/O is consistent with IEC 61511 functional safety requirements for process industries.

Communication between the control cabinet and the plant DCS or SCADA layer is frequently managed through Allen-Bradley 1756-ENBT or 1756-EN2T EtherNet/IP communication modules in the ControlLogix chassis, with the 1791-OB32 block providing the final hardwired output layer to field devices. This architecture ensures that even in the event of a network disruption, the output module continues to hold its last commanded state, preventing uncontrolled process upsets.

Application in Critical Infrastructure

The Allen-Bradley 1791-OB32 has established a strong service record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream facilities, it controls wellhead valve actuators, pipeline isolation valves, and compressor station auxiliary systems, where the combination of wide temperature tolerance, vibration resistance, and per-channel short-circuit protection directly supports safe and continuous operation in remote, unmanned installations.

In coal-fired and gas-fired power generation plants, the module drives burner management system (BMS) auxiliary outputs, boiler feed pump control circuits, and turbine auxiliary relay panels. Its ability to operate reliably in high-EMI environments — generated by large motor drives, transformer switching, and bus bar proximity — makes it a preferred choice for power plant electrical engineers specifying replacement I/O for aging PLC-5 and SLC 500 based control systems.

Mining operations, particularly underground coal and hard-rock metal mines, rely on the 1791-OB32 for conveyor belt control, ventilation fan sequencing, and dewatering pump management. The module’s rugged construction withstands the coal dust, silica particulate, and mechanical shock inherent to mining environments, and its compact block form factor simplifies installation in the space-constrained electrical rooms of mobile mining equipment and fixed underground substations.

Water and wastewater treatment facilities use the 1791-OB32 to control chemical dosing pump relays, UV disinfection system outputs, and lift station pump starters. The module’s 24VDC sourcing output architecture is directly compatible with the NAMUR-standard solenoid valves and process actuators common in water treatment automation, simplifying integration with existing field wiring.

In steel mills and aluminum smelters, the module operates in the extreme thermal and electromagnetic environment of melt shops and rolling mills, controlling cooling water valve actuators, fume extraction damper drives, and casting machine auxiliary outputs. Its proven compatibility with legacy Allen-Bradley PLC-5 and SLC 500 controllers — still widely deployed in metallurgical plants — makes the 1791-OB32 an essential spare part for maintenance engineers managing long-lifecycle control systems.
