Allen-Bradley 1791-16BC Ruggedized Discrete Block I/O Module

Product Overview

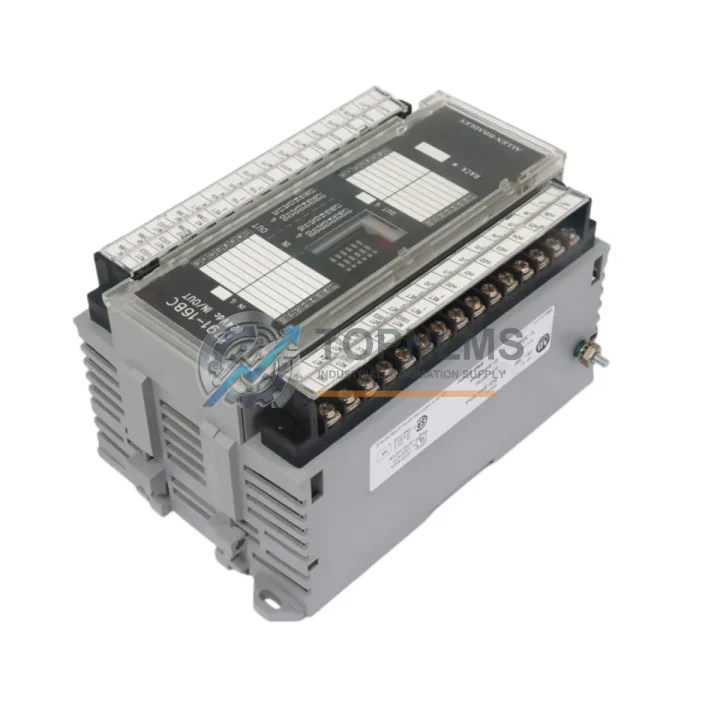

Allen-Bradley 1791-16BC Ruggedized Discrete Block I/O Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1791-16BC is a 16-point discrete block I/O module engineered by Rockwell Automation for demanding industrial control applications where reliability is non-negotiable. Designed as part of the 1791 Block I/O Series, this module delivers robust digital signal management in environments characterized by high temperature fluctuations, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference — conditions routinely encountered across oil and gas facilities, mining operations, power generation plants, water treatment infrastructure, metallurgical processing lines, and heavy manufacturing floors.

Unlike rack-mounted I/O architectures that require centralized panel space, the 1791-16BC mounts directly in the field, close to the process equipment it monitors and controls. This distributed placement reduces wiring runs, minimizes signal degradation, and simplifies troubleshooting during unplanned shutdowns. Its compact block form factor integrates seamlessly into Allen-Bradley PLC systems — including SLC 500 and MicroLogix controller families — via standard discrete I/O backplane communication, enabling straightforward drop-in replacement without reprogramming overhead.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Allen-Bradley control architecture, the 1791-16BC does not operate in isolation. It functions as a critical node within a layered system of protection and control components. On the controller side, it pairs directly with the Allen-Bradley SLC 5/05 processor module, which handles ladder logic execution and communicates discrete field states back to the supervisory layer. For applications requiring safety-rated I/O, the 1791-16BC is commonly deployed alongside the Allen-Bradley 1791DS Safety Block I/O modules, which provide SIL 2-rated discrete control for emergency shutdown and safety instrumented system (SIS) loops.

Power integrity is maintained through Allen-Bradley 1606-XLP series industrial power supplies, which deliver regulated 24V DC to the block I/O network even under fluctuating grid conditions. Surge and transient protection is reinforced by Phoenix Contact TRABTECH surge protection devices installed at the field terminal entry points. For communication backbone integrity, the 1791-16BC integrates with Allen-Bradley 1747-SN Scanner Modules and 1747-ASB Adapter Modules, enabling reliable Remote I/O (RIO) communication across extended cable runs in electrically noisy environments.

Terminal connectivity is managed through Allen-Bradley 1492-J series wiring systems and Weidmüller terminal blocks, which provide vibration-resistant, torque-controlled terminations essential for mobile or high-vibration machinery. In cabinet-level deployments, the 1791-16BC is frequently installed alongside Allen-Bradley 700-series relay modules for output signal amplification and load isolation, protecting the I/O module’s solid-state outputs from inductive kickback generated by solenoids, motor starters, and valve actuators. For distributed architectures requiring DeviceNet or ControlNet connectivity, the 1791-16BC can be integrated with Allen-Bradley 1756-DNB DeviceNet Bridge modules within a ControlLogix chassis, extending its reach into modern Ethernet/IP-capable plant networks.

Application in Critical Infrastructure

In upstream oil and gas operations, the 1791-16BC is deployed on wellhead control panels and pipeline SCADA nodes where it monitors discrete states from pressure switches, valve position indicators, and emergency shutdown (ESD) pushbuttons. Its sealed block housing resists hydrocarbon vapors and condensation ingress, maintaining signal integrity across temperature cycles that accompany day-night thermal swings in outdoor installations.

In underground mining environments, the module manages conveyor belt interlocks, ventilation fan status, and proximity detection circuits. The block I/O architecture eliminates the need for a centralized marshalling cabinet at the face, reducing cable infrastructure costs and improving fault isolation response time. Vibration profiles generated by continuous mining equipment — including longwall shearers and shuttle cars — are well within the module’s rated mechanical tolerance.

Power generation facilities rely on the 1791-16BC for turbine auxiliary control, generator protection relay status monitoring, and switchgear position feedback. In these applications, the module operates within control rooms and switchgear buildings where EMI levels from high-voltage bus bars and transformer switching can disrupt less robust I/O hardware. The 1791-16BC’s EMC-hardened design maintains deterministic scan cycle performance under these conditions.

Water and wastewater treatment plants deploy the module across pump station control panels, chemical dosing systems, and clarifier drive controls. Its resistance to high-humidity environments — including the corrosive chlorine and hydrogen sulfide atmospheres present in treatment facilities — makes it a preferred choice for long-lifecycle installations where module replacement frequency directly impacts operational cost.

In metallurgical and steel mill applications, the 1791-16BC withstands radiant heat from furnace proximity, airborne metallic particulates, and the intense electromagnetic fields generated by arc furnace operations. Its field-distributed mounting allows control logic to be placed close to rolling mill drives, ladle transfer cars, and continuous casting equipment, reducing the latency between sensor event and controller response that is critical in high-speed forming processes.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Allen-Bradley 1791-16BC?
Every 1791-16BC unit shipped by TOPNLMS carries a 12-month warranty covering functional defects under normal operating conditions. Prior to dispatch, each module undergoes bench-level functional verification including discrete I/O point actuation testing, backplane communication handshake confirmation, and visual inspection for connector integrity and housing damage. Units that do not pass verification are quarantined and not offered for sale.

Q2: How is compatibility with my existing SLC 500 or MicroLogix system confirmed?
The 1791-16BC is a standard Rockwell Automation catalog part with published compatibility across the SLC 500 controller family and MicroLogix 1500 platforms via the 1791 Block I/O adapter architecture. If your application involves a PLC-5 host or a ControlLogix migration path, our technical team can advise on the appropriate scanner or bridge module required to maintain backward compatibility. Provide your controller catalog number and firmware revision when inquiring.

Q3: What is the lead time and shipping process for this module?
In-stock units are processed and dispatched within 1–3 business days from our Xiamen, China facility. International shipments are handled via DHL Express, FedEx International Priority, or UPS Worldwide, with full tracking provided at time of dispatch. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all cross-border shipments. Expedited processing is available upon request for critical maintenance situations.

Q4: Can the 1791-16BC be used as a direct replacement for a failed module on a live production line?
Yes. The 1791-16BC is a catalog-standard replacement part. Provided the replacement unit carries the same catalog number and series revision as the installed module, no controller program changes are required. TOPNLMS maintains ongoing stock of 1791 series Block I/O modules to support emergency maintenance scenarios where production continuity depends on rapid spare part availability. Contact our team with your urgency timeline and we will prioritize accordingly.
