Allen-Bradley 1785-L80E ST0WO1WX Original Industrial Spare PLC-5

Product Overview

Allen-Bradley 1785-L80E ST0WO1WX Original Industrial Spare PLC-5 Compatible: System Stability and Industrial Spare Maintenance Value

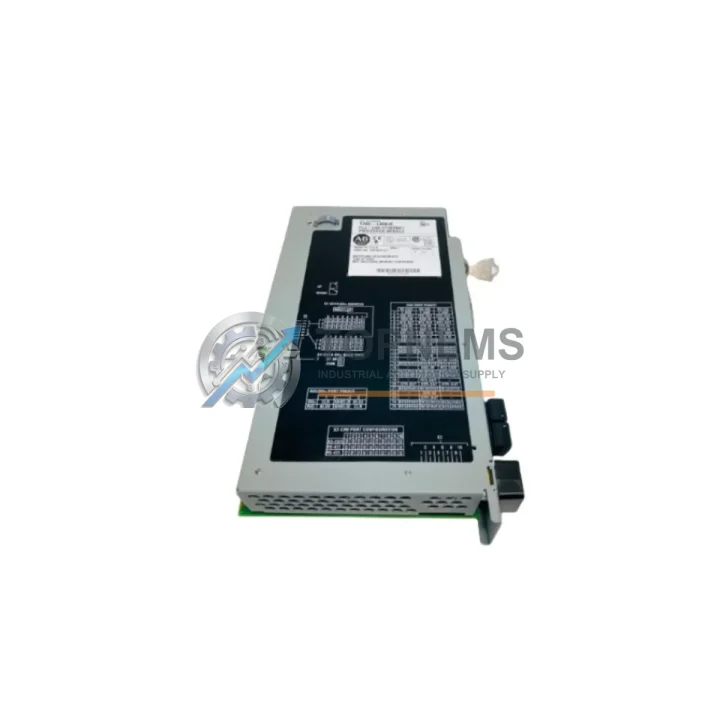

The Allen-Bradley 1785-L80E ST0WO1WX is a PLC-5 Enhanced Ethernet Controller manufactured by Rockwell Automation, designed for high-demand industrial control environments where system uptime and communication reliability are non-negotiable. As an original spare part sourced directly through authorized industrial supply channels, this controller provides a direct, drop-in replacement for aging or failed units in existing PLC-5 architecture — preserving your control logic, I/O mapping, and Ethernet/IP network topology without requiring costly system redesign or migration.

For maintenance engineers and plant managers operating legacy Allen-Bradley PLC-5 systems, the 1785-L80E ST0WO1WX represents a critical inventory asset. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a strategic spare parts buffer, having this controller on the shelf eliminates the most dangerous variable in industrial maintenance: lead time. Every hour of unplanned downtime in a process or discrete manufacturing environment carries measurable cost — and the availability of a verified, tested original spare is the single most effective mitigation.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a PLC-5 Enhanced Ethernet Controller such as the 1785-L80E ST0WO1WX is flagged for replacement or scheduled inspection, experienced maintenance teams treat the event as a broader system health checkpoint — not an isolated swap. The controller sits at the center of a control cabinet ecosystem, and its removal provides a practical window to assess the condition of surrounding components that share the same operational stress cycles.

Begin with the chassis power supply. The 1771-P4S or 1771-P6S power supply modules that feed the PLC-5 backplane are subject to capacitor aging and thermal fatigue; a controller fault is frequently preceded or accompanied by marginal power delivery. Inspecting and, where appropriate, replacing the power supply in the same maintenance window eliminates a common root cause of repeat faults.

Next, audit the I/O modules installed in the same 1771-series chassis. Digital input modules such as the 1771-IB and 1771-IA, and digital output modules such as the 1771-OB and 1771-OW, accumulate contact wear and insulation degradation over years of industrial cycling. A controller replacement that leaves degraded I/O modules in place will often result in a second fault event within months. Similarly, analog I/O modules — including 1771-IF and 1771-OF series — should be verified for calibration drift and signal integrity, particularly in process control applications where measurement accuracy directly affects product quality.

The communication infrastructure deserves equal attention. The 1785-L80E ST0WO1WX relies on a stable Ethernet/IP network for supervisory communication and remote I/O coordination. Inspect the 1784-PKTX or 1784-U2DHP communication interface cards used at the programming workstation, and verify the integrity of the DH+ network cabling and terminators. Faulty termination resistors are a frequent source of intermittent communication faults that are misdiagnosed as controller failures.

For facilities running mixed PLC-5 and ControlLogix architectures, this maintenance window is also an appropriate time to inspect the 1756-DHRIO or 1756-ENBT bridge modules that link legacy PLC-5 segments to newer ControlLogix backplanes. These gateway modules carry significant traffic load and are often overlooked in spare parts planning.

Finally, review the condition of terminal blocks, wiring ferrules, and field wiring connections within the control cabinet. Loose or corroded terminations at the I/O module field-side connectors are a leading cause of intermittent faults that are incorrectly attributed to the controller. A thorough torque check and visual inspection of all field terminations, combined with a review of fuse modules protecting the I/O circuits, completes a comprehensive preventive maintenance cycle that maximizes the return on your controller replacement investment.

Strategic Replacement Solutions

The 1785-L80E ST0WO1WX is a direct replacement for earlier PLC-5 Enhanced Ethernet variants operating in the same chassis and backplane configuration. Because the PLC-5 platform uses a standardized slot-based architecture, a verified original spare can be installed, configured, and returned to service without modifying field wiring, I/O addressing, or the existing ladder logic program — provided the replacement unit carries the correct catalog suffix and firmware revision.

For facilities managing the transition from PLC-5 to ControlLogix, maintaining a stock of original PLC-5 spares is a deliberate and cost-effective strategy. A full migration project carries significant engineering, commissioning, and validation costs that are rarely justified for a single controller fault. Keeping one or two verified 1785-L80E units in the spare parts cabinet extends the operational life of the existing system by years, deferring migration capital expenditure until it can be planned and budgeted on the facility’s own schedule — rather than forced by an emergency failure.

All units supplied by TOPNLMS are tested for communication functionality, memory integrity, and backplane interface performance prior to shipment. Each unit ships with documentation of the test results and is covered by a 12-month warranty from the date of shipment, providing procurement teams with the confidence required for critical spare parts purchasing decisions.

Support FAQ

Q1: Is the 1785-L80E ST0WO1WX compatible with my existing PLC-5 chassis and I/O modules?
Yes. The 1785-L80E is designed for installation in the standard 1771-series chassis (1771-A1B through 1771-A4B) and is compatible with the full range of 1771-series I/O modules. The ST0WO1WX catalog suffix specifies the firmware and communication option configuration — confirm your existing unit’s suffix before ordering to ensure a direct match.

Q2: What testing is performed before shipment?
Each 1785-L80E ST0WO1WX unit undergoes functional testing covering power-on self-test completion, Ethernet/IP port communication verification, DH+ interface check, and backplane communication integrity. Test results are documented and accompany the shipment. The unit is shipped in anti-static packaging with physical protection appropriate for international freight.

Q3: How should I manage spare parts inventory for a PLC-5 system?
For a PLC-5 installation with a single controller, the recommended minimum spare holding is one verified replacement controller plus one spare power supply module. For multi-controller installations or systems in continuous-process environments, a ratio of one spare per three to five installed units is a common industry benchmark. Spare I/O modules for the highest-density or most critical I/O types should also be included in the spare parts plan.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental parameters. Warranty claims are processed through TOPNLMS directly — contact [email protected] with your order reference and a description of the fault for rapid resolution.
