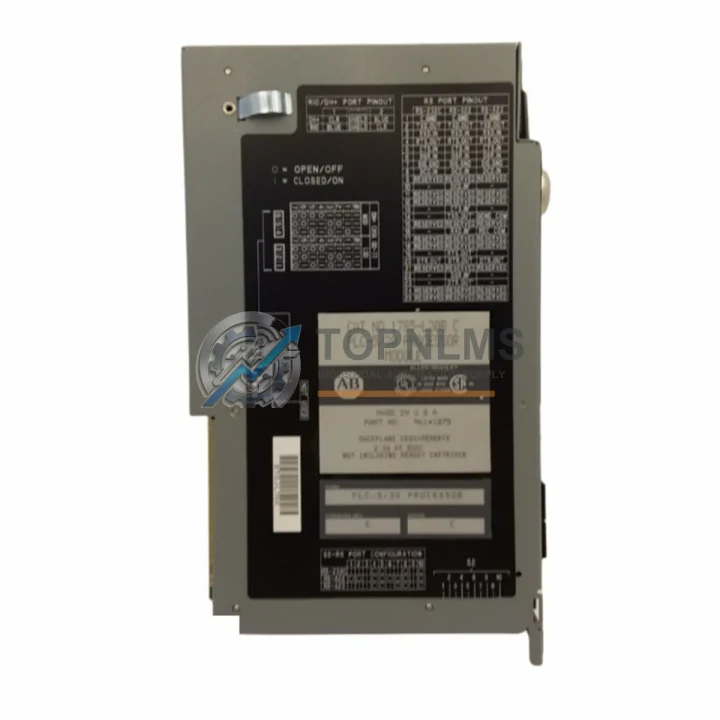

Allen-Bradley 1785-L30B Original Industrial Spare PLC-5 Compatible

Product Overview

Allen-Bradley 1785-L30B Original Industrial Spare PLC-5 Compatible: System Stability and Maintenance Value

The Allen-Bradley 1785-L30B is a PLC-5/30 Enhanced Processor from Rockwell Automation’s proven PLC-5 Series — one of the most widely deployed programmable logic controller platforms in global industrial automation. For maintenance engineers and plant managers operating legacy control systems, the 1785-L30B represents a critical spare that directly determines whether a production line resumes within hours or remains offline for days. Sourcing a verified original replacement in advance is not merely a procurement decision — it is a risk management strategy that protects uptime, preserves capital investment in existing infrastructure, and extends the operational life of installed PLC-5 systems.

At TOPNLMS, every 1785-L30B unit is sourced from authorized supply channels, individually inspected, and function-tested prior to shipment. Each unit ships with a 12-month warranty covering hardware defects and operational failures under normal industrial use conditions. We serve maintenance teams, MRO procurement departments, and system integrators who require reliable, spec-accurate components with traceable provenance and fast international logistics.

Critical Technical Specs

Preventive Maintenance Strategy

When a 1785-L30B processor is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance teams treat the event as an opportunity to audit the entire control cabinet. The PLC-5/30 processor does not operate in isolation — it depends on a network of supporting components whose condition directly affects system reliability after the processor swap.

Begin with the 1771 I/O chassis backplane and inspect all slot connectors for oxidation or mechanical wear. A degraded backplane can cause intermittent faults even after a new processor is installed. Simultaneously, verify the condition of the 1771-P4S or 1771-P6S power supply module: voltage ripple, output stability, and capacitor age are common failure points in systems that have been running continuously for five or more years.

Check all 1771-OBD or 1771-IBD discrete I/O modules seated in the chassis. Modules with high cycle counts or exposure to vibration and heat may exhibit intermittent output failures that are difficult to diagnose without a baseline inspection. If the system uses analog signals, inspect 1771-IFE or 1771-OFE analog I/O modules for calibration drift — a common issue in temperature-sensitive process environments.

Communication integrity is equally important. Inspect the 1785-KA5 or 1785-KE DH+ communication adapter and verify cable termination resistance on the Data Highway Plus network. Loose or corroded BNC connectors are a frequent source of intermittent communication faults that are misdiagnosed as processor failures. If the system interfaces with SCADA or HMI platforms, confirm that the 1784-KTX or 1784-PCMK communication card driver configuration remains compatible with the replacement processor firmware revision.

For facilities managing multiple PLC-5 cabinets, it is advisable to maintain a minimum stock of 1771-ASB remote I/O adapter modules alongside the processor spare. Remote I/O adapters are frequently overlooked in spare parts planning yet are equally critical to system availability. Rounding out a comprehensive spare kit with 1492-J terminal blocks, 1492-FB fuse blocks, and a set of replacement 1771 I/O module keying bands ensures that a full cabinet restoration can be completed within a single maintenance window without waiting for secondary parts shipments.

Strategic Replacement Solutions

The Allen-Bradley PLC-5 platform, while no longer in active production, remains embedded in thousands of manufacturing facilities, water treatment plants, oil and gas installations, and automotive assembly lines worldwide. Rockwell Automation’s end-of-life designation for PLC-5 hardware does not eliminate the operational need — it intensifies it. Replacement processors must be sourced from the secondary market, and quality verification becomes the decisive factor separating a successful repair from a repeat failure.

The 1785-L30B is a direct replacement for earlier PLC-5/30 processor revisions and is backward-compatible with existing 1771 I/O chassis configurations, eliminating the need for chassis replacement or I/O rewiring. This compatibility preserves the existing ladder logic program, I/O addressing structure, and HMI tag mapping — reducing commissioning time to a processor swap and program download rather than a full system re-engineering project.

For facilities evaluating a migration path, the 1785-L30B also serves as a stable interim solution while a ControlLogix or CompactLogix migration is planned and budgeted. Running the existing PLC-5 system on a verified original processor for an additional 3–5 years is a financially sound strategy that allows engineering teams to design the migration properly rather than executing it under emergency conditions.

All units supplied by TOPNLMS are tested for communication port functionality, memory integrity, and processor scan cycle performance before shipment. Units are packaged in anti-static protective enclosures with humidity indicator cards and shipped via tracked international freight. Standard lead time is 3–7 business days for in-stock units.

Support FAQ

Q1: Is the 1785-L30B compatible with my existing 1771 I/O chassis and program?
Yes. The 1785-L30B is designed for the 1771 I/O chassis platform and is backward-compatible with existing PLC-5/30 ladder logic programs. No I/O rewiring or address remapping is required for a direct processor replacement. Confirm your existing processor firmware revision and chassis series before installation to ensure full compatibility.

Q2: What does the 12-month warranty cover?
The warranty covers hardware defects and operational failures under normal industrial operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Warranty claims are processed with return shipping coordination and replacement unit dispatch within 5 business days of fault confirmation.

Q3: How is the unit tested before shipment?
Each 1785-L30B unit undergoes functional testing including power-on self-test verification, communication port integrity check (DH+ and RS-232), and memory read/write cycle validation. Units that do not pass all test criteria are quarantined and not offered for sale. A test report summary is available upon request for critical procurement requirements.

Q4: What is the recommended spare parts inventory strategy for PLC-5 systems?
For facilities with three or more PLC-5 cabinets, we recommend maintaining at least one processor spare per major processor variant in use, plus one power supply module and one set of the most frequently used I/O modules. For single-cabinet installations, a processor spare combined with a power supply spare provides adequate coverage for the majority of unplanned downtime scenarios. Annual review of spare parts inventory against system age and criticality is a best practice for MRO planning.
