Allen-Bradley 1783-ETAP Original Industrial Spare Stratix Compatible

Product Overview

Allen-Bradley 1783-ETAP Original Industrial Spare Stratix Compatible: System Stability and Industrial Spare Maintenance Value

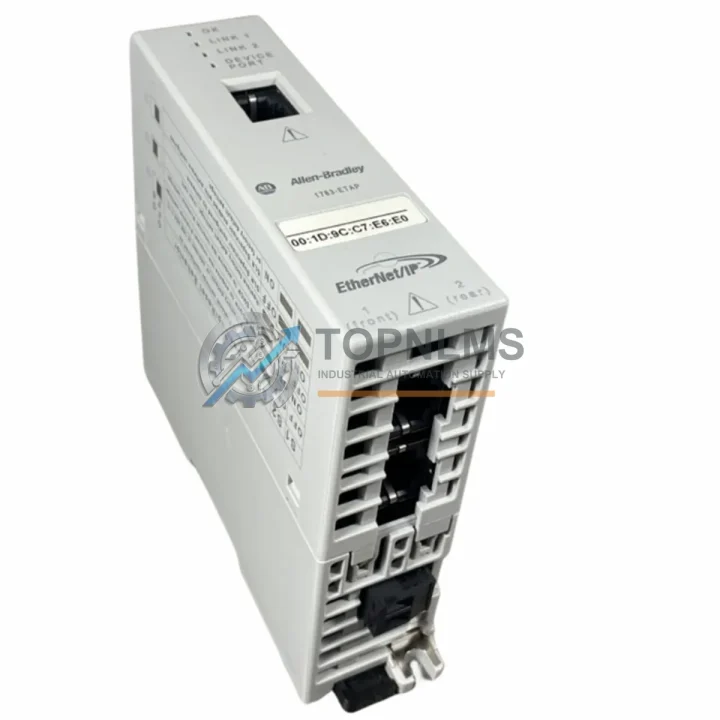

The Allen-Bradley 1783-ETAP EtherNet/IP Network Tap is a passive monitoring device engineered for Rockwell Automation Stratix industrial Ethernet networks. In modern manufacturing and process control environments, uninterrupted network visibility is not optional — it is the foundation of system stability. The 1783-ETAP provides a non-intrusive, always-on connection point that allows maintenance engineers to monitor live EtherNet/IP traffic without disrupting production, making it an indispensable component in any serious industrial spare parts inventory.

For facilities running Allen-Bradley ControlLogix, CompactLogix, or GuardLogix controllers, the 1783-ETAP integrates seamlessly into the existing Stratix network topology. Its passive tap architecture means that even in the event of a power loss to the tap itself, the primary network link remains intact — a critical design feature that directly reduces unplanned downtime risk. Maintenance teams responsible for aging control systems will find the 1783-ETAP particularly valuable as a long-term stocking item, ensuring that network diagnostic capability is never the bottleneck during a fault investigation or emergency shutdown recovery.

Critical Technical Specs Table

Preventive Maintenance Strategy

A well-structured preventive maintenance program for EtherNet/IP-based control systems extends far beyond replacing a single component. When scheduling a planned outage to inspect or replace the 1783-ETAP, experienced maintenance engineers use the opportunity to audit the entire network segment and associated control cabinet. The 1783-ETAP sits at the intersection of the control network and the diagnostic layer, which means its replacement window is the ideal time to verify the health of adjacent components.

Begin by inspecting the Stratix 5700 managed Ethernet switch (e.g., 1783-BMS10CGL) that the tap feeds into — check port utilization, error counters, and firmware version. Simultaneously, verify the integrity of the EtherNet/IP patch cables and industrial Cat5e/Cat6 shielded cables connecting the tap to the switch and the monitored devices; cable degradation is a leading cause of intermittent network faults that are often misattributed to the tap itself.

On the power supply side, confirm that the 24 VDC panel power supply (such as the Allen-Bradley 1606-XLP series) feeding the tap and the surrounding network devices is within voltage tolerance. A marginal power supply can cause the tap to reset intermittently, generating false network alarms. While the cabinet is open, inspect the terminal blocks and DIN rail grounding assemblies for corrosion or loose connections, as poor grounding is a common root cause of EMI-induced network errors in industrial environments.

If the control system includes a ControlLogix chassis with 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules, this is the right time to verify their firmware and check for any logged communication faults. For systems using CompactLogix 5380 or 5480 controllers, confirm that the embedded EtherNet/IP port configuration matches the network topology documented in the as-built drawings. Any discrepancy between the live configuration and the documentation is a latent risk that should be corrected during the maintenance window.

Finally, if the facility uses a Rockwell Automation FactoryTalk network management tool or a third-party SCADA historian connected via the monitor port of the 1783-ETAP, verify that the monitoring session is re-established correctly after the tap replacement and that packet capture is functioning as expected. Stocking a spare 1783-ETAP alongside a spare Stratix 5700 switch module and a set of pre-terminated patch cables ensures that the next unplanned outage can be resolved within minutes rather than hours.

Strategic Replacement Solutions

The 1783-ETAP was introduced as part of Rockwell Automation’s Stratix network infrastructure portfolio and remains the recommended passive tap solution for EtherNet/IP environments. However, many facilities are still operating legacy network architectures that predate the Stratix product line, using older unmanaged switches or third-party taps that lack EtherNet/IP awareness. Replacing these legacy devices with the 1783-ETAP delivers immediate benefits: the passive tap design eliminates the risk of the monitoring device becoming a single point of failure, and the DIN rail form factor integrates directly into existing control cabinet layouts without panel modification.

For systems that were originally designed around older Allen-Bradley network components, the 1783-ETAP provides a forward-compatible upgrade path. It supports both 10 Mbps and 100 Mbps full-duplex operation, ensuring compatibility with both legacy and modern EtherNet/IP devices on the same segment. Maintenance planners should note that the 1783-ETAP does not require any configuration — it is a true plug-and-play passive device, which means replacement can be performed by field technicians without specialist network engineering support, significantly reducing the labor cost and risk associated with emergency replacements.

For facilities managing multiple production lines or buildings, establishing a centralized spare parts buffer that includes at least one 1783-ETAP per network segment is a proven strategy for reducing mean time to repair (MTTR). Given the component’s role in enabling real-time network diagnostics, its absence during a fault investigation can extend troubleshooting time by hours. Sourcing original Allen-Bradley 1783-ETAP units from a verified industrial spare parts supplier — tested, documented, and backed by a 12-month warranty — is the lowest-risk procurement strategy for both planned maintenance and emergency response scenarios.

Support FAQ

Q1: What is the expected service life of the Allen-Bradley 1783-ETAP, and when should I plan for replacement?
The 1783-ETAP is a passive device with no moving parts, which contributes to a long operational lifespan under normal industrial conditions. However, exposure to sustained high temperatures, excessive humidity, or physical vibration can accelerate component aging. As a best practice, facilities should inspect the tap annually during scheduled maintenance shutdowns and plan for proactive replacement every 7–10 years, or immediately upon detection of any intermittent network errors that cannot be attributed to cabling or switch configuration.

Q2: How do I verify compatibility between the 1783-ETAP and my existing Stratix network infrastructure?
The 1783-ETAP is compatible with all Stratix managed and unmanaged switches, including the Stratix 5700, 5400, 5410, and 2000 series, as well as any standard IEEE 802.3 10/100 Mbps Ethernet device. Compatibility verification requires confirming that the network segment operates at 10 or 100 Mbps (the tap does not support Gigabit Ethernet) and that the monitoring device connected to the tap port can accept a full-duplex copy of the network traffic. No firmware or software configuration is required on the tap itself.

Q3: What pre-shipment testing does TOPNLMS perform on the 1783-ETAP before delivery?
All 1783-ETAP units sourced by TOPNLMS undergo visual inspection, power-on verification, and port continuity testing prior to shipment. Units supplied as tested surplus are additionally verified for passive bypass function and monitor port output integrity. Each unit ships with a test record and is covered by a 12-month warranty from the date of invoice. Expedited shipping options are available for emergency maintenance requirements.

Q4: Can the 1783-ETAP be used as a direct replacement for a failed unit without reconfiguring the network?
Yes. The 1783-ETAP requires no IP address, no configuration software, and no firmware updates. Replacement is a direct physical swap: disconnect the two network cables and the monitor cable from the failed unit, mount the replacement on the DIN rail, reconnect the cables in the same port positions, and restore power. The network segment will resume normal operation immediately, and the monitoring session can be re-established from the connected diagnostic device without any switch or controller reconfiguration.
