Allen-Bradley 1783-BMS10CGL Replacement for STRATIX 5700

Product Overview

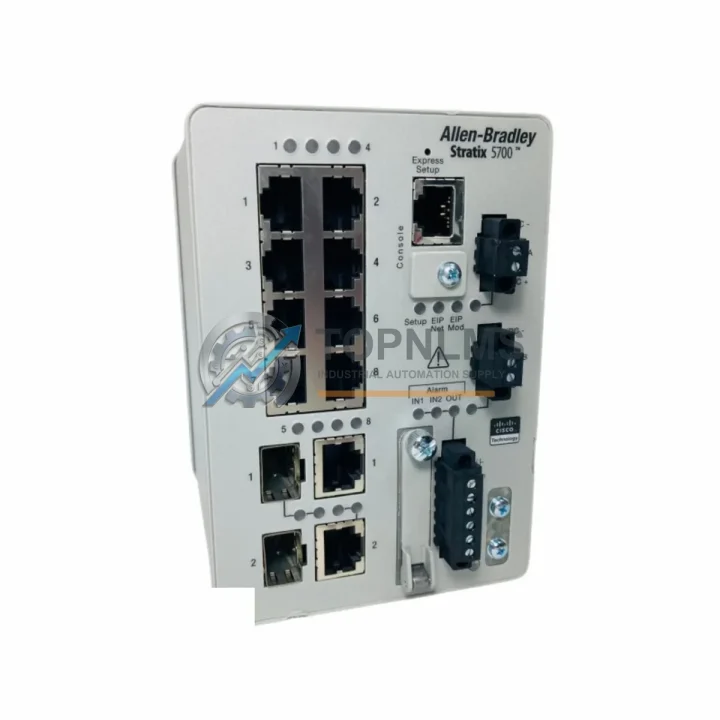

Allen-Bradley 1783-BMS10CGL Replacement for STRATIX 5700: Seamless Migration & Smooth Transition

When your existing Allen-Bradley STRATIX 5700 network infrastructure reaches end-of-life or a critical unit fails unexpectedly, unplanned downtime in a manufacturing or process control environment can be extremely costly. The 1783-BMS10CGL is a 10-port managed Ethernet switch from Rockwell Automation’s STRATIX 5700 series, designed for industrial EtherNet/IP networks operating within ControlLogix, CompactLogix, and GuardLogix control architectures. This listing provides a verified, tested replacement unit for the 1783-BMS10CGL, enabling engineers and maintenance teams to restore network integrity with minimal disruption to ongoing operations.

Whether you are replacing a failed unit on the production floor, upgrading aging network infrastructure, or building out a spare-parts inventory for a critical control system, this 1783-BMS10CGL replacement is sourced, inspected, and shipped ready for immediate installation. Our team understands the urgency of industrial network failures and the complexity of migrating or maintaining STRATIX 5700 deployments alongside other Rockwell Automation components.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful STRATIX 5700 migration or replacement rarely involves a single component in isolation. In most ControlLogix or CompactLogix-based control systems, the 1783-BMS10CGL operates as the backbone of the plant-floor EtherNet/IP network, interconnecting controllers, I/O adapters, drives, and HMI panels. During a retrofit or emergency replacement, engineers frequently need to address several adjacent components simultaneously.

For example, if the switch failure has affected communication with a 1756-EN2T or 1756-EN2TR EtherNet/IP communication module seated in a ControlLogix chassis, restoring the switch is only the first step — verifying the module’s IP configuration and connection path in Studio 5000 Logix Designer is equally critical. Similarly, if the network topology includes a 1783-ETAP EtherNet/IP tap for device-level ring (DLR) topology, the replacement switch must be reconfigured to support the same DLR supervisor or ring node role as the failed unit.

In systems where the STRATIX 5700 switch feeds power or data to PowerFlex 525 or PowerFlex 755 variable frequency drives via EtherNet/IP, restoring the switch promptly prevents drive fault states and avoids the need for manual drive resets across the production line. Likewise, PanelView Plus 7 HMI terminals connected through the switch will lose their runtime connection until the replacement unit is online and the IP address and VLAN configuration are restored from backup.

For installations that include a 1756-L85E or 1756-L83E ControlLogix controller with an integrated EtherNet/IP port, the controller’s connection table will show faulted I/O modules until the switch is restored. If the system also uses 1734-AENTR POINT I/O EtherNet/IP adapter modules distributed across the machine, each adapter’s connection must be re-established after the switch replacement — a process that is straightforward when the replacement unit is configured with the same IP addressing scheme and VLAN structure as the original.

In control cabinet environments where space is constrained, the 1783-BMS10CGL’s DIN-rail form factor ensures that the replacement unit occupies exactly the same physical footprint as the original, eliminating the need for cabinet modifications or additional mounting hardware. If the cabinet also houses a 1606-XLP power supply providing 24 VDC to the switch and adjacent I/O modules, no changes to the power distribution wiring are required.

For sites performing a broader network modernization — moving from an unmanaged or legacy switch to the STRATIX 5700 platform — the 1783-BMS10CGL supports IGMP snooping, QoS, and port mirroring features that are essential for deterministic EtherNet/IP communication in high-cycle-rate motion and process control applications.

Retrofit Guidance FAQ

Q: Do I need to rewire anything when replacing the 1783-BMS10CGL?
A: No. The replacement unit uses the same RJ-45 copper ports and SFP combo slots in identical positions. All existing Ethernet cables connect directly without modification. Label your cables before removal to ensure correct port-to-port restoration.

Q: How do I restore the switch configuration after replacement?
A: If a configuration backup was previously saved via TFTP, USB, or the Logix Designer Add-On Profile (AOP), it can be restored directly to the replacement unit. If no backup exists, the switch must be reconfigured manually using the web interface or CLI, replicating the original IP address, VLAN assignments, port settings, and DLR role.

Q: Will the replacement unit work with Studio 5000 Logix Designer’s network topology view?
A: Yes. The 1783-BMS10CGL replacement supports the same Cisco IOS firmware base and Rockwell AOP integration, allowing it to appear correctly in the Studio 5000 network topology and device configuration tools once the IP address is assigned.

Q: Is the EtherNet/IP protocol fully compatible?
A: Yes. The replacement unit supports EtherNet/IP at the same layer-2 and layer-3 levels as the original, including CIP (Common Industrial Protocol) implicit and explicit messaging, IGMP snooping for multicast management, and QoS DSCP marking for prioritizing I/O traffic over HMI or programming traffic.

Q: What if my system uses a Device Level Ring (DLR) topology?
A: The 1783-BMS10CGL supports DLR supervisor and ring node roles. After replacement, verify the DLR role assignment in the switch configuration matches the original. If the failed unit was the active DLR supervisor, the ring may have already failed over to the backup supervisor — confirm the topology is restored to normal ring state after the replacement is online.

Q: How much physical space does the replacement unit require?
A: The replacement unit has the same DIN-rail mounting dimensions as the original 1783-BMS10CGL. No cabinet modifications, additional mounting rails, or spacers are required.

Q: What communication protocols beyond EtherNet/IP are supported?
A: The switch supports standard IEEE 802.3 Ethernet, 802.1Q VLAN tagging, 802.1p QoS, IGMP v1/v2/v3 snooping, RSTP/MSTP spanning tree, and SNMP v1/v2c/v3 for network management. It is compatible with PROFINET at the physical and data-link layers when used in mixed-protocol environments.

Warranty Assurance

Every 1783-BMS10CGL replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional verification process that includes power-on testing, port connectivity checks, and firmware version confirmation. Units are packaged in anti-static protective packaging with appropriate cushioning for international freight.

If a unit develops a fault within the 12-month warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund, subject to fault verification. Our after-sales response team is reachable via email at [email protected] or by phone at +86 18359293191. We aim to respond to all warranty and technical inquiries within one business day.

For procurement teams managing critical spare-parts inventories, we can provide batch quotations, test reports, and shipping documentation including commercial invoices and packing lists suitable for customs clearance. Lead times for in-stock units are typically 3–7 business days for international shipments from Xiamen, China.

We understand that purchasing industrial control system components from an overseas supplier requires confidence in product quality and after-sales support. Our 12-month warranty, pre-shipment testing protocol, and dedicated technical support team are designed to give procurement engineers and plant managers the assurance they need to make confident sourcing decisions.
