Allen-Bradley 193-ECM-DNT DeviceNet Module E3 Plus

Product Overview

Allen-Bradley 193-ECM-DNT DeviceNet Module: Industrial Resilience for Harsh Environments

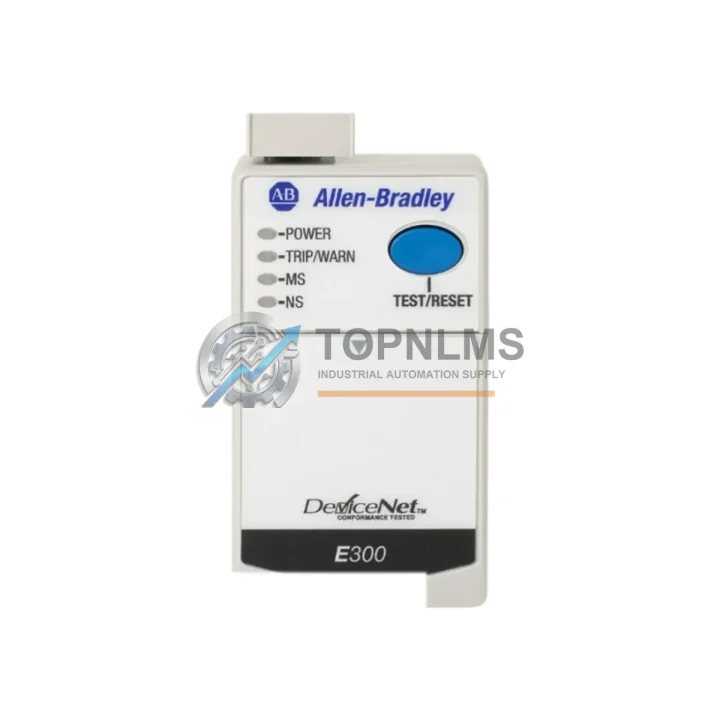

The Allen-Bradley 193-ECM-DNT is a ruggedized DeviceNet Communication Module engineered specifically for the E3 Plus Electronic Overload Relay platform. Designed to operate reliably in the most demanding industrial environments — including high-temperature foundries, high-humidity water treatment plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers uncompromising network connectivity and motor protection data transparency where it matters most.

In continuous production environments where downtime is measured in thousands of dollars per minute, the 193-ECM-DNT provides real-time motor diagnostics, fault status, and trip data directly over the DeviceNet fieldbus network. This enables plant engineers and automation technicians to monitor motor health, respond to overload events, and execute remote resets without leaving the control room — a critical advantage in hazardous or physically inaccessible installation zones.

Built to Rockwell Automation’s stringent quality standards, the 193-ECM-DNT integrates seamlessly into Allen-Bradley’s broader E3 Plus ecosystem. When paired with the 193-EC2 E3 Plus Electronic Overload Relay or the 193-EC4 E3 Plus with ground fault detection, it transforms a standalone motor protection device into a fully networked, remotely configurable node on your DeviceNet segment. This level of integration is essential for modern SCADA and DCS architectures where every field device must report status, alarms, and energy data upstream.

Rugged Specifications Table

Comprehensive Protection Solutions

The 193-ECM-DNT does not operate in isolation — it is the communication backbone that ties your motor protection strategy into a unified, intelligent control architecture. In a typical motor control center (MCC) or control cabinet deployment, this module works in concert with a full suite of Allen-Bradley and Rockwell Automation components to deliver layered, redundant protection.

At the power distribution level, the Allen-Bradley 1606-XLP industrial power supply provides stable, filtered DC power to the control cabinet, ensuring that communication modules and relay logic remain unaffected by upstream voltage fluctuations or switching transients. Alongside it, the Allen-Bradley 1492-SP series terminal blocks and fuse holders provide organized, safe wiring termination points that simplify maintenance and reduce the risk of wiring errors in high-density panels.

For PLC-level control, the 193-ECM-DNT integrates directly with Allen-Bradley CompactLogix L-series controllers (such as the 1769-L30ER or 1769-L33ER) via the DeviceNet scanner module 1769-SDN, enabling the PLC to read motor status, issue control commands, and log fault histories without additional programming overhead. In larger installations using ControlLogix 1756-series platforms, the 1756-DNB DeviceNet Bridge module serves as the network master, managing up to 63 DeviceNet nodes — including multiple 193-ECM-DNT units — across a single cable segment.

On the safety side, the Allen-Bradley 440C-CR30 Safety Relay or GuardLogix safety controller can be configured to receive trip signals from the E3 Plus overload relay via the DeviceNet network, enabling machine-level safe-state responses that comply with IEC 62061 and ISO 13849 safety integrity requirements. This is particularly valuable in press lines, conveyor systems, and robotic cells where motor faults must trigger immediate, validated safety responses.

For variable-speed drive applications, the 193-ECM-DNT complements Allen-Bradley PowerFlex 525 and PowerFlex 755 variable frequency drives (VFDs), which also support DeviceNet communication. In multi-drive systems, both the VFD and the overload relay can share the same DeviceNet segment, reducing wiring complexity and enabling centralized fault management from a single HMI or SCADA node.

Communication integrity across the DeviceNet segment is maintained by proper network termination using Allen-Bradley 1485T-P2T5-T5 DeviceNet termination resistors and 1485C-P1-C150 DeviceNet cables, which are rated for industrial flex-cycle and tray-cable installations. These accessories ensure signal integrity even in environments with significant electromagnetic interference from large motor drives, welding equipment, or high-frequency switching devices.

Application in Critical Infrastructure

The Allen-Bradley 193-ECM-DNT has earned its place as a trusted component in some of the world’s most demanding industrial sectors, where equipment failure is not merely a productivity issue but a safety and environmental liability.

Oil & Gas: In upstream and midstream oil and gas facilities, pump motors driving crude transfer, injection, and pipeline compression operate continuously under high ambient temperatures and in classified hazardous areas. The 193-ECM-DNT enables remote monitoring of these motors from a safe control room, eliminating the need for technicians to enter hazardous zones for routine status checks. Its robust EMI immunity ensures reliable DeviceNet communication even in the presence of high-power variable frequency drives and electrical noise from gas compression equipment.

Mining & Mineral Processing: Underground and surface mining operations subject electrical equipment to extreme vibration, coal dust, silica dust, and wide temperature swings. The 193-ECM-DNT’s compliance with IEC 60068-2-6 vibration standards and its sealed module design make it suitable for conveyor drive panels, crusher motor control centers, and ventilation fan starters where conventional communication modules would fail prematurely. Real-time current monitoring via DeviceNet allows predictive maintenance teams to identify bearing wear and rotor imbalance before catastrophic failure occurs.

Power Generation & Utilities: In thermal power plants, hydroelectric stations, and grid substations, auxiliary motor systems — cooling water pumps, fuel oil transfer pumps, forced draft fans — must operate with near-zero unplanned downtime. The 193-ECM-DNT provides the diagnostic transparency needed to integrate these motors into plant-wide DCS systems, enabling automated alarm management and coordinated shutdown sequences that protect both equipment and personnel.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operate in high-humidity, chemically aggressive environments where corrosion and condensation are constant threats. The 193-ECM-DNT’s wide humidity tolerance and its ability to report ground fault conditions — when paired with the 193-EC4 base unit — make it an ideal choice for pump motor protection in wet wells, chemical dosing stations, and aeration blower rooms.

Metallurgy & Steel Production: Rolling mills, electric arc furnaces, and continuous casting lines generate intense electromagnetic interference, radiated heat, and mechanical vibration. The 193-ECM-DNT’s IEC 61000-4 EMI compliance ensures that DeviceNet communication remains stable even in close proximity to large induction furnaces and high-current bus bars, enabling reliable motor protection data to reach the process control system without corruption or dropout.

Security & Quality FAQ

Q1: What warranty does the 193-ECM-DNT carry, and what does it cover?
Every 193-ECM-DNT shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects, functional failures, and communication faults under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing including DeviceNet communication handshake, node address configuration, and diagnostic data output validation. If a unit fails within the warranty period, we provide a replacement or full refund — no bureaucratic delays.

Q2: How do I verify compatibility with my existing E3 Plus overload relay?
The 193-ECM-DNT is compatible with all E3 Plus base units in the 193-EC series, including the 193-EC2, 193-EC4, and 193-EC5. It is not compatible with the older E1 Plus (193-EA series) or the E3 (193-ED series) without the ECM expansion port. If you are unsure of your base unit’s compatibility, share your existing part number with our technical team at [email protected] and we will confirm before you order.

Q3: Is long-term supply availability guaranteed for this module?
Yes. TOPNLMS maintains dedicated safety stock of high-demand Allen-Bradley E3 Plus accessories, including the 193-ECM-DNT, to support customers with ongoing maintenance and spare parts programs. We source from authorized distribution channels and verified surplus inventories, with full traceability documentation available upon request. For OEM customers or facilities requiring scheduled delivery contracts, contact us to discuss blanket order arrangements.

Q4: Can this module be used as a direct replacement in an existing DeviceNet network without reconfiguration?
In most cases, yes. The 193-ECM-DNT uses rotary switches for node address configuration, making field replacement straightforward. Set the replacement unit to the same node address as the failed unit, reconnect the DeviceNet cable and E3 Plus base unit, and the network master will automatically recognize the device. No software changes to the PLC program are required unless the EDS (Electronic Data Sheet) file version differs — in which case, a simple RSNetWorx for DeviceNet update resolves the issue. Our technical support team is available to assist with any replacement commissioning questions.
