Allen-Bradley 1783-BMS10CA Original Industrial Spare Stratix 5700 Compatible

Product Overview

Allen-Bradley 1783-BMS10CA Original Industrial Spare Stratix 5700 Compatible: System Stability & Industrial Spare Parts Maintenance Value

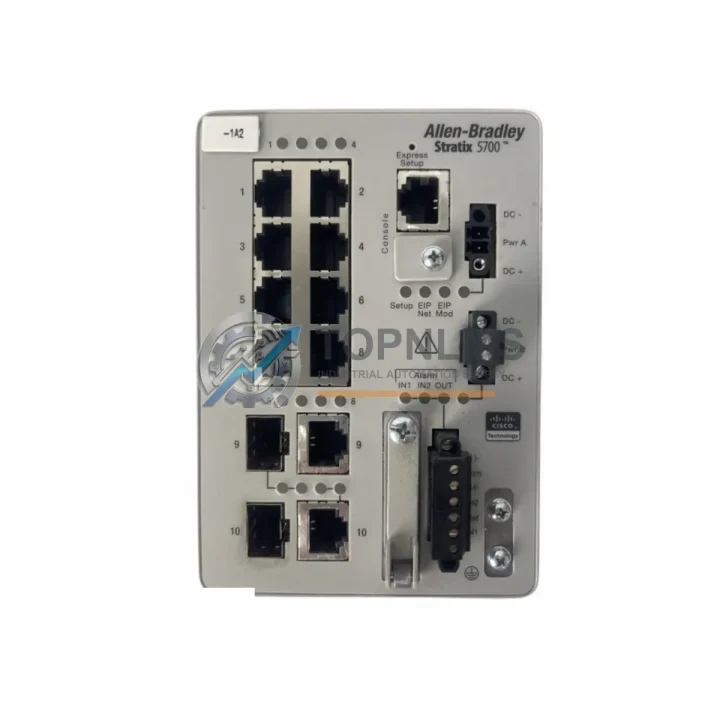

The Allen-Bradley 1783-BMS10CA is a 10-port managed industrial Ethernet switch from the Stratix 5700 series, engineered for demanding factory automation environments where network uptime is non-negotiable. As a genuine original spare part, the 1783-BMS10CA delivers the deterministic communication performance that Rockwell Automation ControlLogix, CompactLogix, and GuardLogix control architectures depend on. Whether you are managing a planned shutdown, responding to an unplanned network failure, or building a proactive spare parts inventory, having a verified 1783-BMS10CA on the shelf is one of the most cost-effective decisions a maintenance team can make.

Industrial Ethernet infrastructure is the backbone of modern PLC and DCS systems. A failed managed switch can cascade into full production line stoppages, affecting not only the network layer but also I/O communication, HMI visibility, and safety interlock integrity. The Stratix 5700 platform was designed with this reality in mind — offering IGMP snooping, QoS prioritization, VLAN segmentation, and EtherNet/IP optimization out of the box, all of which are critical for maintaining real-time communication between controllers, drives, and field devices.

Critical Technical Specs Table

Preventive Maintenance Strategy

When a 1783-BMS10CA is flagged for replacement during a scheduled maintenance window, experienced maintenance engineers know that the switch rarely fails in isolation. The surrounding network and control cabinet infrastructure should be inspected simultaneously to avoid repeat downtime events within the same maintenance cycle.

Begin by auditing the industrial-grade Cat5e/Cat6 Ethernet patch cables connecting the switch to field devices, drives, and remote I/O adapters. Degraded cable shielding or loose RJ45 terminations are a leading cause of intermittent packet loss that is often misdiagnosed as a switch fault. At the same time, inspect the 24 VDC power supply feeding the 1783-BMS10CA — units such as the Allen-Bradley 1606-XLP series power supplies are commonly paired with Stratix switches in the same control panel, and a marginal power supply under load can cause erratic switch behavior or unexpected reboots.

For systems running ControlLogix or CompactLogix architectures, the 1783-BMS10CA typically sits in the same network ring or star topology as 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules installed in the 1756 chassis. These modules should be checked for firmware currency and port error counters during the same inspection window. If the plant uses distributed remote I/O, the 1734-AENT or 1734-AENTR POINT I/O Ethernet adapters connected downstream of the switch are also worth verifying — a failing adapter can generate excessive broadcast traffic that degrades overall switch performance and increases CIP response latency across the entire network segment.

In facilities running older Stratix 5700 installations, it is common to find the switch co-located with 1783-SFP1GSX or 1783-SFP1GLX fiber SFP transceivers for long-distance uplinks to the plant backbone network. These transceivers have finite optical lifespans and should be tested for signal strength and bit error rate during any switch replacement event. Additionally, if the control cabinet houses a 1783-ETAP or 1783-ETAP2F Ethernet tap for passive network diagnostics, verify its configuration remains aligned with the replacement switch firmware version to avoid topology detection conflicts.

For plants with safety-rated systems, the GuardLogix controller and its associated 1791DS or 1732DS safety I/O modules rely on the same EtherNet/IP network segment. Any switch replacement must be followed by a network performance validation to confirm CIP Safety communication latency remains within the configured RPI (Requested Packet Interval) tolerances defined in the safety application. Finally, if the facility uses FactoryTalk View SE or ME HMI panels — or third-party HMI terminals — connected through the Stratix 5700 network, confirm HMI connectivity and tag update rates are fully restored to baseline after the replacement switch is commissioned and the network topology is re-established.

Strategic Replacement Solutions

The 1783-BMS10CA is a direct replacement for earlier Stratix 5700 10-port configurations and is backward compatible with existing EtherNet/IP network topologies built around Rockwell Automation’s Integrated Architecture. Unlike generic industrial switches, the 1783-BMS10CA supports the Cisco IOS-based management interface that Rockwell’s Studio 5000 Add-On Profile (AOP) integrates with natively — meaning replacement does not require network reconfiguration or controller program changes in most standard installations.

For aging plants that originally deployed the 1783-BMS10CA in a Device Level Ring (DLR) topology, the switch’s built-in DLR supervisor capability allows it to be dropped into an existing ring without topology redesign. This is a significant advantage over third-party alternatives that would require ring protocol reconfiguration and extended commissioning time — both of which translate directly into extended production downtime and increased labor costs.

Maintenance teams managing multi-site or multi-line facilities should consider stocking the 1783-BMS10CA as a standard shelf spare alongside other high-criticality network components. Given the switch’s role as a network hub for multiple controllers, drives, and I/O nodes, a single unit failure can affect dozens of field devices simultaneously. The cost of one unplanned production stoppage typically exceeds the cost of maintaining two or three spare units in inventory by a significant margin. TOPNLMS supplies the 1783-BMS10CA with full functional testing, original packaging where available, and a 12-month warranty covering defects in materials and workmanship — with dispatch typically within 1–3 business days for in-stock units.

Support FAQ

Q1: Is the 1783-BMS10CA supplied by TOPNLMS an original Allen-Bradley unit?
Yes. TOPNLMS sources and supplies original Allen-Bradley 1783-BMS10CA units. Each unit undergoes functional verification testing prior to shipment, including power-on self-test, port functionality check, and basic EtherNet/IP communication validation. A 12-month warranty is included with every order, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I verify compatibility with my existing Stratix 5700 network before installation?
The 1783-BMS10CA is compatible with all standard Stratix 5700 network topologies including star, ring (DLR), and linear configurations. Confirm your existing firmware version via Studio 5000 Logix Designer or the Cisco IOS CLI before installation. If your installation uses a specific AOP version or requires a particular firmware baseline, contact TOPNLMS with your requirements and we will advise on the appropriate unit configuration before shipment.

Q3: What is the typical lead time and how is the unit prepared for shipment?
In-stock units are typically dispatched within 1–3 business days. Each 1783-BMS10CA is tested for port functionality, power-on self-test completion, and basic EtherNet/IP communication before packaging. Units are shipped with anti-static protection and appropriate cushioning for international freight. Tracking information is provided upon dispatch. Express shipping options are available for urgent maintenance requirements.

Q4: Can the 1783-BMS10CA be used as a long-term lifecycle spare for a system no longer in active development?
Absolutely. Many facilities maintain Stratix 5700 infrastructure in legacy production lines that are no longer in active development but remain in continuous operation. Stocking the 1783-BMS10CA as a lifecycle spare is a recognized best practice for extending the operational life of these systems without requiring a full network infrastructure upgrade or controller migration project. TOPNLMS can assist with bulk spare procurement planning for multi-unit or multi-site requirements.
