Allen-Bradley 1771-P5E Ruggedized Power Supply Module

Product Overview

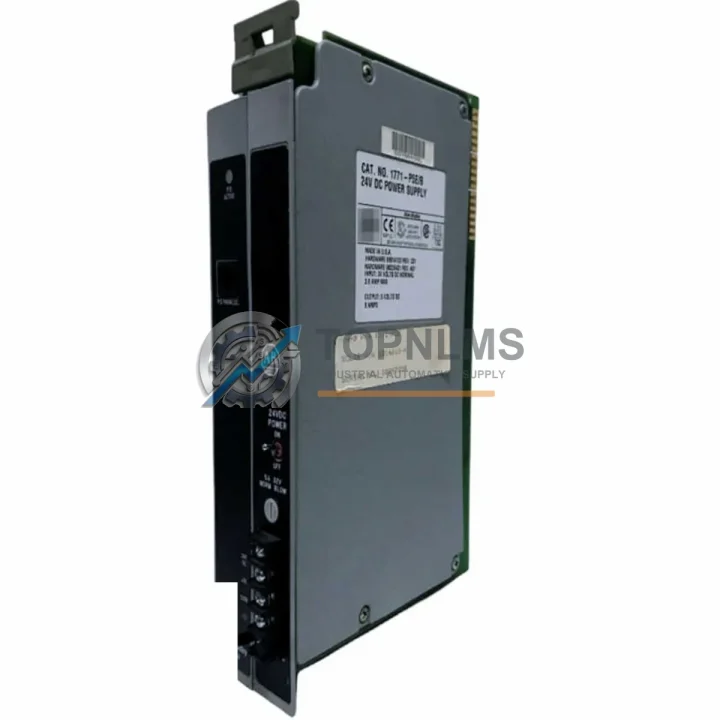

Allen-Bradley 1771-P5E Ruggedized Power Supply Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1771-P5E Power Supply Interface Module is engineered to deliver unwavering performance in the most demanding industrial environments. Designed as a critical component within the Rockwell Automation PLC-5 I/O chassis architecture, this module bridges the power supply and the backplane with precision-regulated voltage distribution, ensuring that every connected I/O module, processor, and communication adapter receives stable, conditioned power — even under extreme operating conditions.

In high-temperature foundries, dust-laden cement plants, vibration-intensive mining operations, and moisture-rich water treatment facilities, power integrity is non-negotiable. The 1771-P5E is built to sustain continuous operation where lesser components fail. Its robust backplane interface and regulated output rails protect downstream modules from voltage transients, ground loops, and electromagnetic interference (EMI) — common threats in environments with large motor drives, welding equipment, and high-frequency switching power supplies operating nearby.

For engineers managing PLC-5 processor modules such as the 1785-L40B or 1785-L80B, the 1771-P5E is the backbone that keeps the entire control rack alive. When paired with 1771-series digital and analog I/O modules — including the 1771-OBD output module and 1771-IFE analog input module — it ensures that field signals are processed without interruption, even during load fluctuations caused by simultaneous actuator switching or sensor polling cycles.

In oil and gas upstream facilities, the 1771-P5E supports control panels managing wellhead pressure regulation, where a momentary power disruption could trigger costly safety shutdowns. In power generation substations, it maintains the integrity of protection relay logic executed through the PLC-5 platform. Metallurgical plants running continuous casting lines rely on this module to sustain the precise timing sequences that coordinate cooling water valves, roller drives, and mold oscillation — all coordinated through the 1771 I/O chassis backplane.

The module is fully compatible with the 1771-A1B, 1771-A2B, 1771-A3B, and 1771-A4B I/O chassis configurations, making it a versatile spare for multi-rack PLC-5 installations. When integrated with 1771-SDN DeviceNet Scanner modules or 1771-KFX Data Highway Plus communication modules, the 1771-P5E ensures that network-critical racks maintain power stability during high-traffic communication cycles — preventing data loss or node dropouts that could compromise SCADA visibility.

For facilities running hybrid architectures that include Allen-Bradley 1756 ControlLogix or 1769 CompactLogix systems alongside legacy PLC-5 platforms, the 1771-P5E serves as the essential link that keeps the older infrastructure operational during phased migration projects. Replacing this module proactively — rather than reactively after a failure — eliminates unplanned downtime that can cost tens of thousands of dollars per hour in continuous process industries.

Safety-critical applications in chemical processing and pharmaceutical manufacturing depend on the 1771-P5E to power 1771-ASB Remote I/O Adapter modules that connect distributed field panels back to the central control room. Any instability in the power supply interface directly impacts the reliability of safety interlock logic, emergency shutdown sequences, and alarm management systems. The 1771-P5E’s proven design eliminates this risk.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1771-P5E does not operate in isolation — it is the power foundation for an entire ecosystem of protection, control, and communication modules. In a fully configured PLC-5 rack, the 1771-P7 Power Supply feeds regulated DC rails through the 1771-P5E interface, which then distributes conditioned power to every slot in the chassis. Digital output modules such as the 1771-OBD and 1771-OW16 rely on this stable power to drive field devices including solenoid valves, motor starters, and indicator lamps without voltage sag during simultaneous switching events.

Analog signal integrity — critical for PID control loops managing temperature, pressure, and flow — depends on the low-noise power environment that the 1771-P5E maintains for modules like the 1771-IFE Analog Input Module and 1771-OFE Analog Output Module. In safety-instrumented systems, the 1771-ASB Remote I/O Adapter uses this stable power backbone to maintain deterministic communication with remote I/O drops, ensuring that safety interlock logic executes without latency or data corruption.

Communication-intensive installations benefit equally: the 1771-KFX Data Highway Plus Interface Module and 1771-SDN DeviceNet Scanner require consistent power to sustain network token passing and node polling cycles. A power anomaly at the backplane level — prevented by a properly functioning 1771-P5E — can cause network timeouts that cascade into process upsets across the entire plant network. For control cabinets integrating PowerFlex 700 variable frequency drives and 1492-series terminal blocks, the 1771-P5E ensures the PLC-5 rack remains the stable command center amid high-current switching noise.

Application in Critical Infrastructure

Across critical infrastructure sectors, the Allen-Bradley 1771-P5E has earned its place as a trusted component in long-running control systems. In oil and gas production facilities, PLC-5 systems equipped with the 1771-P5E manage wellhead control panels, pipeline pressure regulation, and compressor station automation — environments where ambient temperatures fluctuate widely and electrical noise from variable frequency drives is constant. The module’s robust power interface prevents the voltage instability that could cause nuisance faults or, worse, undetected control errors.

In coal and hard-rock mining operations, the 1771-P5E supports conveyor control systems, ventilation fan automation, and hoisting equipment sequencing. These applications demand 24/7 availability with zero tolerance for unplanned stops. The module’s compatibility with the full 1771 I/O family means that maintenance teams can replace it quickly from stock without reconfiguring the rack or modifying the control program.

Municipal and industrial water treatment plants running PLC-5 platforms for pump station control, chemical dosing, and filtration sequencing depend on the 1771-P5E to maintain control system availability through humid, chemically aggressive environments. Similarly, electric power utilities use PLC-5 systems for substation automation and protection relay coordination, where the 1771-P5E ensures that the control rack remains energized even during grid disturbances that cause momentary voltage sags on the facility power supply.

In steel and aluminum smelting facilities, the extreme electromagnetic environment generated by arc furnaces and induction heaters makes power supply integrity paramount. The 1771-P5E’s design provides the isolation and filtering needed to keep PLC-5 processors and I/O modules operating correctly in these high-interference conditions, protecting the precision control of casting speeds, temperature profiles, and alloy composition sequences.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Allen-Bradley 1771-P5E?
The 12-month warranty covers all functional defects arising under normal operating conditions, including backplane interface failures, power regulation faults, and connector integrity issues. TOPNLMS provides direct replacement or repair support for any covered failure, with expedited processing to minimize your downtime exposure.

Q2: How is each 1771-P5E unit tested before shipment?
Every unit undergoes bench-level functional verification prior to dispatch, including power-on testing, backplane signal integrity checks, and visual inspection for connector damage, capacitor condition, and board-level anomalies. Units that do not meet OEM performance benchmarks are quarantined and not offered for sale.

Q3: Is the 1771-P5E compatible with all PLC-5 I/O chassis configurations?
Yes. The 1771-P5E is designed for use across the 1771-A1B through 1771-A4B chassis family and is compatible with all standard PLC-5 processor modules and 1771-series I/O modules. If you are integrating it into a non-standard or modified rack configuration, our technical team can advise on compatibility before shipment.

Q4: Can TOPNLMS support long-term or repeat supply of the 1771-P5E for ongoing maintenance programs?
Yes. TOPNLMS maintains stock of the 1771-P5E and related PLC-5 components to support planned maintenance schedules, emergency sparing programs, and capital project procurement. We can provide volume pricing, reserved stock agreements, and documentation packages to support your procurement and engineering teams.
