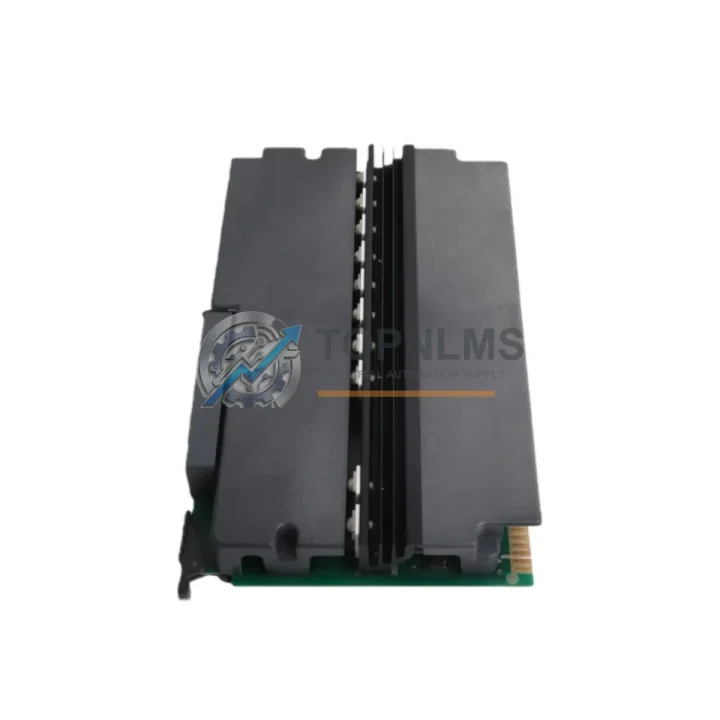

Allen-Bradley 1771-OB Ruggedized Digital Output Module

Product Overview

Allen-Bradley 1771-OB Ruggedized Digital Output Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1771-OB is a 16-point, 24VDC digital output module engineered for the PLC-5 platform and the 1771 I/O chassis system — one of Rockwell Automation’s most enduring and field-proven control architectures. Designed to operate continuously in demanding industrial environments, the 1771-OB delivers deterministic output switching, robust electrical isolation, and long-term signal integrity even under conditions of elevated temperature, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI). For facilities where downtime is not an option, this module represents a critical layer of control reliability.

In heavy industrial settings — including oil and gas processing plants, underground mining operations, thermal power stations, municipal water treatment facilities, steel mills, and continuous chemical production lines — the 1771-OB has demonstrated decades of stable performance. Its solid-state output design minimizes mechanical wear, while its compatibility with the full 1771 I/O chassis family ensures seamless integration into existing PLC-5 control cabinets without requiring rewiring or chassis replacement.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1771-OB does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical PLC-5 control cabinet, the module works in concert with the Allen-Bradley 1771-IB 16-point 24VDC digital input module, which handles field-side signal acquisition while the 1771-OB manages actuator-side switching. Together, they form a complete discrete I/O pair within the same 1771 chassis, reducing wiring complexity and simplifying cabinet layout.

For analog process control loops — such as flow, pressure, or temperature regulation — the Allen-Bradley 1771-OFE analog output module complements the 1771-OB by providing continuous 4–20mA or 0–10V signals to control valves and variable-speed drives. In applications where motor control is required, the 1771-OB output signals are frequently routed to Allen-Bradley PowerFlex series variable frequency drives (VFDs), enabling precise motor speed and torque management from the PLC-5 program.

Communication between the PLC-5 processor and remote I/O racks is handled by the Allen-Bradley 1771-ASB remote I/O adapter module, which allows the 1771-OB to be deployed in distributed chassis configurations across large plant floors — a common requirement in oil refinery and power plant environments. For time-critical safety functions, the system may also incorporate Allen-Bradley 1791DS safety I/O modules or dedicated safety relays, ensuring that the 1771-OB’s output signals are supervised by an independent safety layer compliant with IEC 61508 SIL requirements.

Power integrity is maintained by Allen-Bradley 1771-P4S or 1771-P7 power supply modules, which provide regulated 5VDC backplane power and 24VDC field power to the chassis. Surge protection and field-side wiring termination are typically managed through Phoenix Contact or Weidmüller terminal block assemblies mounted adjacent to the 1771 chassis, protecting the 1771-OB outputs from transient voltage spikes common in motor-heavy industrial environments. For facilities requiring network-level diagnostics, the Allen-Bradley 1785-ENET Ethernet interface module enables remote monitoring of PLC-5 program status and I/O health, including the operational state of 1771-OB output points.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the Allen-Bradley 1771-OB controls solenoid valves, shutdown actuators, and pump motor starters across wellhead control panels and pipeline compressor stations. Its optical isolation and robust output driver circuitry protect the PLC-5 backplane from the high-energy transients generated by large solenoid coils and contactor coils switching under load — a daily occurrence in these environments.

In underground and open-pit mining, where vibration from blasting, conveyor systems, and heavy mobile equipment is constant, the 1771-OB’s solid-state design eliminates the contact bounce and mechanical fatigue that would affect relay-based output systems. Mining ventilation control, ore conveyor sequencing, and dewatering pump management are all typical applications where this module’s ruggedness directly translates to operational continuity.

At thermal and hydroelectric power generation facilities, the 1771-OB participates in turbine auxiliary control, cooling water pump sequencing, and switchgear interlock logic. The module’s deterministic output response time — critical for protective relay coordination — makes it a trusted component in generator excitation and load-shedding control schemes.

In municipal and industrial water treatment plants, the 1771-OB drives chemical dosing pump contactors, UV disinfection system enables, and filter backwash valve actuators. The module’s compatibility with the full PLC-5 instruction set, including ladder logic, function block, and structured text programming, allows water utility engineers to implement complex sequencing logic without hardware changes.

For metallurgical and steel production environments — where ambient temperatures near furnaces can approach the upper limits of the module’s rated operating range — the 1771-OB is typically installed in climate-controlled control rooms or NEMA 4X enclosures with forced-air cooling, ensuring continuous operation through extended production campaigns without unplanned shutdowns.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Allen-Bradley 1771-OB?
All 1771-OB modules supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. If a module fails within the warranty period due to a verified defect, we provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery. Warranty claims are processed within 5 business days upon receipt of the returned module.

Q2: How is each 1771-OB module tested before shipment?
Every module undergoes pre-shipment functional verification, including backplane communication check, output point activation test across all 16 channels, and visual inspection for physical damage, corrosion, or component anomalies. Modules sourced from original factory stock or certified refurbishment channels are prioritized. A test report is available upon request for customers with incoming inspection requirements.

Q3: Is the 1771-OB compatible with all PLC-5 processor variants and 1771 chassis sizes?
Yes. The 1771-OB is compatible with all Allen-Bradley PLC-5 processor variants (5/10 through 5/80) and all standard 1771 I/O chassis configurations, including 4-slot, 8-slot, 12-slot, and 16-slot chassis. It occupies a single I/O slot and requires no special keying beyond the standard 1771 module keying bands. Customers migrating from older 1771-OA or 1771-OC modules should verify field wiring voltage compatibility before substitution.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1771-OB for ongoing maintenance programs?
Absolutely. TOPNLMS maintains dedicated inventory of Allen-Bradley 1771 series I/O modules to support planned maintenance, emergency replacement, and capital spares programs. We can provide scheduled delivery agreements, reserved stock allocation, and consolidated shipments for multi-site industrial customers. For facilities managing PLC-5 systems through extended lifecycle programs, we recommend establishing a standing spare parts arrangement to eliminate lead-time risk during critical production periods. Contact us at [email protected] or call +86 18359293191 to discuss your procurement requirements.
