Allen-Bradley 1771-DXPS Original Industrial Spare PLC-5 Compatible

Product Overview

Allen-Bradley 1771-DXPS Original Industrial Spare PLC-5 Compatible: System Stability & Industrial Spare Parts Maintenance Value

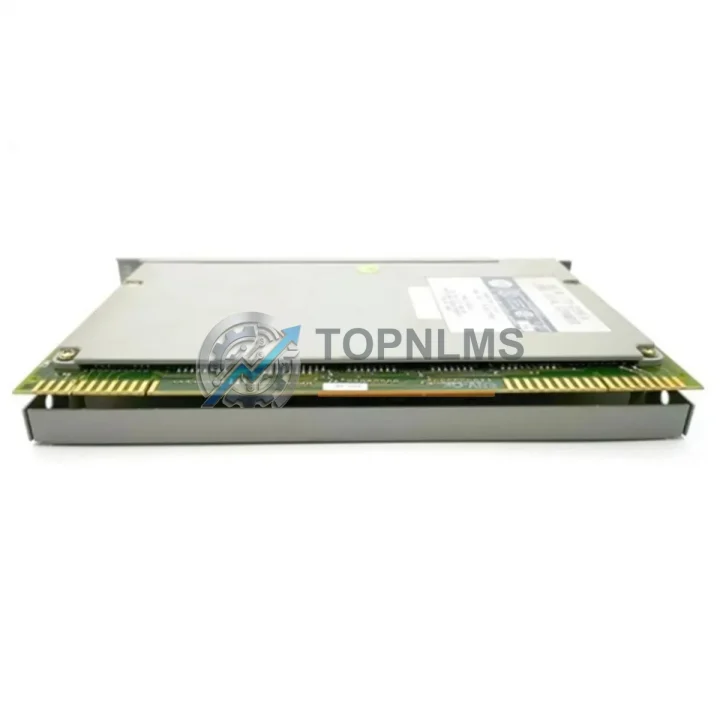

The Allen-Bradley 1771-DXPS Control Coprocessor is a critical spare part for facilities running the Rockwell Automation PLC-5 platform — one of the most widely deployed programmable logic controller families in heavy industry, process manufacturing, and utility automation. As legacy PLC-5 systems continue to operate well beyond their original design life, maintaining a verified stock of original spare modules like the 1771-DXPS is no longer optional — it is a core pillar of any responsible preventive maintenance and business continuity strategy.

Unplanned downtime caused by a failed coprocessor module can halt an entire production line within seconds. The 1771-DXPS serves as the computational extension of the PLC-5 rack, offloading intensive arithmetic, data manipulation, and custom algorithm execution from the main processor. When this module fails, the host controller loses its extended processing capability, triggering faults that can cascade across I/O racks, operator HMI panels, and upstream SCADA systems. Having a tested, original replacement unit on-site reduces mean time to repair (MTTR) from days to minutes.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for PLC-5-based control cabinets extends well beyond replacing a single module. When scheduling a planned outage to inspect or replace the 1771-DXPS coprocessor, maintenance engineers should treat the intervention as a full cabinet health audit. The coprocessor shares its operating environment with a range of interdependent components, and the failure of any one of them can mask or accelerate the degradation of others.

Begin with the 1771-P4 or 1771-P7 chassis power supply module — an aging or under-spec power supply is one of the leading causes of intermittent coprocessor faults and memory corruption. Measure output voltages under load and replace if ripple exceeds manufacturer tolerances. Simultaneously, inspect the 1771 I/O chassis backplane for corrosion, bent connector pins, or cracked card guides that could cause intermittent slot contact with the 1771-DXPS.

Next, audit the 1771-OBD or 1771-OW16 digital output modules and 1771-IBD digital input modules seated in adjacent slots. Coprocessor-driven control loops often write directly to output modules; a degraded output module can produce erratic field behavior that is incorrectly diagnosed as a coprocessor fault. Similarly, review the 1771-IFE or 1771-IFM analog input modules if the coprocessor is handling PID or analog computation tasks — signal drift from aging analog modules will corrupt the coprocessor’s calculation results.

For systems using the PLC-5 in a networked architecture, inspect the 1785-KA5 or 1785-KE Data Highway Plus communication adapter and associated DH+ trunk cable and terminators. A degraded network segment can cause the coprocessor to lose synchronization with peer controllers, triggering nuisance faults. If the cabinet includes a 1771-SDN DeviceNet Scanner module, verify its configuration file integrity after any coprocessor replacement, as coprocessor memory maps may reference DeviceNet node addresses.

Do not overlook passive components: 1771 series terminal block assemblies and I/O wiring arms should be inspected for loose terminations, insulation breakdown, and corrosion — particularly in high-humidity or chemically aggressive environments. Fuse modules protecting 24VDC field circuits should be tested and replaced on a scheduled basis rather than reactively. Finally, if the control cabinet includes a PanelView 550 or PanelView 900 HMI operator terminal communicating with the PLC-5 host processor, verify that the HMI firmware and tag database remain compatible after the coprocessor module swap, as some HMI screens may reference coprocessor data files directly.

Strategic Replacement Solutions

The 1771-DXPS addresses one of the most challenging scenarios in industrial asset management: maintaining operational continuity on a platform that is no longer in active production. Rockwell Automation has transitioned its current portfolio to the ControlLogix and CompactLogix families, meaning that original 1771-series modules are no longer manufactured to order. Every verified original unit available in the secondary market represents a finite and diminishing resource.

For facilities that cannot justify a full migration to the 1756 ControlLogix platform within the current budget cycle, stocking original spare modules is the most cost-effective strategy to extend system life by 3–7 years. The 1771-DXPS is a direct slot-in replacement for a failed unit — no re-engineering of the control program, no I/O remapping, and no requalification of the safety interlock logic is required, provided the replacement unit carries the same firmware revision. This dramatically reduces the risk and cost associated with emergency maintenance events.

Facilities managing multiple PLC-5 racks across a plant should consider a consolidated spare parts inventory strategy: one 1771-DXPS unit per two to three racks, stored in a climate-controlled ESD-safe environment, provides adequate coverage for most failure scenarios while minimizing capital tied up in inactive inventory. Pair this with a documented module swap procedure — including processor keyswitch position, memory backup verification, and post-swap I/O force check — to ensure any qualified technician can execute the replacement safely and efficiently.

Support FAQ

Q1: Is the 1771-DXPS tested before shipment?
Yes. Every unit undergoes functional bench testing prior to dispatch. Power-on verification, backplane communication checks, and basic operational diagnostics are performed. A test report is available upon request for quality-critical procurement processes.

Q2: What warranty coverage is provided?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Damage caused by incorrect installation, overvoltage, or environmental exposure beyond rated limits is excluded.

Q3: How do I verify firmware compatibility before installation?
The firmware revision is marked on the module label. Cross-reference this against your existing 1771-DXPS unit or your PLC-5 processor’s coprocessor configuration file (typically stored in the N or integer file block). If you require a specific firmware revision, please contact us before ordering and we will confirm availability from current stock.

Q4: Can this module be used as a long-term inventory spare for multiple sites?
Yes. The 1771-DXPS is suitable for centralized spare parts pooling across multiple facilities running PLC-5 platforms. Store units in original anti-static packaging in a temperature- and humidity-controlled environment. Recommended storage conditions: 15°C–25°C, relative humidity below 60%, away from direct sunlight and magnetic fields. Periodic power-on testing every 12–18 months is recommended for long-term stored units.
