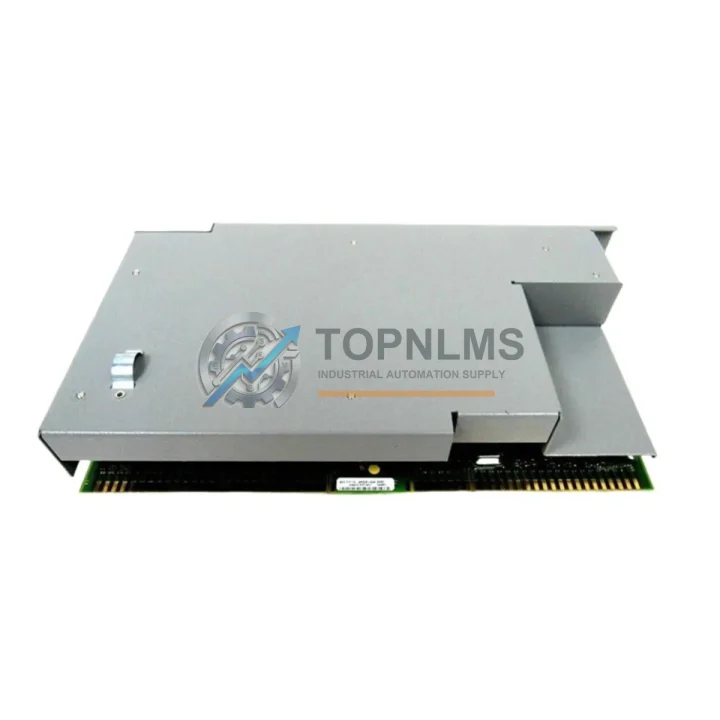

Allen-Bradley 1771-ACN Ruggedized ControlNet Adapter Module

Product Overview

Allen-Bradley 1771-ACN Ruggedized ControlNet Adapter Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1771-ACN ControlNet I/O Adapter Module is engineered to deliver uncompromising communication reliability within the 1771 I/O chassis platform, even under the most demanding industrial conditions. Designed for continuous operation in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI), the 1771-ACN serves as the critical communication bridge between the ControlNet network and the 1771 I/O chassis backplane. Where production cannot afford to stop, this module provides the deterministic, high-speed data transfer that keeps control systems synchronized and safe.

In heavy industrial facilities — from petrochemical refineries and offshore platforms to underground mining operations and steel mill automation floors — the 1771-ACN maintains stable ControlNet communication at 5 Mbps, ensuring that every I/O scan cycle is completed on schedule. Its robust housing and conformal-coated circuitry resist corrosive atmospheres and condensation, making it a trusted backbone component in control cabinets exposed to harsh ambient conditions. Whether installed in a standalone 1771 chassis or integrated into a larger Rockwell Automation architecture, the 1771-ACN delivers the deterministic performance that safety-critical and process-critical applications demand.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1771-ACN does not operate in isolation — it is the communication anchor for an entire ecosystem of Allen-Bradley 1771-series I/O modules and Rockwell Automation control components. In a typical control cabinet deployment, the adapter works in concert with discrete input modules such as the 1771-IB16 (16-point 24 VDC input) and output modules such as the 1771-OB16, routing real-time field data across the ControlNet backbone to the host PLC processor. For process-intensive applications, analog I/O modules including the 1771-IF4 (4-channel analog input) and 1771-OF4 (4-channel analog output) rely on the 1771-ACN’s deterministic scan cycle to maintain precise loop control.

At the controller level, the 1771-ACN is commonly paired with Allen-Bradley PLC-5 processors — including the PLC-5/40C15 and PLC-5/80C15 — which natively support ControlNet scheduling and unscheduled messaging. In larger distributed architectures, the 1756-CNB ControlNet Bridge Module for the ControlLogix platform can serve as the upstream network node, allowing the 1771 chassis to function as a remote I/O subsystem under a modern Logix-based control strategy. This migration path is particularly valuable for facilities that are modernizing legacy PLC-5 systems while retaining existing 1771 I/O infrastructure.

Power integrity is equally critical in harsh environments. The 1771-P4S and 1771-P7 chassis power supplies provide the regulated 5 VDC and 24 VDC rails that the 1771-ACN and co-resident I/O modules depend on. In high-vibration or high-EMI environments, supplementing the control cabinet with a dedicated industrial UPS and surge protection devices on the ControlNet coaxial or fiber trunk ensures that transient disturbances on the plant floor do not propagate into the communication layer. Safety relay modules and safety I/O components installed in adjacent chassis slots further reinforce the overall system’s functional safety posture, supporting SIL-rated interlocks and emergency shutdown sequences that depend on uninterrupted I/O communication through the 1771-ACN.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1771-ACN is deployed in wellhead control panels, compressor station automation cabinets, and pipeline SCADA remote terminal units. Its ability to sustain ControlNet communication through wide ambient temperature swings — from sub-zero winter mornings to high-temperature summer afternoons in desert environments — makes it indispensable for continuous process monitoring and emergency shutdown system (ESD) integration.

In underground mining operations, where coal dust, silica particulate, and mechanical shock are constant threats, the 1771-ACN’s conformal-coated PCB and robust backplane connector provide the physical durability required for conveyor control, ventilation management, and hoist automation. Downtime in a mine is not merely a production loss — it is a safety event. The 1771-ACN’s proven mean time between failures (MTBF) and the availability of tested replacement stock from TOPNLMS ensure that maintenance teams can restore system integrity rapidly.

In power generation and grid substations, the module supports turbine control, generator excitation monitoring, and switchgear automation, where deterministic I/O scan times are non-negotiable. Water treatment and wastewater facilities rely on the 1771-ACN for pump station control, chemical dosing automation, and SCADA integration across geographically distributed lift stations. In metallurgical and steel mill environments, the module withstands radiated heat from furnaces, high-frequency EMI from variable frequency drives (VFDs), and the continuous mechanical vibration of rolling mill equipment — conditions that would rapidly degrade lesser communication hardware.

Security & Quality FAQ

Q1: Does the 1771-ACN come with a warranty, and how is it tested before shipment?
Every 1771-ACN unit supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification testing — including backplane communication checks and ControlNet network initialization — to confirm it meets Allen-Bradley factory performance specifications. Units that do not pass testing are not shipped.

Q2: Is this module compatible with my existing 1771 chassis and PLC-5 processor?
Yes. The 1771-ACN is designed for direct installation into any standard Allen-Bradley 1771 I/O chassis slot. It is fully compatible with PLC-5 processors that support ControlNet scheduling (e.g., PLC-5/40C15, PLC-5/80C15) and can also be used as a remote adapter node under a ControlLogix or CompactLogix controller equipped with a ControlNet bridge module. No chassis modification is required.

Q3: Can this module be safely used in hazardous or classified areas?
The 1771-ACN is rated for installation in standard industrial control cabinets (IP20 environment). For deployment in classified hazardous locations (Zone 1/2 or Division 1/2), it must be installed within a certified explosion-proof or purged-and-pressurized enclosure that meets the applicable IECEx, ATEX, or NEC/CEC requirements. TOPNLMS can advise on appropriate enclosure solutions for your specific site classification.

Q4: What is TOPNLMS’s long-term supply and replacement support for the 1771-ACN?
TOPNLMS maintains dedicated inventory of the 1771-ACN and related 1771-series components to support both planned maintenance programs and emergency replacement scenarios. Given that Allen-Bradley has transitioned newer architectures to the ControlLogix platform, availability of genuine 1771-series modules on the open market is increasingly constrained. TOPNLMS sources, inspects, and warehouses these legacy components specifically to support facilities that depend on 1771-based systems for long-term continuous production. Contact our team to discuss volume pricing, consignment stock arrangements, or scheduled delivery programs.
