Allen-Bradley 1769-OF4CI Original Industrial Spare Compact I/O Compatible

Product Overview

Allen-Bradley 1769-OF4CI Original Industrial Spare Compact I/O Compatible: System Stability & Industrial Spare Parts Maintenance Value

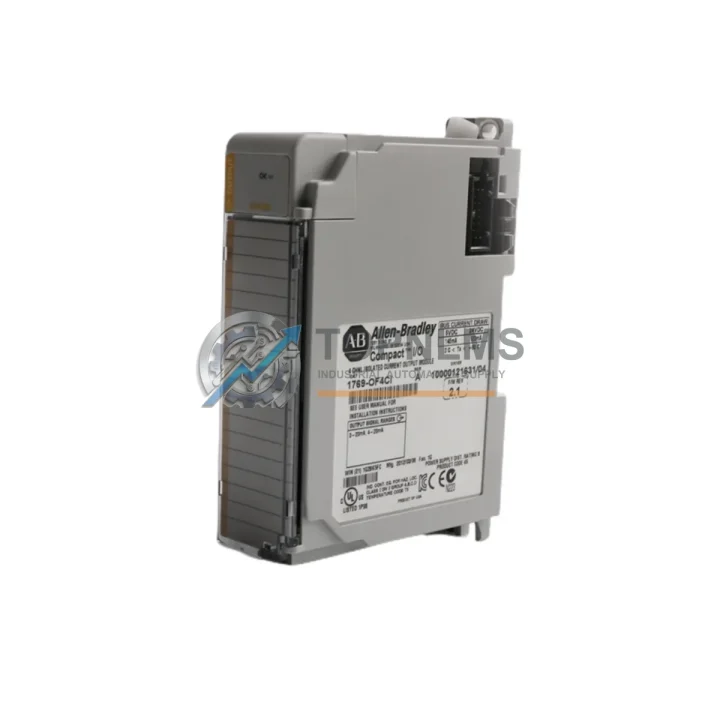

The Allen-Bradley 1769-OF4CI is a 4-channel isolated analog current output module designed for the Rockwell Automation Compact I/O (1769 series) platform. In demanding manufacturing environments — from automotive assembly lines to chemical processing plants — the 1769-OF4CI plays a critical role in maintaining precise process control. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a strategic spare parts inventory, having a verified original 1769-OF4CI on hand is one of the most cost-effective decisions a maintenance team can make.

Analog output modules are among the most failure-prone components in a PLC control cabinet, particularly in high-cycle or thermally stressed environments. A failed output channel can cause a process loop to lose control, triggering downstream alarms, product quality deviations, or full line shutdowns. The 1769-OF4CI’s isolated channel architecture ensures that a fault on one output loop does not cascade into adjacent channels — a key advantage when controlling multiple independent actuators or valve positioners from a single module slot.

Critical Technical Specs Table

Preventive Maintenance Strategy

A proactive maintenance strategy for any Compact I/O system goes well beyond replacing a single module. When a 1769-OF4CI is flagged for replacement during a scheduled outage, experienced maintenance engineers use the opportunity to audit the entire control cabinet. The 1769 backplane bus connector and adjacent modules — including the 1769-IF4 analog input module and 1769-IF8 8-channel analog input module — should be inspected for oxidation on the bus connectors and signs of thermal stress on the PCB.

The 1769-OB16 digital output module and 1769-IQ16 digital input module are frequently installed in the same rack as the 1769-OF4CI and share the same backplane power budget. If the analog output module has failed due to a power surge or transient, these digital I/O modules should be tested as well. Similarly, the 1769-PA2 power supply or 1769-PB2 24 VDC power supply that feeds the Compact I/O rack should be load-tested — a degraded power supply is a common root cause of intermittent analog output faults that are misdiagnosed as module failures.

For systems using the 1769-OF4CI to drive valve positioners or current-to-pressure (I/P) transducers, the field wiring and terminal blocks deserve equal attention. Loose or corroded connections at the 1769-OF4CI field wiring terminal block can introduce loop resistance errors that shift the 4–20 mA signal outside calibration tolerance. Replacing the terminal block at the same time as the module eliminates this variable and reduces the risk of a repeat fault call.

In systems where the CompactLogix controller — such as the 1769-L32E or 1769-L36ERM — communicates over EtherNet/IP, the 1783-US5T unmanaged Ethernet switch and associated patch cables should be inspected for physical damage and port status. A degraded network connection can cause the controller to lose communication with the analog output module, triggering a fault state that mimics a hardware failure. Keeping a spare 1769-SDN DeviceNet scanner module or 1769-SM2 serial module in inventory is also advisable for older hybrid architectures that mix fieldbus and serial communication.

Finally, for facilities running legacy MicroLogix 1500 systems alongside newer CompactLogix platforms, maintaining a small buffer stock of the 1769-ECR right-end cap and 1769-ECL left-end cap is a low-cost insurance policy. These end caps are frequently overlooked in spare parts planning but are essential for bus integrity — a cracked or missing end cap can cause intermittent backplane faults that are extremely difficult to diagnose under production pressure.

Strategic Replacement Solutions

The 1769-OF4CI is a direct replacement for earlier Compact I/O analog output modules used in legacy MicroLogix 1500 and first-generation CompactLogix systems. Its isolated channel design makes it backward-compatible with existing field wiring configurations, meaning maintenance teams can swap the module without rewiring the terminal block or reconfiguring the controller program — provided the replacement module is configured with the same output data format (engineering units or raw/proportional) as the original.

For facilities managing end-of-life control systems where the original module is no longer available through standard distribution channels, sourcing a verified original 1769-OF4CI from a specialist industrial spare parts supplier is the most reliable path to restoring system operation without a costly platform migration. A platform migration — replacing a CompactLogix system with a newer ControlLogix or Micro800 architecture — typically requires months of engineering, commissioning, and operator retraining. A single verified spare module, by contrast, can restore production within hours.

When evaluating replacement modules, buyers should confirm that the firmware revision of the replacement is compatible with the existing controller firmware. Rockwell Automation periodically releases firmware updates that affect module behavior, and a mismatch between controller and module firmware can cause unexpected faults. All 1769-OF4CI units shipped from TOPNLMS are tested for electrical performance across all four output channels prior to dispatch, and each unit is accompanied by a test record confirming channel accuracy within specification.

Support FAQ

Q1: What is the warranty coverage for the 1769-OF4CI supplied by TOPNLMS?
All 1769-OF4CI modules are covered by a 12-month warranty from the date of shipment. The warranty covers electrical performance defects and channel output failures under normal operating conditions. Units are tested before dispatch, and a test record is available upon request.

Q2: How do I verify compatibility between the 1769-OF4CI and my existing CompactLogix or MicroLogix system?
The 1769-OF4CI is compatible with all 1769 Compact I/O bus systems, including MicroLogix 1500 and CompactLogix L-series controllers. Confirm that your controller firmware supports the module’s catalog number by checking the Rockwell Automation Product Compatibility and Download Center (PCDC). If you are unsure, contact us with your controller catalog number and firmware revision and we will advise before shipment.

Q3: What is the recommended spare parts inventory strategy for analog output modules?
For production lines with high uptime requirements, we recommend maintaining a minimum of one spare 1769-OF4CI per control cabinet that uses this module type. For facilities with multiple cabinets or 24/7 operations, a buffer of two to three units per site is advisable. Analog output modules in thermally demanding environments (near furnaces, compressors, or high-ambient areas) should be inspected every 12 months and replaced on a 3–5 year preventive cycle regardless of fault history.

Q4: Can the 1769-OF4CI be shipped internationally, and what is the typical lead time?
Yes, TOPNLMS ships the 1769-OF4CI worldwide. In-stock units are dispatched within 1–3 business days of order confirmation. International shipments are handled via DHL, FedEx, or UPS Express, with typical transit times of 3–7 business days depending on destination. All units are packaged in anti-static ESD bags with protective foam to prevent transit damage.
