Allen-Bradley 1769-OF2 Original Industrial Spare CompactLogix Compatible

Product Overview

Allen-Bradley 1769-OF2 Original Industrial Spare CompactLogix Compatible: System Stability Through Verified Analog Output Replacement

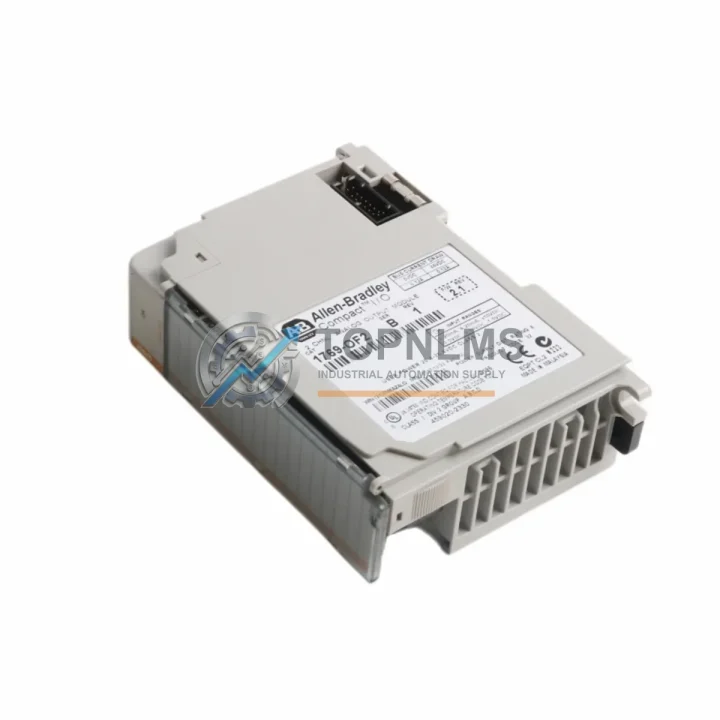

The Allen-Bradley 1769-OF2 is a 2-channel analog output module designed for the CompactLogix 1769 series platform — one of the most widely deployed small-to-mid-range PLC architectures in discrete and process manufacturing. When this module fails or degrades, the consequences extend beyond a single I/O point: the entire analog control loop — whether driving a variable frequency drive, a proportional valve, or a process transmitter — loses its command signal. Sourcing a verified original replacement is not optional; it is the fastest path back to stable, calibrated production.

At TOPNLMS, every 1769-OF2 unit is sourced from authorized supply channels, subjected to pre-shipment functional verification, and dispatched with a 12-month warranty. Our inventory is maintained specifically to support maintenance engineers who cannot afford multi-week lead times from OEM distribution. Whether you are responding to an unplanned shutdown or building a preventive spare parts buffer, the 1769-OF2 ships ready to install.

Critical Technical Specs

Preventive Maintenance Strategy

Analog output failures rarely occur in isolation. In a typical CompactLogix control cabinet, the 1769-OF2 shares a backplane with digital I/O modules, communicates through a common power supply rail, and drives field devices that have their own wear profiles. A disciplined maintenance strategy treats the 1769-OF2 replacement as the trigger for a broader cabinet inspection.

Begin with the 1769-PA2 or 1769-PB2 power supply module: output voltage ripple and load regulation degrade over time and can introduce calibration drift in analog channels before the module itself fails. Verify output voltage under full load. Next, inspect the 1769-IQ16 or 1769-IQ32 digital input modules sharing the same backplane — connector oxidation and terminal loosening affect all modules equally, not just the one that triggered the alarm.

Check the 1769-IF4 or 1769-IF8 analog input modules in the same rack. If the analog output loop is degraded, the feedback signal from the field transmitter — often wired back through an analog input — may also be carrying noise or offset errors. Replacing the output module without verifying the input side leaves a latent fault in the loop.

For installations using EtherNet/IP communication, inspect the 1769-L3xE or 1769-AENTR adapter firmware version and connection health. A module swap that triggers a controller fault can expose pre-existing communication configuration issues. Similarly, if the cabinet includes a 1769-SDN DeviceNet scanner module, verify that the node table is intact after the replacement and that all field devices re-establish communication cleanly.

Terminal blocks and wiring are the most overlooked failure point in analog circuits. Inspect 1492-series terminal blocks and associated wiring ferrules on both the output and return conductors. Loose terminations at the module connector or at the field junction box introduce resistance that shifts the 4–20 mA signal by several microamps — enough to cause process deviation alarms without triggering a module fault code.

If the controlled field device is a variable frequency drive or a proportional valve positioner, schedule a calibration verification of that device immediately after the 1769-OF2 is replaced. The new module’s output accuracy is factory-calibrated; the field device’s input scaling may have drifted independently. For facilities running Kinetix servo drives or PowerFlex 525/755 VFDs on analog reference signals, this calibration step is critical to restoring process accuracy.

Finally, update your spare parts register. A single 1769-OF2 on the shelf is a minimum; best practice for high-criticality lines is two units — one for immediate replacement and one for bench testing during root-cause analysis. Pair it with a spare 1769-PA2 power supply and at least one spare analog input module to cover the full analog signal chain.

Strategic Replacement Solutions

The 1769-OF2 has been in production for over two decades, and many facilities are running early-series units that are approaching or have exceeded their rated service life. Rockwell Automation’s published MTBF figures for compact I/O modules assume controlled environmental conditions; in practice, modules in high-ambient-temperature enclosures, dusty environments, or locations subject to vibration age faster.

For facilities still operating on RSLogix 5000 v16–v20 projects, the 1769-OF2 replacement is fully backward-compatible — no program changes are required provided the module series letter is the same or later. If you are migrating from an earlier series (Series A to Series B), verify the module properties in your RSLogix/Studio 5000 project and update the series designation to avoid a major fault on first scan.

For legacy systems where the original 1769-OF2 is no longer available through standard distribution, TOPNLMS maintains stock specifically to bridge this gap. Our units are tested against the original Rockwell Automation factory acceptance criteria, including output accuracy, channel isolation, and backplane communication integrity. This means you receive a module that behaves identically to the original — no re-engineering, no PLC program modifications, no re-commissioning of the field loop beyond standard calibration verification.

Facilities managing multiple CompactLogix cells can reduce per-unit spare cost by consolidating procurement. A standing purchase order for 1769-OF2 units — combined with complementary analog I/O modules — reduces emergency freight costs and ensures that maintenance teams always have a tested spare available before the next planned shutdown window.

Support FAQ

Q1: Is this a genuine Allen-Bradley 1769-OF2 or a compatible aftermarket unit?
This is an original Allen-Bradley 1769-OF2 module sourced through verified industrial supply channels. It is not a clone, compatible substitute, or remanufactured unit. Every module is pre-shipment tested for output accuracy, channel isolation, and backplane communication before dispatch.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the published environmental specifications. Warranty claims are processed directly through TOPNLMS; contact [email protected] with your order number and a description of the fault.

Q3: Can I install this module without modifying my existing PLC program?
In most cases, yes. The 1769-OF2 is a direct drop-in replacement for any existing 1769-OF2 in the same series. If you are replacing a different-series unit, verify the module series in your Studio 5000 or RSLogix 5000 project and update accordingly to prevent a major fault on controller startup. No I/O mapping or ladder logic changes are required for same-series replacements.

Q4: How quickly can this module ship, and what documentation is included?
In-stock units ship within 1–2 business days. Each module is dispatched with a pre-shipment test record and a 12-month warranty certificate. Express international shipping is available. Contact us at [email protected] or +86 18359293191 to confirm current stock and lead time before placing your order.
