Allen-Bradley 1769-L35CR Original Industrial Spare CompactLogix Compatible

Product Overview

Allen-Bradley 1769-L35CR Original Industrial Spare CompactLogix Compatible: System Stability and Industrial Spare Parts Maintenance Value

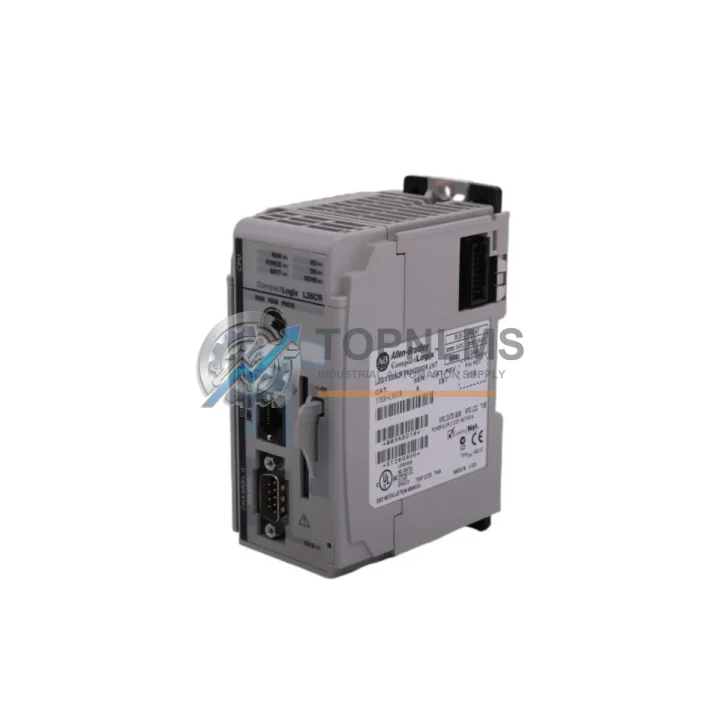

The Allen-Bradley 1769-L35CR is a CompactLogix 1.5MB ControlNet controller manufactured by Rockwell Automation, designed for mid-range discrete and process control applications. As a proven workhorse in manufacturing lines, packaging systems, material handling conveyors, and process automation cells, the 1769-L35CR delivers deterministic ControlNet communication alongside the full power of the Logix5000 instruction set. Sourcing a verified original spare unit of the 1769-L35CR is one of the highest-value investments a maintenance team can make to protect system uptime, reduce mean time to repair (MTTR), and extend the operational life of existing CompactLogix infrastructure without costly platform migrations.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance inspection of any CompactLogix system built around the 1769-L35CR should extend well beyond the controller itself. The 1769 backplane is a shared electrical bus, meaning degradation in any adjacent module can introduce noise, communication faults, or unexpected controller resets. During planned downtime or annual shutdowns, maintenance engineers should simultaneously inspect and, where necessary, replace the 1769-PA2 or 1769-PB2 power supply module — the most common single point of failure in a CompactLogix chassis. A worn capacitor bank inside the power supply can cause intermittent brownouts that manifest as controller faults rather than power supply alarms, making root-cause diagnosis unnecessarily complex.

ControlNet communication integrity depends heavily on the physical layer. Inspect the 1786-RPA ControlNet repeater and all 1786-BNC coaxial tap connectors for corrosion, mechanical damage, or impedance mismatch. A single faulty tap can degrade the entire ControlNet segment and trigger scheduled output faults on the 1769-L35CR. Alongside the communication layer, verify the condition of the 1769-IQ16 digital input module and 1769-OB16 digital output module — these are the most frequently cycled I/O modules in discrete manufacturing environments and are subject to contact wear and thermal stress over multi-year service cycles.

For mixed analog and discrete applications, the 1769-IF4 analog input module should be calibrated annually and inspected for drift. Signal isolation between the field device and the controller is critical; consider adding a signal isolator or loop-powered isolator on high-noise 4–20 mA loops feeding the 1769-IF4 to protect the module from ground loops and transient spikes. Similarly, the 1769-OF2 analog output module should be verified against known reference loads to confirm output accuracy has not drifted beyond process tolerances.

Terminal blocks and wiring within the control cabinet deserve equal attention. Loose or oxidized connections on 1492-series terminal blocks are a leading cause of intermittent I/O faults that are difficult to reproduce during scheduled inspections but cause nuisance trips during production. Torque-check all field wiring terminations and replace any discolored or heat-stressed terminal blocks. If the system includes a 1769-SDN DeviceNet scanner module for distributed I/O or drive communication, verify the DeviceNet network health and inspect the trunk cable for insulation damage, particularly in areas subject to mechanical flexing or chemical exposure.

Finally, review the battery status on the 1769-L35CR. The onboard lithium battery maintains the real-time clock and retains program memory during power loss. Replace the battery proactively every 2–3 years regardless of the low-battery indicator, and keep at least one spare battery in your local stockroom. Pair this with a review of the 1769-L35CR firmware revision — running the latest compatible firmware reduces exposure to known communication and instruction execution bugs documented in Rockwell Automation product notices.

Strategic Replacement Solutions

The 1769-L35CR occupies a critical position in the CompactLogix product family as a ControlNet-native controller with 1.5 MB of user memory. Many facilities that deployed this controller in the mid-2000s through early 2010s are now facing the challenge of maintaining systems that are no longer in active production by Rockwell Automation. Rather than undertaking a full platform migration to the current CompactLogix 5380 or GuardLogix 5380 family — a project that typically requires months of engineering effort, new I/O hardware, and extensive validation — sourcing a verified original spare 1769-L35CR is the most cost-effective and operationally safe strategy for extending system life by 5–10 additional years.

A direct replacement of the 1769-L35CR requires no changes to the existing 1769 I/O modules, ControlNet network topology, RSLogix 5000 program, or HMI configuration. The controller can be swapped in a planned maintenance window of 2–4 hours, including program restore from a CompactFlash card or laptop upload, ControlNet node commissioning, and functional verification. This approach eliminates the capital expenditure, validation risk, and production disruption associated with a platform upgrade, making it the preferred strategy for facilities with stable processes and long equipment lifecycles.

When evaluating a replacement unit, confirm that the firmware revision of the spare matches or is compatible with the existing RSLogix 5000 project file revision. Mismatched firmware can prevent program download or cause unexpected behavior during the first scan. Our pre-shipment testing process verifies power-on self-test (POST) completion, ControlNet port functionality, and RS-232 communication before dispatch, ensuring the unit arrives ready for installation.
