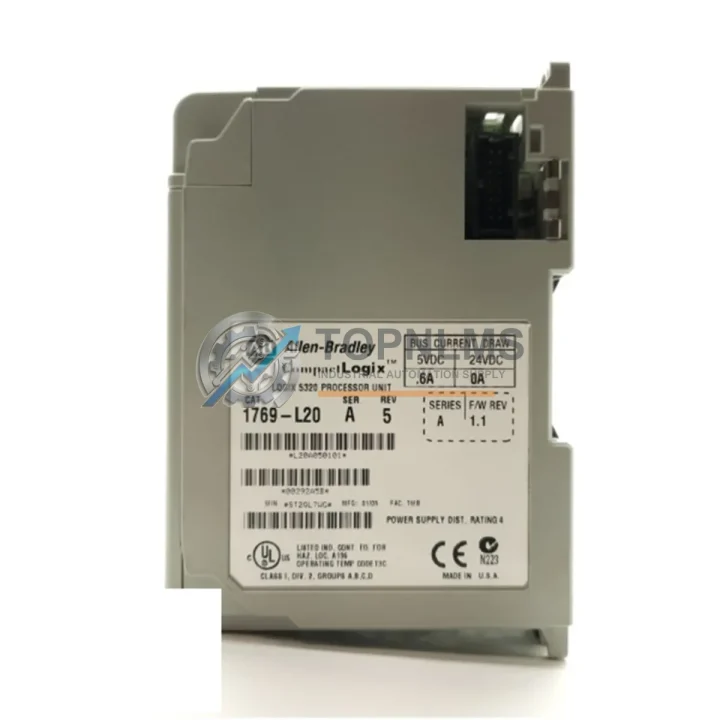

Allen-Bradley 1769-L20 Ruggedized PLC Processor Module

Product Overview

Allen-Bradley 1769-L20 Ruggedized PLC Processor Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1769-L20 CompactLogix 5320 PLC Processor Module is engineered to deliver uncompromising control performance in the most demanding industrial environments. Designed as part of Rockwell Automation’s proven CompactLogix platform, the 1769-L20 combines compact form factor with enterprise-grade reliability — making it the preferred choice for engineers and procurement specialists operating in high-temperature, high-humidity, dusty, vibration-prone, and electromagnetically noisy facilities.

Whether deployed on a continuous petrochemical production line, a deep-shaft mining conveyor system, a municipal water treatment plant, or a high-voltage power distribution substation, the 1769-L20 maintains deterministic scan-cycle execution and stable I/O communication under conditions that would compromise lesser controllers. Its robust processor architecture supports real-time ladder logic, function block, and structured text programming, enabling seamless integration into both greenfield automation projects and legacy system upgrades.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1769-L20 is rarely deployed in isolation — its true value emerges when integrated into a complete, hardened control architecture. In a typical CompactLogix control cabinet, the processor works in concert with 1769-IQ16 digital input modules and 1769-OB16 digital output modules to handle field-level signal acquisition and actuation. For analog process variables such as temperature, pressure, and flow, the 1769-IF4 analog input module provides high-resolution 4–20 mA and 0–10 V signal conditioning directly on the local bus.

Power integrity is maintained by the 1769-PA2 CompactLogix power supply, which delivers regulated 24 VDC backplane power with built-in short-circuit and overload protection — a critical safeguard in environments where voltage transients from heavy motor loads or welding equipment are common. For installations requiring network-level redundancy or remote I/O expansion, the 1769-SDN DeviceNet Scanner Module extends the control reach of the 1769-L20 across distributed field devices without adding latency to the control loop.

In facilities where personnel safety is paramount — such as chemical processing plants or explosive-atmosphere zones — the 1769-L20 is frequently paired with Allen-Bradley GuardLogix safety controllers or 1791DS-IB8XOBV4 Guard I/O safety modules to implement SIL 2-rated safety functions alongside standard process control. Communication integrity across the plant floor is ensured by 1756-ENBT EtherNet/IP bridge modules and 1769-L23E-QB1B CompactLogix Ethernet variants, enabling seamless data exchange with SCADA systems, MES platforms, and historian servers.

For terminal-level wiring in high-density control panels, 1492-CABLE series pre-wired interface cables and Allen-Bradley 1492-IFM interface modules reduce installation time and wiring errors. Variable-speed drive coordination is achieved through integration with PowerFlex 525 and PowerFlex 755 AC drives, which communicate natively over EtherNet/IP and respond to speed and torque commands issued directly by the 1769-L20 processor.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1769-L20 manages wellhead control panels, emergency shutdown sequences, and pipeline pressure regulation in environments where ambient temperatures fluctuate between sub-zero nights and scorching midday heat. Its sealed backplane connectors and conformal-coating-compatible design allow deployment in Class I, Division 2 hazardous locations when housed in appropriate NEMA 7/9 enclosures.

In underground mining, the processor controls conveyor belt sequencing, ventilation fan speed, and pump station operations — all subject to continuous mechanical vibration, coal dust ingress, and high relative humidity. The 1769-L20’s deterministic scan cycle ensures that emergency stop commands are executed within milliseconds, meeting the response-time requirements of mine safety regulations.

At power generation and grid substation facilities, the module handles transformer tap-changer control, capacitor bank switching, and protection relay coordination. Its EMI immunity — validated against IEC 61000-4-4 electrical fast transient and IEC 61000-4-5 surge standards — ensures that high-energy switching events on the primary bus do not corrupt control logic or cause spurious trips.

In water and wastewater treatment plants, the 1769-L20 orchestrates pump sequencing, chemical dosing, and filtration backwash cycles across multiple remote I/O drops. Its compact DIN-rail footprint allows installation in space-constrained junction boxes at pump stations, while its wide operating temperature range accommodates both heated indoor galleries and uninsulated outdoor kiosks.

Metallurgical and steel mill applications leverage the processor’s fast scan times to synchronize rolling mill drives, cooling water valves, and pyrometer feedback loops — where millisecond-level timing errors translate directly into product quality defects or equipment damage. The 1769-L20’s proven track record in these environments makes it a trusted backbone for both new installations and like-for-like replacements of aging control systems.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions and an RMA number will be issued within 2 business days.

Q2: How is each 1769-L20 unit tested before shipment?
Every unit undergoes a pre-shipment functional verification process that includes power-on self-test (POST) confirmation, I/O bus communication check, and firmware version validation. Units sourced from authorized distribution channels are inspected for physical integrity, label authenticity, and date-code consistency. Only units that pass all inspection criteria are released for shipment, ensuring that what arrives on your production floor is ready for immediate commissioning.

Q3: Is the 1769-L20 compatible with my existing CompactLogix or MicroLogix infrastructure?
The 1769-L20 is fully compatible with the CompactLogix 1769 I/O module family, including digital, analog, and specialty modules. It is programmed using Rockwell Automation’s Studio 5000 Logix Designer (and legacy RSLogix 5000) software. While it does not share a common backplane with MicroLogix or ControlLogix platforms, it can communicate with both via DF1, DH-485, or EtherNet/IP bridging. TOPNLMS technical staff can advise on migration paths and compatibility verification prior to purchase.

Q4: Can TOPNLMS guarantee long-term supply and support for this model?
Yes. TOPNLMS maintains dedicated stock of high-demand Allen-Bradley CompactLogix modules, including the 1769-L20, to support both planned maintenance schedules and emergency breakdown replacements. For customers with multi-unit requirements or scheduled maintenance programs, we offer reserved stock arrangements and priority fulfillment agreements. Our procurement team actively monitors supply chain availability to ensure continuity of supply for critical spare parts. Contact us at [email protected] or +86 18359293191 to discuss your long-term sourcing needs.
