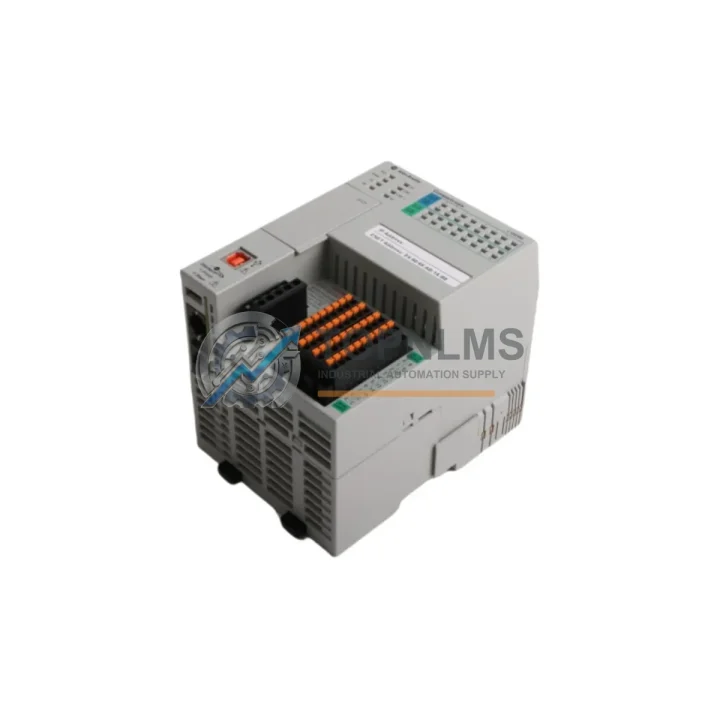

Allen-Bradley 1769-L18ERM-BB1B Replacement for CompactLogix 5370: Seamless Migration & Upgrade Solution

When your existing Allen-Bradley CompactLogix 5370 L1 controller reaches end-of-life or becomes difficult to source, the 1769-L18ERM-BB1B remains one of the most widely deployed small-footprint PLCs in discrete manufacturing, material handling, and process control applications. TOPNLMS supplies verified replacement and upgrade units of the Allen-Bradley 1769-L18ERM-BB1B to help engineering teams execute smooth, low-risk migrations without redesigning the control architecture.

The 1769-L18ERM-BB1B is a CompactLogix 5370 L1 series controller featuring an integrated EtherNet/IP port, 18 onboard I/O points (10 digital inputs, 6 digital outputs, 2 analog inputs), and a 512 KB user memory capacity. It is designed for compact panel installations where DIN-rail space is limited and where a full-size 1756 ControlLogix rack is not justified. The controller runs Logix 5000 firmware and is fully programmable via Studio 5000 Logix Designer, making it directly compatible with existing ladder logic, function block, and structured text programs developed for the broader CompactLogix 5370 platform.

For facilities currently operating older MicroLogix 1100 or MicroLogix 1400 controllers, the 1769-L18ERM-BB1B represents a natural upgrade path. While the MicroLogix family uses RSLogix 500 programming software and a different instruction set, the migration to Studio 5000 is well-documented by Rockwell Automation, and the physical wiring to field devices can often be preserved by reusing existing terminal blocks and I/O wiring harnesses. Engineers migrating from SLC 500 fixed controllers will similarly find that the 1769-L18ERM-BB1B fits within comparable panel footprints and supports the same 24 VDC sourcing/sinking I/O wiring conventions.

In multi-axis or motion-adjacent applications, the 1769-L18ERM-BB1B integrates cleanly with Kinetix 5500 and Kinetix 5700 servo drives over EtherNet/IP, enabling coordinated motion without a dedicated motion controller. For distributed I/O expansion beyond the onboard points, the controller supports 1769 CompactLogix expansion modules such as the 1769-IQ16 digital input module and 1769-OB16 digital output module, which mount directly to the right side of the controller on the same backplane bus — no additional communication hardware required.

Communication flexibility is a key advantage during system modernization. The integrated EtherNet/IP port supports both implicit (Class 1) and explicit (Class 3) messaging, allowing the 1769-L18ERM-BB1B to act as an EtherNet/IP adapter or scanner. This makes it straightforward to connect upstream to a 1756-EN2T ControlLogix EtherNet/IP bridge module in a supervisory rack, or to communicate peer-to-peer with other CompactLogix controllers across a plant network. For legacy installations that still rely on DeviceNet or ControlNet field devices, a 1769-SDN DeviceNet scanner module can be added to the local I/O bus to bridge those legacy field devices into the new EtherNet/IP architecture without rewiring sensors or actuators.

Power supply compatibility is straightforward: the 1769-L18ERM-BB1B operates on 24 VDC and is typically powered by a dedicated 1769-PA2 or 1769-PB2 power supply module mounted at the left end of the CompactLogix local I/O bus. If the existing panel already supplies 24 VDC from a third-party DIN-rail power supply such as a Phoenix Contact QUINT or a Siemens SITOP unit, the controller can be powered directly from that rail, simplifying the retrofit and reducing component count.

For HMI integration, the 1769-L18ERM-BB1B communicates natively with PanelView Plus 7 and PanelView Plus 6 terminals over EtherNet/IP using FactoryTalk View ME. Existing PanelView applications developed for earlier CompactLogix or SLC 500 systems can be adapted with minimal rework, since the tag-based addressing model in FactoryTalk View ME maps directly to the controller’s tag database. This eliminates the need to replace operator interface hardware during the PLC migration, protecting the existing HMI investment.

From a physical installation standpoint, the 1769-L18ERM-BB1B mounts on standard 35 mm DIN rail and occupies a compact footprint suitable for retrofit into existing control cabinets. The unit’s dimensions are compatible with most standard 300 mm and 400 mm deep enclosures, and the front-panel USB port provides convenient local programming access without opening the cabinet door or disconnecting field wiring. The controller ships with the standard 1769 series bus connector pre-installed, ensuring immediate compatibility with adjacent 1769 expansion modules already present in the panel.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1769-L18ERM-BB1B rarely involves the controller alone. In most retrofit projects, the engineering team also needs to address I/O expansion, communication bridging, power distribution, and operator interface updates. The following components are commonly specified alongside the 1769-L18ERM-BB1B in modernization projects:

For digital I/O expansion, the 1769-IQ16 16-point 24 VDC digital input module and 1769-OB16 16-point 24 VDC digital output module mount directly on the 1769 local I/O bus and are the most common expansion modules paired with the L18ERM in machine control applications. Where analog process signals are present — such as 4–20 mA transmitters from pressure, temperature, or flow instruments — the 1769-IF4 4-channel analog input module provides the necessary signal conditioning without requiring external signal converters.

For facilities that need to retain legacy DeviceNet field devices (sensors, valve manifolds, variable frequency drives) during a phased migration, the 1769-SDN DeviceNet scanner module bridges the DeviceNet network into the CompactLogix I/O bus, allowing the 1769-L18ERM-BB1B to manage DeviceNet devices as if they were local I/O — no gateway hardware required. Similarly, where PROFIBUS DP field devices must be retained, a 1769-AENTR EtherNet/IP adapter or a third-party PROFIBUS-to-EtherNet/IP gateway can be used to integrate those devices into the new architecture.

Power supply selection is critical in retrofit projects. The 1769-PA2 power supply module (120/240 VAC input, 24 VDC output, 2 A) is the standard choice when AC power is available in the panel. For panels already supplied with 24 VDC from a centralized power distribution system, the 1769-PB2 power supply module (24 VDC input) eliminates the need for an additional AC/DC conversion stage. Both modules mount at the left end of the 1769 local I/O bus and provide the bus power required by the controller and all attached expansion modules.

For programming and commissioning, a standard USB-A to USB-B programming cable connects directly to the front-panel USB port of the 1769-L18ERM-BB1B, enabling firmware updates and program downloads without disrupting field wiring. For remote access during commissioning or ongoing maintenance, the controller’s EtherNet/IP port supports FactoryTalk Remote Access and standard VPN-based remote desktop connections to the engineering workstation running Studio 5000.

Finally, where the existing panel includes a PanelView Plus 6 or Plus 7 HMI terminal, no hardware replacement is required — the terminal communicates with the 1769-L18ERM-BB1B over EtherNet/IP using the existing network infrastructure, and the FactoryTalk View ME application can be updated to reference the new controller’s tag database with minimal rework.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing a MicroLogix 1100 with the 1769-L18ERM-BB1B?
A: In most cases, yes. Both controllers use 24 VDC sourcing/sinking I/O. The terminal block wiring for digital inputs and outputs can typically be transferred directly to the 1769-L18ERM-BB1B’s onboard I/O terminals or to 1769 expansion modules. Verify the I/O voltage and current ratings against your field device specifications before finalizing the wiring plan.

Q: Do I need to rewrite my PLC program when migrating from RSLogix 500 to Studio 5000?
A: A direct import is not supported — RSLogix 500 programs use file-based addressing (N7:0, O:0/0) while Studio 5000 uses tag-based addressing. However, Rockwell Automation provides migration guides and the logic structure (ladder rungs, timers, counters) translates conceptually with manageable rework. For simple machine programs, migration typically takes 1–3 days of engineering time.

Q: Is the EtherNet/IP port on the 1769-L18ERM-BB1B compatible with my existing plant network switches?
A: Yes. The integrated EtherNet/IP port is a standard 10/100 Mbps auto-negotiating Ethernet port compatible with any managed or unmanaged industrial Ethernet switch. For best results in EtherNet/IP applications, use a switch that supports QoS (Quality of Service) prioritization for EtherNet/IP traffic, such as the Stratix 2000 or Stratix 5700 series.

Q: How much physical space does the 1769-L18ERM-BB1B require in the control cabinet?
A: The controller itself occupies approximately 100 mm (H) × 90 mm (W) × 87 mm (D) on a 35 mm DIN rail. Each additional 1769 expansion module adds approximately 30–70 mm of width depending on the module type. Plan for a minimum of 50 mm clearance above and below the DIN rail for cable management and ventilation.

Q: Can the 1769-L18ERM-BB1B communicate with my existing SCADA system over Modbus TCP?
A: The 1769-L18ERM-BB1B does not natively support Modbus TCP as a server. However, Modbus TCP communication can be implemented using the MSG instruction with explicit messaging, or by using a third-party Modbus TCP gateway module. Alternatively, most modern SCADA systems support EtherNet/IP as a native protocol, which is the preferred integration path.

Q: What firmware version should I use for the 1769-L18ERM-BB1B?
A: TOPNLMS ships units with the firmware version as received from the supply chain. We recommend updating to the latest compatible firmware version using ControlFLASH or ControlFLASH Plus before commissioning. Verify firmware compatibility with your version of Studio 5000 Logix Designer before updating.

Warranty Assurance

Every Allen-Bradley 1769-L18ERM-BB1B unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification check including power-on testing, communication port verification, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Customers are required to return the defective unit for inspection before a replacement is dispatched. Return shipping costs for warranty claims are covered by TOPNLMS for orders shipped to mainland China; international return shipping arrangements are agreed on a case-by-case basis.

Our after-sales response target is within 24 hours on business days. For urgent production-down situations, please contact us directly by phone or email and indicate the urgency — we prioritize expedited processing and same-day or next-day dispatch for in-stock units where possible.

TOPNLMS maintains stock of the 1769-L18ERM-BB1B and related CompactLogix 5370 components to support both planned maintenance schedules and emergency replacement requirements. We issue a proforma invoice and packing list with every shipment, and can provide a certificate of conformance upon request for quality management documentation purposes.

For procurement inquiries, technical compatibility questions, or to request a quotation, please contact our industrial automation team directly.
