Allen-Bradley 1769-HSC Original Industrial Spare Compact I/O Compatible

Product Overview

Allen-Bradley 1769-HSC Original Industrial Spare Compact I/O Compatible: Ensuring System Stability in Demanding Environments

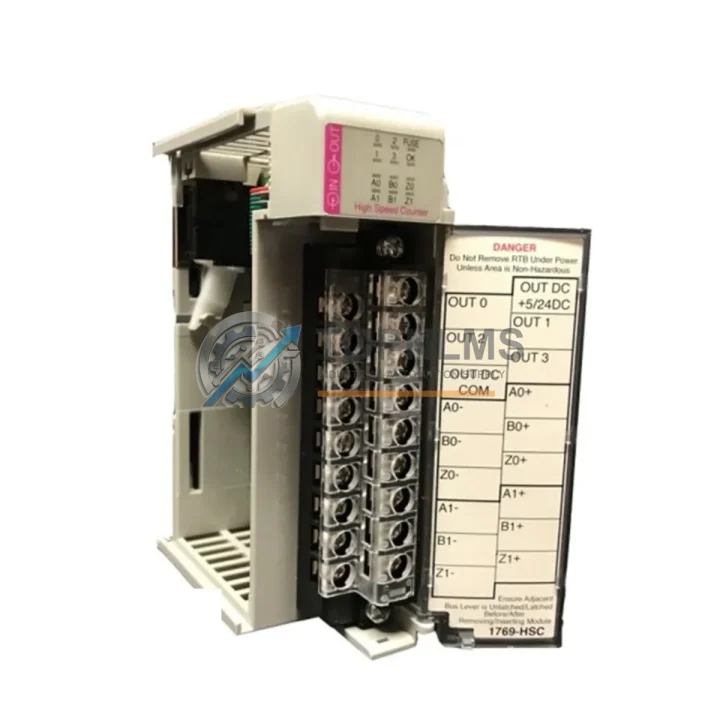

The Allen-Bradley 1769-HSC is a high-speed counter module designed for use within the Rockwell Automation Compact I/O (1769 series) platform. In industrial facilities where encoder feedback, pulse counting, and high-frequency digital input processing are critical to process control, the 1769-HSC serves as a foundational component in maintaining accurate, real-time data acquisition across production lines, conveyor systems, packaging machinery, and rotary equipment.

For maintenance engineers and reliability teams managing aging control architectures, sourcing an original 1769-HSC spare is not merely a procurement decision — it is a system stability strategy. The module supports up to four high-speed counter channels with configurable counting modes including standard pulse, quadrature, and period/rate measurement. Its direct integration with CompactLogix and MicroLogix controller platforms means that a verified original replacement eliminates firmware compatibility risks and reduces commissioning time during emergency shutdowns.

At TOPNLMS, every 1769-HSC unit is sourced as an original spare part, functionally tested prior to dispatch, and backed by a 12-month warranty. Units are shipped with protective packaging appropriate for sensitive electronic modules, and documentation is available upon request to support incoming inspection procedures.

Critical Technical Specs Table

Preventive Maintenance Strategy

A high-speed counter module like the 1769-HSC rarely fails in isolation. In most field scenarios, module degradation is accompanied by related issues in the surrounding I/O infrastructure, power distribution, and signal conditioning chain. A structured preventive maintenance approach — rather than reactive replacement — significantly reduces unplanned downtime and extends the operational life of the entire control cabinet.

When inspecting or replacing a 1769-HSC, maintenance teams should simultaneously audit the 1769-IQ16 (16-point 24V DC digital input module) and 1769-OB16 (16-point digital output module) installed in the same Compact I/O bank. These modules share the same backplane and are subject to similar thermal and electrical stress cycles. If the HSC module shows signs of encoder signal dropout or count errors, the issue may originate upstream in the encoder cable shielding or the 24V DC power supply feeding the I/O rack — making the 1769-PA2 or 1769-PB2 power supply modules logical candidates for inspection.

For facilities running CompactLogix platforms, the 1769-L30ER or 1769-L33ER controller modules should be verified for firmware currency during any HSC replacement event, as counter module behavior is tightly coupled to controller scan cycle configuration. Additionally, the 1492-CABLE series pre-wired interface cables used to connect encoder outputs to the 1769-HSC terminal block are a common wear item and should be replaced proactively during scheduled shutdowns.

In control cabinets where signal integrity is critical, consider inspecting signal isolators and 1769-SM2 serial communication modules or equivalent communication interface modules that relay counter data to SCADA or historian systems. Degraded communication modules can mask accurate counter readings and lead to false diagnostics. Fuse modules such as the 1492-GH series protecting the 24V input circuits should also be checked and replaced on a scheduled basis rather than waiting for blown-fuse events.

For facilities managing legacy systems beyond their original design life, maintaining a minimum stock of one spare 1769-HSC alongside companion modules — including a spare 1769-IQ32 input module and a 1769-OF4 analog output module — provides a practical buffer against extended lead times that are increasingly common for discontinued or allocation-constrained Rockwell Automation components.

Strategic Replacement Solutions

The 1769-HSC has been in active deployment across global manufacturing facilities for over two decades. Many installations running on CompactLogix L20, L30, or L40 series controllers continue to rely on this module for encoder-based position feedback, flow metering, and production counting applications. As Rockwell Automation transitions its portfolio toward newer Logix 5000 architectures, sourcing verified original spare 1769-HSC units becomes increasingly important for facilities that cannot justify a full control system migration.

Replacing a 1769-HSC with a verified original spare — rather than an unverified aftermarket substitute — preserves the integrity of the RSLogix 5000 or Studio 5000 program without requiring tag remapping, I/O tree reconfiguration, or re-commissioning of encoder scaling parameters. This is particularly valuable in facilities where the original system integrator is no longer available and in-house maintenance teams must manage replacements independently.

TOPNLMS maintains inventory of 1769-HSC modules to support rapid dispatch for emergency maintenance scenarios. Standard lead time for in-stock units is 3–7 business days internationally, with expedited options available. Each unit undergoes functional verification prior to shipment, and a test report can be provided upon request. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement teams with the documentation required for asset management and audit compliance.

For facilities planning a phased migration from legacy Compact I/O to newer architectures, maintaining operational continuity with original spare parts during the transition period is the most cost-effective strategy. A single unplanned shutdown caused by an unavailable spare can exceed the cost of maintaining a full spare parts inventory for an entire control cabinet.

Support FAQ

Q1: Is the 1769-HSC you supply an original Allen-Bradley part or a compatible substitute?
All 1769-HSC units supplied by TOPNLMS are original Allen-Bradley (Rockwell Automation) spare parts. We do not supply aftermarket, cloned, or rebranded substitutes. Each unit is sourced through verified industrial supply channels and undergoes functional testing before dispatch.

Q2: What warranty coverage is provided, and what does it include?
Every 1769-HSC ships with a 12-month warranty from the date of shipment. The warranty covers functional failures and manufacturing defects under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement unit dispatched after fault verification.

Q3: Can this module be installed as a direct drop-in replacement without reprogramming?
Yes. The 1769-HSC is a direct form-fit-function replacement for an existing 1769-HSC in any compatible 1769 Compact I/O bank. No tag remapping or I/O configuration changes are required in Studio 5000 or RSLogix 5000, provided the replacement module is the same catalog number. Counter scaling, mode configuration, and preset values stored in the controller program remain valid.

Q4: How should I verify compatibility before ordering, and what information should I provide?
To confirm compatibility, provide your controller catalog number (e.g., 1769-L30ER), the current firmware revision, and the physical slot position of the existing 1769-HSC in your I/O bank. If you have access to the RSLogix or Studio 5000 project file, the I/O configuration tree will confirm the exact catalog number required. Contact us at [email protected] with your system details for pre-order compatibility verification.
