Allen-Bradley 1769-ECR Replacement for CompactLogix 1769

Product Overview

Allen-Bradley 1769-ECR Replacement for CompactLogix 1769: Smooth Migration & Upgrade Solution

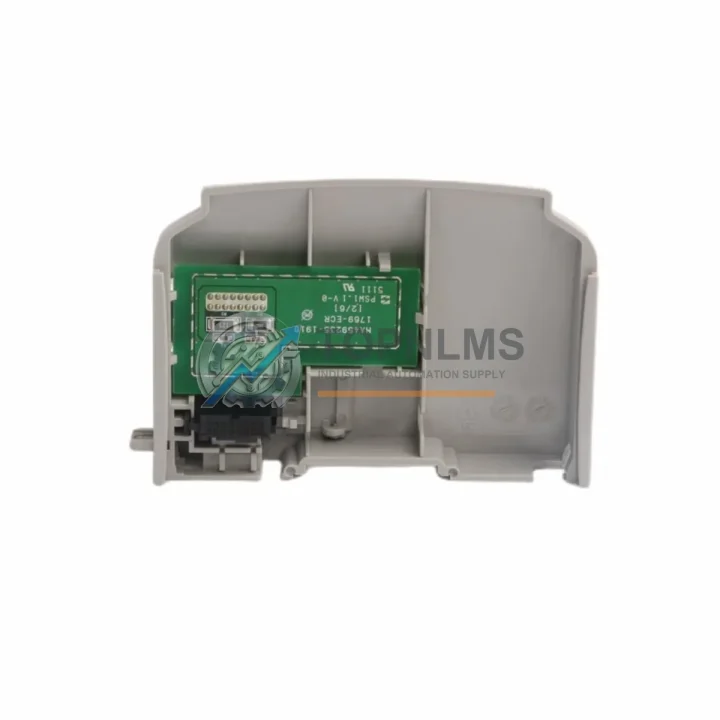

The Allen-Bradley 1769-ECR Right End Cap is a critical bus terminator for the CompactLogix 1769 I/O expansion system. When your existing 1769-ECR reaches end-of-life, becomes physically damaged, or is discontinued from your regional distributor’s stock, sourcing a verified replacement quickly is essential to maintaining system integrity and minimizing unplanned downtime. This listing provides a fully compatible, tested 1769-ECR replacement unit ready for immediate dispatch from our Xiamen warehouse.

The 1769-ECR terminates the right end of a CompactLogix 1769 local I/O bus, preventing signal reflection and ensuring stable communication across all modules in the rack. Without a properly seated end cap, the entire 1769 expansion bus — including modules such as the 1769-IQ16 digital input module, 1769-OB16 digital output module, 1769-IF4 analog input module, and 1769-OF2 analog output module — may exhibit erratic behavior, fault codes, or complete communication failure. Replacing a failed or missing 1769-ECR is therefore a Tier-1 priority in any CompactLogix maintenance or retrofit project.

Compatibility Comparison Table

Seamless Upgrade Solutions

A 1769-ECR replacement is rarely a standalone task. In most CompactLogix retrofit and modernization projects, the end cap swap is part of a broader system refresh. During the upgrade process, engineers commonly address adjacent components to ensure the entire 1769 local bus operates reliably after the intervention.

If the control cabinet has experienced a bus fault, it is prudent to inspect the 1769-PA2 or 1769-PB2 power supply module for voltage irregularities that may have caused the original end cap failure. Similarly, the 1769-L30ER or 1769-L33ER CompactLogix controller should be checked for firmware currency and I/O tree integrity after any bus component replacement. In systems where the 1769 rack communicates upstream via a 1756-EN2T EtherNet/IP bridge or a 1756-DHRIO Data Highway Plus module, verifying that the bus termination is correct prevents ghost faults from propagating to the ControlLogix backplane.

For installations migrating from legacy SLC 500 or MicroLogix platforms to CompactLogix, the 1769-ECR is a mandatory component when expanding the new 1769 I/O bank. In these migration scenarios, the 1769-ADN DeviceNet adapter or 1769-SDN scanner module is often added to the rack alongside new I/O modules, making proper bus termination critical from day one. Engineers performing such migrations also frequently source the 1756-CP3 programming cable or 1747-UIC USB-to-DH485 interface to re-commission the controller after the hardware swap, and the 1769-ECR must be in place before any online program download is attempted.

In high-density control cabinets where DIN rail space is constrained, the compact profile of the 1769-ECR ensures no additional panel real estate is consumed. When the retrofit also involves adding a 1769-SM2 serial communications module or a 1769-ASCII module for legacy device integration, the bus terminator position simply shifts to the new rightmost slot — a five-second mechanical operation that requires no tools and no software reconfiguration.

Retrofit Guidance FAQ

Q: Do I need to modify any wiring when replacing the 1769-ECR?
No. The 1769-ECR is a passive bus terminator with no field wiring connections. Replacement requires only powering down the 1769 bus segment, removing the old end cap, and snapping the new unit into the right-end slot. No terminal block changes, no cable re-routing.

Q: Will I need to make any changes to my Studio 5000 or RSLogix 5000 program?
No. The 1769-ECR is transparent to the controller’s I/O configuration. It does not appear as a module in the I/O tree and requires no software acknowledgment. Your existing program, tags, and I/O mapping remain fully intact after replacement.

Q: Is the replacement 1769-ECR compatible with all CompactLogix 1769 controllers?
Yes. The 1769-ECR is compatible with all CompactLogix controllers that use the 1769 local I/O bus, including the 1769-L16ER, 1769-L18ER, 1769-L24ER, 1769-L27ERM, 1769-L30ER, 1769-L33ER, and 1769-L36ERM families. It is also compatible with MicroLogix 1500 systems that use 1769 expansion I/O.

Q: What communication protocols does the 1769 bus support after replacement?
The 1769 local bus is a proprietary backplane protocol managed by the CompactLogix controller. Upstream communication — whether EtherNet/IP, DeviceNet, or ControlNet — is unaffected by the end cap. Replacing the 1769-ECR restores bus integrity without any protocol reconfiguration.

Q: What if my cabinet has limited space — will the replacement unit fit?
The 1769-ECR has a fixed, minimal form factor identical to the original. It occupies no additional DIN rail space beyond the standard end-cap position. No panel modification is required.

Q: How do I verify the bus is healthy after installing the replacement?
After installation, power up the 1769 bus and observe the controller’s I/O status indicators. In Studio 5000 Logix Designer, navigate to the I/O Configuration tree and confirm all 1769 modules show a green “Running” status. No bus faults should be present if the end cap is correctly seated.

Warranty Assurance

Every 1769-ECR unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a visual and functional inspection to verify connector integrity, housing condition, and bus-interface alignment. Units that do not pass inspection are not shipped.

If a warranty claim arises within the 12-month coverage period, TOPNLMS will provide a replacement unit or full refund upon confirmation of the defect. Our average response time for warranty inquiries is one business day. Replacement units are dispatched from our Xiamen stock within 1–3 business days of claim approval.

For time-critical plant maintenance situations, we offer expedited shipping options including DHL Express, FedEx International Priority, and SF Express cross-border services. Most destinations in Southeast Asia, Europe, and North America receive shipments within 3–7 business days under standard express terms.

TOPNLMS maintains a dedicated stock of high-demand CompactLogix accessories and I/O components to support rapid fulfillment for MRO (Maintenance, Repair & Operations) buyers. Bulk purchase inquiries and standing purchase orders are welcome — please contact our sales team for volume pricing and lead-time commitments.
