Allen-Bradley 1769-ECL Replacement for CompactLogix 1769: Seamless Transition & Legacy System Compatibility

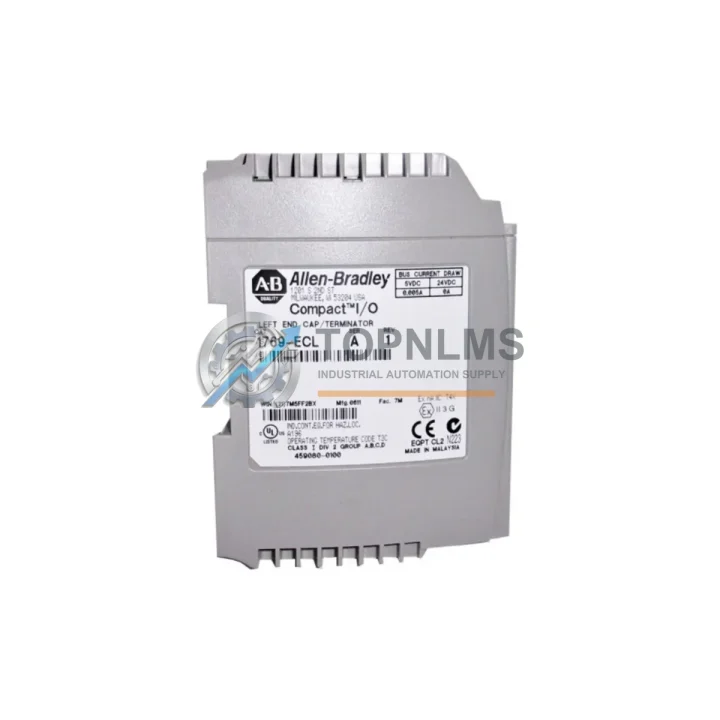

The Allen-Bradley 1769-ECL is the left-end bus terminator designed exclusively for the CompactLogix 1769 series I/O expansion system. As industrial facilities continue to modernize aging control architectures, the 1769-ECL plays a critical role in maintaining bus integrity during phased migration projects — whether you are replacing a discontinued end cap, expanding an existing 1769 rack, or rebuilding a control panel after a hardware failure. TOPNLMS stocks verified 1769-ECL units ready for immediate dispatch, supporting engineers and procurement teams who cannot afford extended downtime.

In many retrofit scenarios, the 1769-ECL is the final component needed to complete a CompactLogix I/O bank. Engineers migrating from older SLC 500 or MicroLogix 1500 platforms to a CompactLogix L3x or L2x controller frequently retain their existing 1769 I/O modules — such as the 1769-IQ16, 1769-OB16, or 1769-IF4 analog input module — and simply need a correctly terminated bus to bring the new system online. The 1769-ECL ensures the C-bus communication between the controller and I/O modules is properly closed at the left end, preventing bus faults and communication errors that would otherwise halt production.

For facilities running a 1769-L32E or 1769-L36ERM CompactLogix controller, the physical bus termination is non-negotiable. Missing or damaged end terminators are a common cause of I/O communication faults logged in RSLogix 5000 or Studio 5000 Logix Designer. Replacing a failed 1769-ECL restores the C-bus topology without requiring any program changes, making it one of the lowest-risk hardware interventions in a CompactLogix system. The module snaps directly onto the left end of the 1769 I/O bank, requires no wiring, and draws no additional power from the system power supply — such as the 1769-PA2 or 1769-PB2 — making installation a matter of minutes rather than hours.

During larger migration projects — for example, transitioning a legacy PLC-5 or ControlLogix 1756 remote I/O network to a distributed CompactLogix architecture — the 1769-ECL is typically sourced alongside other 1769 series components. Procurement teams often bundle it with the 1769-ARM address reserve module, 1769-CRL and 1769-CRR bus expansion cables for multi-bank configurations, and the 1769-ECR right-end bus terminator to complete both ends of a standalone I/O bank. Having all termination hardware in stock before a planned shutdown window is essential to keeping retrofit schedules on track.

In control cabinet space-constrained environments — common in skid-mounted systems, water treatment panels, and packaging machinery — the compact form factor of the 1769 series is a primary reason engineers choose CompactLogix over larger 1756 ControlLogix racks. The 1769-ECL adds negligible width to the assembly, preserving DIN rail space for other components such as 24 VDC power supplies, circuit breakers, and terminal blocks. When combined with a 1769-L18ER-BB1B or similar compact controller, the entire control system can fit within a standard 400 mm wide enclosure.

For OEM machine builders and system integrators managing spare parts programs, maintaining at least one 1769-ECL per installed CompactLogix bank is standard practice. The module is subject to physical stress during panel assembly and field servicing — connector tabs can crack if the I/O bank is repeatedly reconfigured. TOPNLMS provides a reliable source for both new and tested-equivalent 1769-ECL units, with each unit inspected prior to shipment and covered by a 12-month warranty against manufacturing defects and functional failure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete CompactLogix I/O bank migration typically involves more than a single terminator. When sourcing the 1769-ECL, engineers commonly require the complementary 1769-ECR right-end bus terminator to close the opposite end of a standalone bank. Multi-bank configurations rely on 1769-CRL (left) and 1769-CRR (right) bus expansion cables to link adjacent I/O banks, while the 1769-ARM address reserve module is used to hold I/O slot addresses during partial population. Digital I/O modules such as the 1769-IQ16 16-point DC input and 1769-OB16 16-point DC output are the most common field-side components in these banks. Analog signal conditioning is handled by modules like the 1769-IF4 4-channel analog input or 1769-OF2 2-channel analog output. System power is supplied via the 1769-PA2 (120/240 VAC) or 1769-PB2 (24 VDC) power supply modules. For communication-intensive applications, the 1769-L32E controller with built-in EtherNet/IP provides the network backbone, while the 1769-SDN DeviceNet scanner module supports legacy field device integration during phased migration. All of these components are available through TOPNLMS, allowing procurement teams to consolidate sourcing and reduce lead time across the entire upgrade bill of materials.

Retrofit Guidance FAQ

Q: Does replacing the 1769-ECL require any wiring changes?
No. The 1769-ECL is a passive bus terminator with no field wiring connections. It snaps onto the left end of the 1769 I/O bank mechanically. No wiring, no configuration, and no program modification is required.

Q: Will the controller detect the new 1769-ECL automatically?
Yes. The C-bus termination is transparent to the CompactLogix controller. Once the terminator is correctly seated, the controller resumes normal I/O communication without any changes to the Studio 5000 or RSLogix 5000 project.

Q: Is the 1769-ECL compatible with all CompactLogix 1769 controllers?
Yes. The 1769-ECL is compatible with all controllers that use the 1769 C-bus I/O expansion system, including the 1769-L23, L24, L27, L30, L32, L33, L36, and L18 series.

Q: Can the 1769-ECL be used in a multi-bank configuration?
In a multi-bank setup, the 1769-ECL terminates the left end of the leftmost bank only. Intermediate banks use 1769-CRL/CRR bus expansion cables, and the rightmost bank uses the 1769-ECR right-end terminator.

Q: What causes 1769-ECL failure in the field?
Physical damage during panel reconfiguration is the most common cause — the plastic connector tabs can crack under repeated removal and reinsertion. Bus faults, I/O communication errors, and controller fault codes (e.g., Major Fault Type 4) are typical symptoms of a missing or damaged terminator.

Q: How quickly can TOPNLMS ship the 1769-ECL?
In-stock units are dispatched within 1–2 business days from Xiamen, China, via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical delivery of 3–7 business days to most destinations.

Warranty Assurance

Every 1769-ECL shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional inspection to verify mechanical integrity and connector condition. In the event of a confirmed defect or functional failure within the warranty period, TOPNLMS will arrange a replacement shipment or issue a refund — whichever the customer prefers. Our after-sales response time is within 24 hours on business days. We understand that industrial procurement decisions are driven by reliability, traceability, and supplier accountability, and we stand behind every component we ship. Customers receive a packing list, inspection record, and tracking number with every order.
