Allen-Bradley 1769-DPM Upgrade Solution for CompactLogix

Product Overview

Allen-Bradley 1769-DPM Upgrade Solution for CompactLogix: Seamless PROFIBUS DP Migration

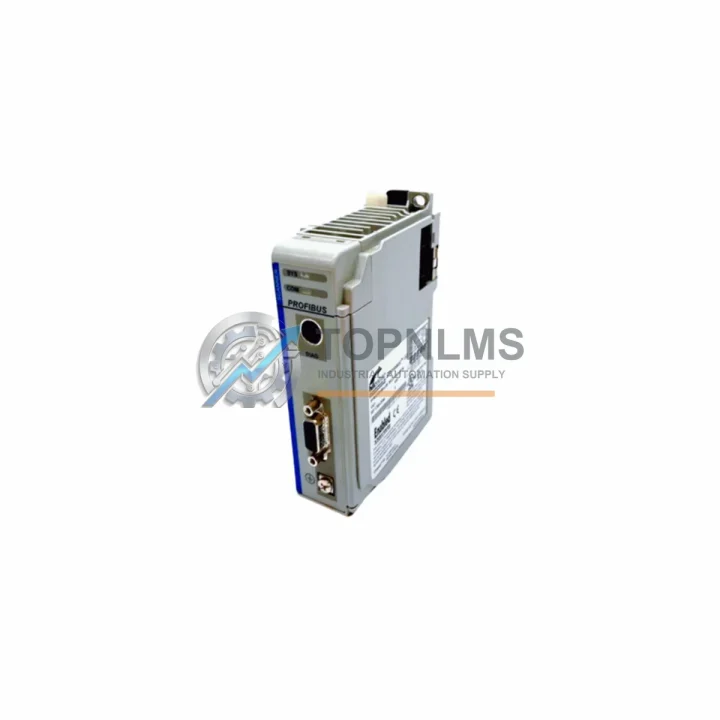

The Allen-Bradley 1769-DPM PROFIBUS DP Master Module is a compact, high-performance communication module designed for the CompactLogix 1769 Series control platform. As legacy PROFIBUS DP networks age and original 1769-DPM units approach end-of-life or become increasingly difficult to source, plant engineers and system integrators face mounting pressure to maintain uptime while planning a credible migration path. This listing addresses that challenge directly — providing a verified replacement or upgrade solution for the 1769-DPM with full attention to wiring compatibility, protocol continuity, rack fit, and commissioning confidence.

Whether you are replacing a failed unit on an existing CompactLogix rack, consolidating spare-parts inventory, or executing a phased modernization of a PROFIBUS DP field network, the 1769-DPM remains the authoritative drop-in solution for 1769-series backplanes. Its single-slot form factor integrates directly into any 1769 expansion rack alongside standard I/O modules such as the 1769-IQ16 digital input module and the 1769-OB16 digital output module, preserving your existing cabinet layout and minimizing re-wiring effort.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1769-DPM migration rarely involves a single module swap. In practice, field engineers upgrading from older PROFIBUS DP architectures will encounter a cluster of interdependent components that must be evaluated in parallel. The 1769-DPM sits at the center of a broader 1769 ecosystem, and understanding its neighbors is essential for a smooth cutover.

On the controller side, the 1769-DPM connects to a CompactLogix L-series processor — such as the 1769-L33ER or 1769-L36ERM — via the 1769 backplane. If your existing processor is an older 1769-L32E or 1769-L35E, verify firmware compatibility with the DPM module before ordering; in most cases a firmware update via the 1784-U2DHP USB-to-DH+ programming cable resolves any version mismatch without hardware replacement.

Power integrity is a common oversight during PROFIBUS DP upgrades. The 1769-DPM draws current from the 1769 backplane bus, so confirm that your existing 1769-PA2 or 1769-PB2 power supply has sufficient remaining capacity after accounting for all installed I/O modules. In high-density racks where the power budget is tight, adding a supplemental 1769-ECR end cap with a right-side bus connection allows you to split the rack and add a second power supply without rewiring the field I/O.

On the PROFIBUS DP field side, the 1769-DPM communicates with slave devices using standard GSD files. Common slaves in legacy installations include Siemens ET 200S distributed I/O stations, Phoenix Contact Inline I/O couplers, and variable-frequency drives such as the PowerFlex 40P with a PROFIBUS DP communication option card. All of these retain full compatibility with the 1769-DPM operating as a Class 1 DP master, meaning your existing GSD-based device configurations can be imported directly into Studio 5000 without re-parameterization of the slave devices themselves.

For installations where the PROFIBUS DP segment must coexist with an EtherNet/IP backbone, the 1769-L33ER processor’s built-in EtherNet/IP port handles upstream SCADA or MES connectivity while the 1769-DPM manages the DP field bus independently — no additional communication bridge is required. If your legacy system used a standalone 1761-NET-DNI DeviceNet-to-serial bridge or a 1747-SDN DeviceNet scanner in an older SLC 500 rack, the migration to a CompactLogix platform with the 1769-DPM consolidates two separate field buses into a single, unified architecture.

Signal conditioning and isolation should also be reviewed during the upgrade. Where PROFIBUS DP cable runs exceed 200 meters or pass through electrically noisy environments — common in motor control centers and variable-speed drive panels — installing a PROFIBUS DP repeater or an optical fiber segment coupler between the 1769-DPM and the remote slave cluster protects signal integrity and eliminates ground-loop interference that can cause intermittent communication faults on legacy copper-only segments.

Retrofit Guidance FAQ

Q: Can I reuse my existing PROFIBUS DP cable and DB9 connectors?
Yes. The 1769-DPM uses a standard DB9 female PROFIBUS DP connector. Existing Belden 3079A or equivalent Type A cable, termination resistors, and DB9 connectors are fully reusable. Verify that bus termination is active only at the two physical ends of the segment.

Q: Do I need to rewrite my PLC program after replacing the DP master?
If you are replacing a failed 1769-DPM with an identical unit, no program changes are required — restore from your last backup and the module will resume normal operation. If migrating from a third-party DP master gateway, you will need to re-map the I/O data table in Studio 5000 to match the 1769-DPM’s native I/O image format, but the underlying ladder or function block logic controlling your process does not need to change.

Q: Is the 1769-DPM compatible with DP-V1 acyclic services?
Yes. The 1769-DPM supports both DP-V0 cyclic data exchange and DP-V1 Class 1 and Class 2 acyclic messaging, enabling parameter read/write access to intelligent slave devices such as drives and transmitters without interrupting cyclic I/O.

Q: How much rack space does the 1769-DPM require?
The 1769-DPM occupies a single 1769 expansion slot. It can be installed in any position on the 1769 backplane, left or right of the processor, subject to the total slot count of your expansion rack (1769-CRR1, 1769-CRR3, or 1769-ECR configurations).

Q: What is the maximum PROFIBUS DP segment length supported?
At 1.5 Mbps, the maximum segment length is 200 meters per IEC 61158 Type A cable specification. At 93.75 kbps, segments up to 1,200 meters are supported. Use repeaters to extend beyond these limits.

Q: Can the 1769-DPM operate in a system with multiple DP masters?
Each 1769-DPM acts as a single DP master on one PROFIBUS DP segment. For multi-segment architectures, install one 1769-DPM per segment in separate 1769 racks or use a DP coupler to bridge segments.

Warranty Assurance

Every 1769-DPM unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional pre-shipment inspection including backplane communication verification, PROFIBUS DP port continuity check, and firmware version confirmation. Units are packed in anti-static ESD bags with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund — whichever resolution best minimizes your downtime. Our after-sales response target is within 24 hours on business days. For urgent production-line situations, please contact us directly by phone or email to expedite the replacement process.

We maintain standing inventory of the 1769-DPM and related 1769-series modules to support rapid fulfillment. Standard orders ship within 1–3 business days from our Xiamen warehouse, with DHL Express, FedEx International Priority, and UPS Worldwide Expedited available as shipping options. Export documentation, commercial invoices, and packing lists are provided with every international shipment.

For volume procurement, OEM integrator accounts, or project-based bulk orders, please contact our sales team to discuss pricing, lead times, and consignment stock arrangements.
