Allen-Bradley 1768-L45S Original Industrial Spare GuardLogix

Product Overview

Allen-Bradley 1768-L45S Original Industrial Spare GuardLogix: System Stability & Industrial Spare Maintenance Value

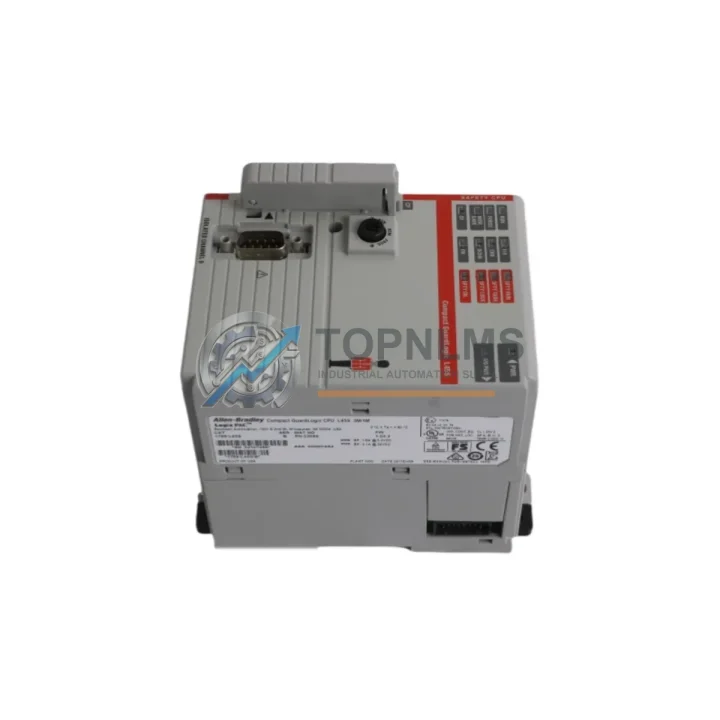

The Allen-Bradley 1768-L45S is a Compact GuardLogix Safety PLC Controller from Rockwell Automation’s trusted 1768 Series platform. Designed for integrated safety and standard control in a single controller architecture, the 1768-L45S delivers up to 2MB of user memory and supports CIP Safety protocol, making it a cornerstone component in safety-rated manufacturing lines, automotive assembly, packaging machinery, and process control environments. For maintenance engineers managing aging control systems, securing a verified original spare of the 1768-L45S is one of the most effective strategies to eliminate unplanned downtime and extend the operational life of existing GuardLogix installations.

Whether you are managing a scheduled shutdown, responding to an emergency controller failure, or building a strategic spare parts inventory, the 1768-L45S represents a high-priority procurement item. Its role as the central processing unit of the Compact GuardLogix platform means that any failure directly halts production. Having a tested, ready-to-deploy unit on the shelf is not a luxury — it is a fundamental requirement of responsible industrial maintenance planning.

Critical Technical Specs Table

Preventive Maintenance Strategy

A Compact GuardLogix system built around the 1768-L45S does not operate in isolation. The controller sits at the center of a tightly integrated control cabinet ecosystem, and a disciplined preventive maintenance program must account for every component in that ecosystem. When scheduling a planned inspection or responding to a controller fault, experienced maintenance teams know that the 1768-L45S rarely fails alone — surrounding components are often under equal stress and should be evaluated simultaneously.

Begin any maintenance cycle by inspecting the 1768-PA3 or 1768-PB3 power supply module, which provides regulated DC power to the controller and local I/O bus. A degraded power supply is one of the most common root causes of intermittent controller faults and should be replaced proactively during any 1768-L45S swap. Alongside the power supply, verify the condition of the 1768-ENBT EtherNet/IP communication bridge module, which handles all network-based I/O and HMI communications — a failing ENBT can cause the controller to lose visibility over remote I/O racks and trigger safety faults.

For digital I/O, inspect the 1769-IQ16 digital input module and 1769-OB16 digital output module installed in the CompactLogix expansion chassis. These modules handle the bulk of field device signaling and are subject to wear from voltage transients and thermal cycling. If the system includes analog process control loops, the 1769-IF4 analog input module should be calibrated and tested during the same maintenance window.

Safety I/O is equally critical. The 1791DS-IB12 or 1791DS-IB8XOBV4 Compact GuardI/O safety input modules connected via DeviceNet Safety or EtherNet/IP Safety should be inspected for wiring integrity and response time compliance. Any degradation in safety I/O response time must be addressed before the system is returned to service.

Do not overlook the 1768-L4S Safety Partner module if your installation uses the dual-controller GuardLogix architecture. This companion module works in lockstep with the 1768-L45S to maintain SIL 2 integrity, and both units should be replaced as a matched pair when either shows signs of fault history. Additionally, inspect all terminal blocks and wiring harnesses within the control cabinet — loose terminations and oxidized contacts are a leading cause of intermittent I/O faults that are often misdiagnosed as controller failures.

For facilities running HMI-integrated lines, verify the firmware and communication health of the connected PanelView Plus 6 or PanelView Plus 7 HMI terminal. HMI communication loss during a controller replacement can delay restart and extend downtime unnecessarily. Finally, ensure that 1784-SD1 or 1784-SD2 SD memory cards used for program backup are current and readable — a corrupted backup card discovered during an emergency replacement is a preventable crisis.

Strategic Replacement Solutions

The 1768-L45S has been a production-line staple for over a decade, and many facilities continue to operate GuardLogix 1768 Series systems well beyond their original design lifecycle. Rockwell Automation’s migration path toward the 5069 CompactLogix and GuardLogix 5580 platform is well-documented, but the capital cost and engineering effort of a full migration is not always justified — particularly for stable, low-risk production lines with years of remaining useful life.

For these environments, maintaining a verified original spare of the 1768-L45S is the most cost-effective strategy. A direct drop-in replacement using the same firmware revision eliminates the need for program re-validation, safety re-certification, and operator retraining. The 1768-L45S is fully backward compatible with all existing 1768 Series I/O modules, communication bridges, and power supplies, meaning a replacement can be completed within a single maintenance shift without any hardware or software modifications.

For facilities managing multiple GuardLogix installations, a centralized spare parts strategy — maintaining one 1768-L45S per production line or per facility — significantly reduces mean time to repair (MTTR) and provides measurable ROI against the cost of unplanned downtime. At typical industrial production rates, a single hour of downtime can cost multiples of the spare part value, making proactive inventory procurement a straightforward financial decision.

Each unit supplied by TOPNLMS is sourced as an original Allen-Bradley component, functionally tested prior to shipment, and backed by a 12-month quality warranty. Units are shipped with appropriate anti-static packaging and documentation to support incoming inspection and traceability requirements.
