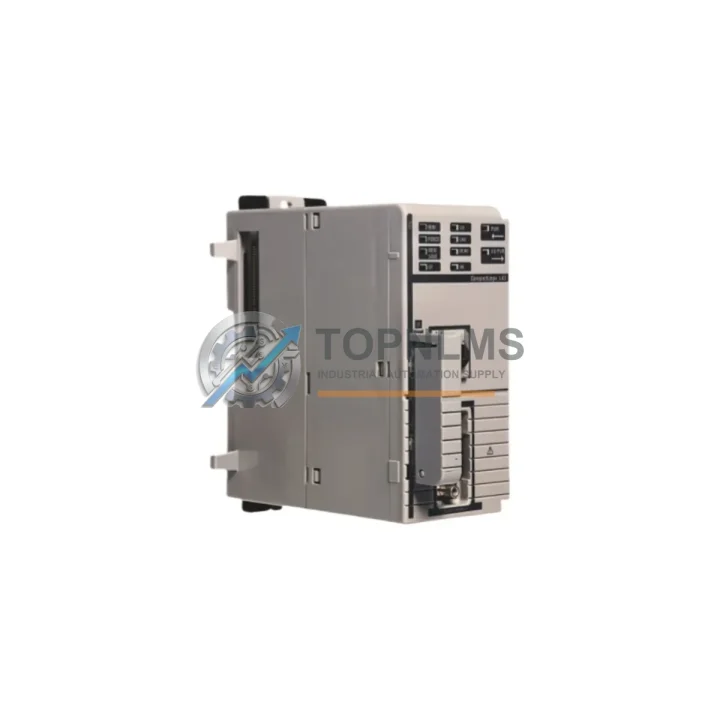

Allen-Bradley 1768-L45/C Replacement for CompactLogix 5345

Product Overview

Allen-Bradley 1768-L45/C Replacement for CompactLogix 5345: Seamless Migration & Upgrade Solution

When your Allen-Bradley 1768-L45/C CompactLogix 5345 PLC processor reaches end-of-life or becomes difficult to source, production continuity depends on a drop-in replacement that preserves your existing wiring topology, ladder logic programs, and communication architecture. TOPNLMS supplies tested, ready-to-ship 1768-L45/C units that allow your engineering team to execute a smooth transition — whether you are performing a like-for-like swap on a running line or planning a phased migration to a newer CompactLogix platform.

The 1768-L45/C belongs to the CompactLogix 5300 family and operates within the 1768 chassis ecosystem. It supports up to 2 MB of user memory, runs Logix5000 firmware, and communicates natively over EtherNet/IP using standard RJ-45 connections. Because the processor uses the same backplane pinout and power requirements as earlier 1768-L43 and 1768-L45 revisions, field wiring to the 1768-PA3 or 1768-PB3 power supply modules does not need to be disturbed during replacement. The existing 1768-ENBT/A EtherNet/IP bridge module and any installed 1768-SDN DeviceNet scanner modules remain fully compatible, eliminating the need to reconfigure your device-level network.

For sites running legacy ControlLogix 5550 or SLC 500 architectures that are now migrating forward, the 1768-L45/C serves as an intermediate modernization step. Engineers familiar with RSLogix 5000 or Studio 5000 Logix Designer can import existing ACD project files directly, preserving tag databases, HMI faceplates linked via FactoryTalk View SE, and PanelView Plus terminal configurations without full re-engineering. The processor’s built-in serial port also supports legacy DF1 communication to older third-party drives or instruments that have not yet been upgraded to EtherNet/IP.

Physical installation is straightforward. The 1768-L45/C mounts in the leftmost slot of the 1768 chassis alongside up to four 1768 I/O modules — such as the 1768-IQ16 digital input module or the 1768-OB16 digital output module — and up to 16 standard 1769 CompactLogix I/O modules on the right-side expansion bus. Cabinet space requirements are identical to the outgoing unit, so no DIN rail modifications or enclosure re-work are needed. The processor draws 1.0 A at 5 VDC from the backplane, within the power budget of the standard 1768-PA3 supply.

Communication compatibility is a critical factor in any migration project. The 1768-L45/C supports CIP (Common Industrial Protocol) natively, enabling seamless integration with Kinetix 6000 and Kinetix 6500 servo drive systems over SERCOS or EtherNet/IP motion networks. If your system includes a 1756-ENBT or 1756-EN2T ControlLogix bridge for plant-level SCADA connectivity, the CompactLogix processor appears as a standard CIP node and requires no gateway reconfiguration. For sites using PROFIBUS DP or Modbus RTU to legacy field devices, the existing 1768-PBAS PROFIBUS adapter or a third-party Modbus gateway continues to operate without firmware changes.

Downtime reduction is the primary driver for stocking a verified replacement unit. TOPNLMS pre-tests each 1768-L45/C against Rockwell Automation firmware compatibility matrices before shipment. Units are shipped with the firmware revision documented on the label, allowing your team to match the exact revision running in your production environment using ControlFLASH or Studio 5000 before the processor is installed in the machine. This eliminates the firmware mismatch risk that commonly causes unexpected faults during emergency replacements.

For planned upgrade projects, the 1768-L45/C also serves as a validated intermediate platform when migrating from discontinued SLC 5/05 or MicroLogix 1500 controllers. The migration path typically involves exporting the legacy program using RSLogix 500, converting tag structures manually or with Rockwell’s Migration Toolkit, and validating I/O mapping against the new 1769 CompactLogix I/O modules. TOPNLMS can supply companion components — including 1769-IQ16 input modules, 1769-OB16 output modules, 1769-IF4 analog input modules, and 1769-ECR end cap resistors — to complete a full chassis build alongside the processor.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete 1768-L45/C migration typically involves more than the processor alone. During chassis rebuild or system expansion, engineers commonly source the 1768-PA3 AC power supply module to maintain the existing power architecture, and the 1768-ENBT/A EtherNet/IP communication bridge to preserve plant-network connectivity without re-IP-addressing the node. On the I/O side, the 1769-IQ16 16-point 24 VDC digital input module and 1769-OB16 16-point digital output module are direct companions that mount on the right-side expansion bus and require no wiring changes when replacing like-for-like modules. For analog signal chains, the 1769-IF4 4-channel analog input module handles 4–20 mA and 0–10 VDC field instruments without signal conditioner changes. Sites with motion control requirements typically pair the processor with the 1768-M04SE SERCOS motion module or transition servo axes to Kinetix 6500 drives over EtherNet/IP. For HMI continuity, existing PanelView Plus 6 terminals connected via EtherNet/IP require only a controller IP address update in FactoryTalk View ME — no screen redesign is necessary. Finally, the 1769-ECR end cap resistor must always be installed at the rightmost I/O slot to terminate the expansion bus correctly; omitting it is a common field error that causes intermittent I/O faults after replacement.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring?
Yes. The 1768-L45/C uses the same 1768 chassis backplane and the same 1769 I/O terminal block wiring. No field wiring changes are required for a like-for-like processor swap.

Q: Do I need to re-download my PLC program?
Yes. After installing the replacement processor, use Studio 5000 Logix Designer to download the existing ACD project file. Ensure the firmware revision on the replacement unit matches your project’s target revision before downloading, using ControlFLASH if a firmware update is needed.

Q: Is EtherNet/IP communication preserved?
Yes. The 1768-L45/C retains the same EtherNet/IP port. Assign the same IP address as the outgoing unit and your SCADA, HMI, and drive network connections will resume without reconfiguration.

Q: Will the replacement fit in the same cabinet space?
Yes. The 1768-L45/C has identical physical dimensions to all prior 1768-L45 series revisions. No DIN rail, enclosure, or mounting hardware changes are required.

Q: What if my system uses DeviceNet or PROFIBUS?
The 1768-SDN DeviceNet scanner and 1768-PBAS PROFIBUS adapter modules remain in their existing chassis slots and are unaffected by the processor swap. Their configurations are stored in the ACD project file and are restored on program download.

Q: How do I verify the replacement unit before installation?
TOPNLMS performs a power-on functional test on each unit prior to shipment. You can additionally perform a bench test by connecting the processor to a laptop running Studio 5000, downloading a minimal test program, and verifying the OK LED status before installing the unit in the production chassis.

Warranty Assurance

Every Allen-Bradley 1768-L45/C supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a documented power-on functional test verifying processor boot, firmware version, communication port activity, and backplane interface integrity. If a unit exhibits any fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement shipment or issue a full refund — whichever resolution minimizes your downtime. Our after-sales response target is one business day for warranty claims, with replacement units dispatched from Xiamen within 3–5 business days. All units are shipped in anti-static packaging with foam protection to prevent transit damage. A test report and shipment certificate are available upon request for quality-assurance documentation requirements.

For volume procurement, scheduled delivery agreements, or technical pre-sales consultation on migration compatibility, contact our industrial automation team directly.
