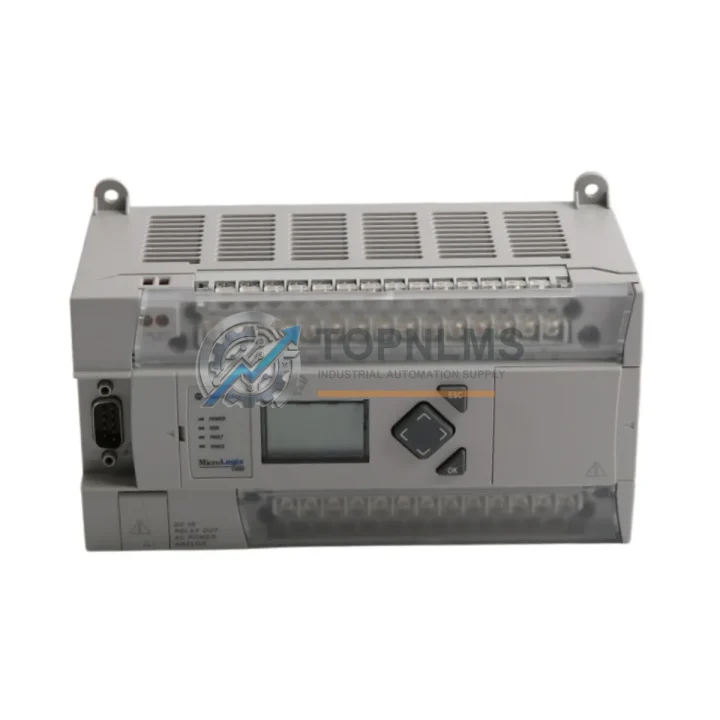

Allen-Bradley 1766-L32BWAA Original Industrial Spare MicroLogix 1400 Compatible

Product Overview

Allen-Bradley 1766-L32BWAA Original Industrial Spare MicroLogix 1400 Compatible: System Stability & Maintenance Value

The Allen-Bradley 1766-L32BWAA is a 32-point MicroLogix 1400 programmable logic controller engineered for demanding industrial environments. As a verified original spare part, it delivers the system stability, signal integrity, and firmware compatibility that maintenance engineers depend on during both scheduled overhauls and emergency replacements. Whether you are managing a continuous production line, a batch processing facility, or a legacy automation system approaching end-of-life, having a certified 1766-L32BWAA on the shelf is a foundational element of any responsible spare parts strategy.

In modern industrial facilities, unplanned downtime caused by controller failure can cost tens of thousands of dollars per hour. The 1766-L32BWAA addresses this risk directly: it is a drop-in replacement for existing MicroLogix 1400 installations, preserving your existing ladder logic programs, I/O wiring, and network topology without requiring re-engineering. Its onboard 24 DC inputs, 8 relay outputs, and high-speed counter capabilities make it suitable for a wide range of discrete and process control applications across automotive, food and beverage, water treatment, and general manufacturing sectors.

Critical Technical Specs

Preventive Maintenance Strategy

A controller replacement event is the ideal moment to audit the entire control cabinet. When replacing or inspecting a 1766-L32BWAA, maintenance teams should simultaneously verify the condition of the 1766-MM1 memory module, which stores the user program and retentive data — a failed or corrupted memory module is a common secondary cause of controller faults that goes undetected until the next failure event.

The power supply feeding the MicroLogix 1400 rack deserves equal attention. The 1766-PA2 or 1766-PB2 power supply modules are frequent wear items in high-cycle environments; replacing them proactively during a controller swap eliminates a common root cause of nuisance trips and voltage sag faults. Alongside the power supply, inspect the 1492-IFM series interface modules and terminal blocks connected to the I/O wiring harness — loose or corroded terminals account for a significant proportion of intermittent I/O faults that are misdiagnosed as controller failures.

For facilities running Ethernet/IP networks, the 1761-NET-ENI Ethernet interface or any managed industrial switch ports connected to the 1766-L32BWAA should be tested for packet loss and latency. Communication faults at the network layer can cause the controller to log false I/O errors. If the installation uses DeviceNet or DH-485 networks, inspect the 1761-NET-DNI or 1761-NET-AIC communication adapters for firmware currency and connector integrity.

Analog signal quality is another critical maintenance checkpoint. If the application uses analog expansion modules such as the 1762-IF4 (4-channel analog input) or 1762-OF4 (4-channel analog output), calibrate and verify signal accuracy during the maintenance window. Signal drift in analog modules is gradual and often masked by process tolerances until it causes a quality or safety event.

Finally, review the condition of the 1762-IQ16 or 1762-OW16 digital expansion I/O modules installed in the same rack. Relay output modules in particular have a finite contact life rated in switching cycles; modules approaching end-of-life should be staged for replacement in the next planned outage. Keeping one spare of each expansion module type alongside the 1766-L32BWAA controller in your storeroom is a best-practice inventory posture that minimizes mean time to repair (MTTR) across the entire MicroLogix 1400 system.

Strategic Replacement Solutions

The 1766-L32BWAA is the direct successor to the MicroLogix 1200 platform and provides a validated upgrade path for facilities still operating 1762-L24BWA or 1762-L40BWA controllers. The expanded memory, integrated Ethernet port, and enhanced instruction set of the MicroLogix 1400 allow engineers to migrate legacy programs with minimal modification, preserving years of validated control logic while gaining modern communication and diagnostic capabilities.

For sites where the original 1766-L32BWAA has been discontinued or is on extended lead time from the OEM, a tested-good original spare from an authorized distributor provides an immediate, code-compatible replacement that avoids the cost and risk of a full system re-engineering project. This approach is particularly valuable in industries with strict change-management and validation requirements, such as pharmaceutical manufacturing, where re-qualifying a new controller platform can take months and significant engineering resources.

Stocking a 1766-L32BWAA spare also supports a broader lifecycle extension strategy for aging MicroLogix 1400 installations. Rather than committing to a full migration to the CompactLogix or ControlLogix platform before the business case is ready, maintenance managers can extend the productive life of existing systems by three to five years through disciplined spare parts management — buying time for a planned, budgeted migration on the organization’s own schedule.

Support FAQ

Q: Is the 1766-L32BWAA compatible with my existing RSLogix 500 program?
A: Yes. The 1766-L32BWAA is fully compatible with programs developed in RSLogix 500 and RSLogix Micro. Programs can be uploaded from a functioning unit or restored from backup via the 1766-MM1 memory module without modification in most standard applications.

Q: What testing is performed before shipment?
A: Each unit undergoes power-on functional verification, I/O point testing, and communication port checks prior to dispatch. Units are shipped in anti-static packaging with inspection documentation. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q: How should I manage inventory for MicroLogix 1400 spares?
A: Industry best practice recommends holding a minimum of one controller spare per three to five installed units, adjusted for criticality and lead time. For high-criticality lines, a one-for-one spare ratio is advisable. Complement the controller spare with at least one each of the associated power supply, memory module, and highest-utilization I/O expansion modules.

Q: Can the 1766-L32BWAA replace a 1766-L32AWA or 1766-L32BXB?
A: The 1766-L32BWAA (120/240V AC power, relay outputs) is not a direct drop-in for the 1766-L32AWA (120V AC power, relay outputs — same power class, minor firmware differences) or the 1766-L32BXB (24V DC power). Compatibility depends on your power supply voltage and output type. Contact our technical team to confirm the correct replacement for your specific installation before ordering.
