Allen-Bradley 1764-MM2 Original Industrial Spare MicroLogix

Product Overview

Allen-Bradley 1764-MM2 Original Industrial Spare MicroLogix: System Stability & Maintenance Value

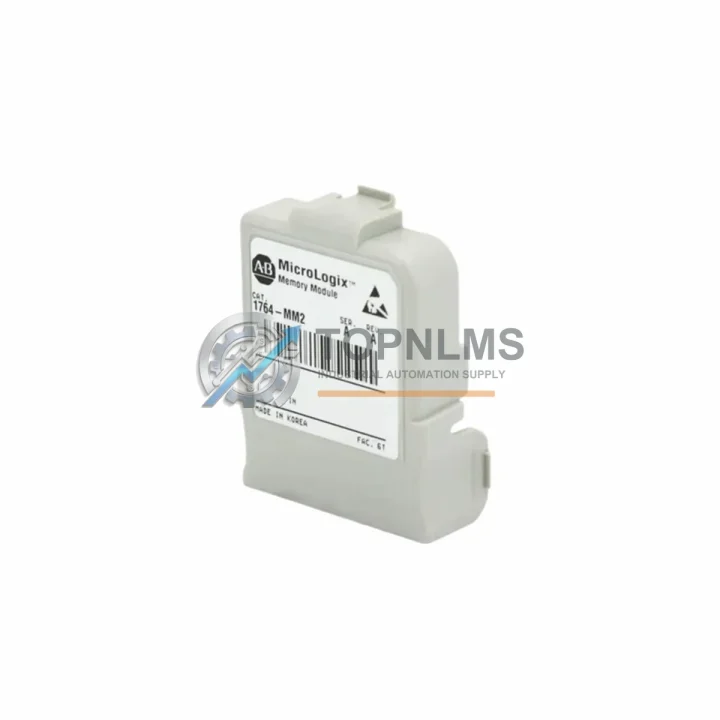

The Allen-Bradley 1764-MM2 is a 32K memory expansion module engineered for the MicroLogix 1500 programmable controller platform. In industrial environments where uptime is non-negotiable, maintaining a verified original spare of the 1764-MM2 is a foundational element of any responsible preventive maintenance program. Whether you are managing a high-cycle discrete manufacturing line, a process control installation, or a legacy automation system that must remain operational for years beyond its original design life, the 1764-MM2 delivers the memory capacity and platform compatibility required to sustain reliable PLC operation without costly controller replacement.

The MicroLogix 1500 series remains widely deployed across food and beverage, automotive, water treatment, and general manufacturing facilities worldwide. As original equipment manufacturers phase out support for older controller families, sourcing genuine original spare modules such as the 1764-MM2 becomes increasingly critical. A verified original module ensures full firmware compatibility, eliminates the risk of counterfeit-induced faults, and allows maintenance teams to restore controller functionality within minutes rather than hours — directly reducing mean time to repair (MTTR) and protecting production throughput.

Critical Technical Specs

Preventive Maintenance Strategy

A memory expansion module replacement is rarely an isolated event. When a MicroLogix 1500 system requires a 1764-MM2 swap, experienced maintenance engineers treat the intervention as an opportunity to audit the broader control cabinet and associated electrical circuits. A structured inspection at this stage can prevent secondary failures and extend the operational life of the entire automation system.

During a 1764-MM2 replacement, it is best practice to simultaneously inspect the 1764-LRP or 1764-LSP processor unit for signs of capacitor aging, firmware currency, and battery backup status. The processor’s onboard battery — typically a 1747-BA lithium cell — should be checked and replaced if the low-battery indicator has been active. Alongside the processor, the 1764-24BWA or 1764-28BXB base unit I/O wiring terminals should be inspected for loose connections, oxidation, and insulation degradation, particularly in high-vibration or high-humidity environments.

The power supply feeding the MicroLogix 1500 rack deserves equal attention. A degraded 1764-LRP power supply section or an undersized external 24VDC supply can cause intermittent resets that are often misdiagnosed as memory faults. Verifying supply voltage stability with a calibrated meter before and after module replacement eliminates this variable. If the system uses an external Allen-Bradley 1606-XLP or 1606-XLS series power supply, inspect for output ripple and thermal performance.

For installations where the MicroLogix 1500 communicates over a network, the 1761-NET-ENI Ethernet interface or 1761-NET-DNI DeviceNet interface should be checked for firmware version compatibility with the updated memory configuration. Communication modules are a common source of post-maintenance instability if overlooked during a controller service event. Similarly, any 1762-series MicroLogix expansion I/O modules — such as the 1762-IQ16 digital input module or 1762-OW16 relay output module — should be seated firmly and their terminal blocks re-torqued to specification.

If the control cabinet includes Allen-Bradley 700-series relay modules or 1492-series terminal blocks, these should be visually inspected for contact wear and conductor integrity. Relay contacts in high-cycle applications typically require replacement every 12–18 months under normal load conditions. Fuse holders and 1492-GH fuse blocks should be checked for continuity and thermal discoloration. Completing these checks during a planned 1764-MM2 replacement maximizes the value of each maintenance window and minimizes the probability of an unplanned shutdown in the weeks following the intervention.

Strategic Replacement Solutions

The 1764-MM2 is the direct original replacement for memory expansion in MicroLogix 1500 systems. For facilities operating legacy MicroLogix 1500 installations that are no longer covered by Rockwell Automation’s standard product lifecycle support, sourcing a genuine original 1764-MM2 is the most cost-effective path to system continuity. Replacing the memory module with an original part preserves the existing ladder logic program, retains all data table configurations, and eliminates the need for controller re-commissioning — a process that can consume 4–8 hours of skilled engineering time per installation.

For maintenance managers responsible for multi-site operations, stocking one or two 1764-MM2 units per facility is a proven strategy for reducing emergency procurement lead times. Industrial spare parts sourced under time pressure from unverified channels carry elevated risk of counterfeit or refurbished units that may pass initial power-on tests but fail under sustained load. Purchasing from a verified supplier with pre-shipment functional testing and a documented 12-month warranty eliminates this risk and provides a clear audit trail for maintenance records and ISO compliance documentation.

For facilities considering a phased migration from MicroLogix 1500 to a newer platform such as the Allen-Bradley Micro820 or Micro850 controller, maintaining the existing MicroLogix 1500 system in full operational condition with a genuine 1764-MM2 allows the migration to proceed on a planned schedule rather than being forced by an emergency failure. This approach protects capital expenditure planning and allows engineering teams to validate the new platform in parallel without production risk.

Support FAQ

Q1: Is the 1764-MM2 compatible with all MicroLogix 1500 processor units?
The 1764-MM2 is compatible with the 1764-LRP and 1764-LSP MicroLogix 1500 processor units. It is not compatible with MicroLogix 1000 or MicroLogix 1200 controllers. Always verify the processor catalog number before ordering to confirm compatibility.

Q2: What pre-shipment testing is performed on the 1764-MM2?
Each unit undergoes functional testing prior to dispatch to verify module recognition, memory read/write integrity, and physical connector condition. A test report is available upon request. All units are shipped in anti-static packaging with protective end caps.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of purchase. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q4: Can the 1764-MM2 be installed in the field without specialist tools?
Yes. The 1764-MM2 plugs directly into the memory expansion slot on the MicroLogix 1500 processor unit without tools. The controller must be powered down before installation. After installation, the processor will automatically detect the expanded memory on the next power cycle. It is recommended to upload the existing program from the controller before replacement as a precautionary backup measure.
