Allen-Bradley 1764-28BXB Original Industrial Spare MicroLogix 1500

Product Overview

Allen-Bradley 1764-28BXB Original Industrial Spare MicroLogix 1500: System Stability and Maintenance Value

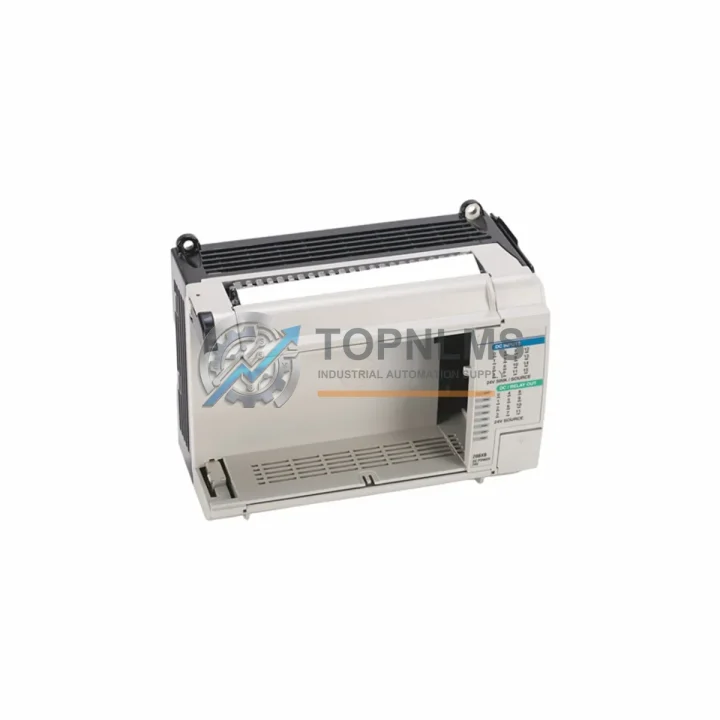

The Allen-Bradley 1764-28BXB is the 28-point DC input / relay output base unit for the MicroLogix 1500 programmable controller series — one of Rockwell Automation’s most widely deployed compact PLC platforms in discrete manufacturing, material handling, HVAC control, and process automation. Sourced as an original spare, the 1764-28BXB is a critical component for any maintenance team responsible for keeping MicroLogix 1500-based control panels operational. Whether you are managing a planned shutdown, responding to an unplanned fault, or building a strategic spare-parts inventory, having a verified 1764-28BXB on the shelf is the single most effective way to eliminate extended downtime risk on this platform.

In industrial environments where MicroLogix 1500 controllers have been in service for five, ten, or fifteen years, the base unit is often the first component to show wear — relay output contacts degrade with switching cycles, DC input circuits can be damaged by transient voltage spikes, and the backplane connector that links the base unit to the 1764-LRP or 1764-LSP processor module is subject to mechanical fatigue from repeated maintenance access. A stocked 1764-28BXB allows your maintenance team to execute a base-unit swap in under thirty minutes, restoring full system functionality without waiting days or weeks for emergency procurement.

Critical Technical Specs

Preventive Maintenance Strategy for MicroLogix 1500 Control Systems

A structured preventive maintenance program for any panel housing a MicroLogix 1500 controller should treat the 1764-28BXB base unit as the central node of a broader inspection and spare-parts strategy. During scheduled shutdowns, maintenance engineers should not limit their inspection to the base unit alone — the entire control circuit deserves systematic review.

Begin with the processor module. The 1764-LRP processor is the intelligence layer that works in tandem with the 1764-28BXB base unit; if the base unit is being replaced due to age or fault, the processor’s firmware version and battery backup status should be verified simultaneously. A depleted 1764-BAT lithium battery in the processor can cause program loss during a power cycle, compounding the impact of any base-unit replacement event.

Next, inspect the I/O expansion side. Many MicroLogix 1500 installations use 1769 Compact I/O expansion modules — including 1769-IQ16 digital input modules, 1769-OW16 relay output modules, and 1769-IF4 analog input modules — connected via the right-side expansion bus. These modules share the same control cabinet environment as the 1764-28BXB and are subject to the same thermal cycling and vibration stresses. Checking module seating, terminal block torque, and LED status indicators during a base-unit replacement is a low-cost step that prevents future faults.

Power supply integrity is equally important. The 1764-28BXB draws its 24V DC logic power from the panel’s power supply rail. A failing or undersized 24V DC power supply — such as an aging 1606-XLP or equivalent — can cause intermittent input faults that are misdiagnosed as base-unit failures. Verifying output voltage ripple and load capacity during maintenance prevents unnecessary component replacement.

Communication infrastructure should also be reviewed. If the MicroLogix 1500 communicates via a 1761-NET-ENI Ethernet interface or a 1747-PIC DH-485 interface cable to a SCADA system or HMI panel, inspect the cable connectors and verify communication integrity. A 1764-28BXB replacement that is not followed by a communication verification step can leave the system running blind — with the controller operational but disconnected from supervisory monitoring.

Finally, consider the wiring termination points. The relay output terminals on the 1764-28BXB are screw-type and subject to loosening from vibration over time. During any base-unit inspection or replacement, re-torque all output terminal screws and inspect for signs of arcing or discoloration on high-cycle relay outputs. If relay outputs are switching inductive loads such as motor contactors or solenoid valves, installing surge suppressors across the load coils will significantly extend relay contact life on the replacement unit.

A well-maintained MicroLogix 1500 system — with a stocked 1764-28BXB spare, verified processor battery, inspected I/O modules, and confirmed power supply health — can deliver reliable service well beyond its nominal design life, protecting capital investment in legacy automation infrastructure.

Strategic Replacement Solutions

The 1764-28BXB has been in production for over two decades, and many facilities are now operating systems where the original base unit is approaching or has exceeded its expected service life. For maintenance teams managing these aging installations, the strategic question is not whether to replace the base unit, but when and how to do so with minimum disruption.

A direct 1764-28BXB replacement is the lowest-risk path. Because the base unit is a drop-in mechanical and electrical replacement for any existing 1764-28BXB installation, the swap requires no program changes, no rewiring beyond reconnecting the existing field wiring to the terminal blocks, and no reconfiguration of the processor module. The 1764-LRP or 1764-LSP processor is simply transferred from the old base unit to the new one, and the system is restored to full operation. This approach preserves the existing control logic, maintains all I/O addressing, and eliminates the risk of introducing software errors during a crisis replacement event.

For facilities managing multiple MicroLogix 1500 installations across different production lines or buildings, a centralized spare-parts strategy — holding one or two 1764-28BXB units in the maintenance storeroom — is significantly more cost-effective than emergency procurement. Emergency sourcing of obsolete or end-of-life Allen-Bradley components can carry substantial price premiums and lead times measured in weeks. A pre-positioned spare eliminates this risk entirely and allows maintenance teams to meet internal SLA targets for control system restoration.

Where a full platform migration to a newer controller — such as the Allen-Bradley Micro820 or Micro850 — is being planned, the 1764-28BXB spare serves as a bridge component, keeping the existing system operational during the transition period without forcing an unplanned migration under production pressure.

Support FAQ

Q1: Is this 1764-28BXB an original Allen-Bradley component or a compatible replacement?
This is an original Allen-Bradley / Rockwell Automation 1764-28BXB base unit. All units are sourced from authorized supply channels and undergo pre-shipment functional inspection. Each unit is covered by a 12-month TOPNLMS warranty.

Q2: What processors are compatible with the 1764-28BXB base unit?
The 1764-28BXB is compatible with the 1764-LRP and 1764-LSP MicroLogix 1500 processor modules. The processor module is not included and must be transferred from the existing installation or ordered separately. No firmware changes are required when replacing the base unit with a same-series unit.

Q3: How is the unit tested before shipment?
Each 1764-28BXB undergoes visual inspection, connector integrity verification, and functional power-on testing prior to shipment. Units are packed in anti-static protective packaging with foam cushioning to prevent transit damage. A test report is available upon request.

Q4: What is the lead time and warranty coverage?
In-stock units ship within 1–3 business days. International shipments are supported with full export documentation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed via [email protected] with a target response time of 24 business hours.
