Allen-Bradley 1762-MM1 Ruggedized Memory Module for Harsh Environments

Product Overview

Allen-Bradley 1762-MM1 Ruggedized Memory Module for Harsh Environments

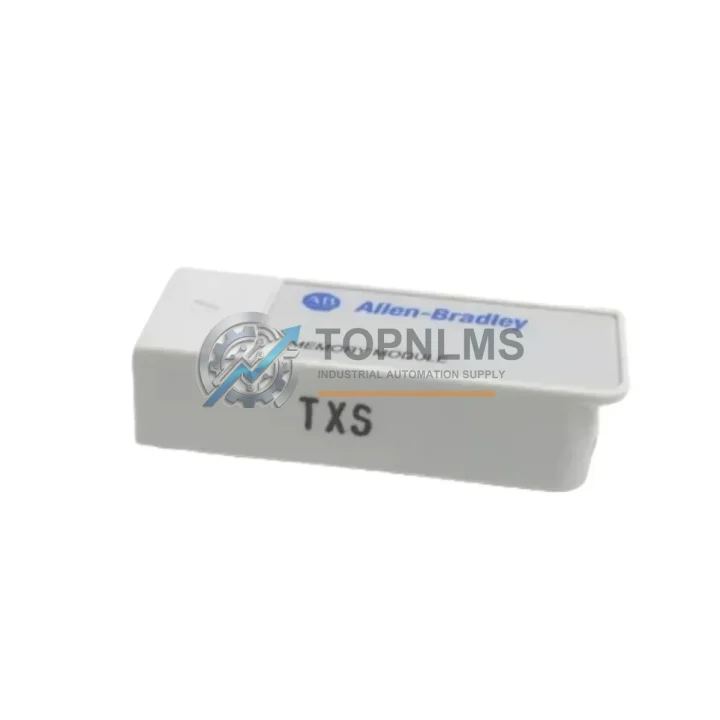

The Allen-Bradley 1762-MM1 is an external memory module engineered for the MicroLogix 1100 and MicroLogix 1400 programmable logic controller platforms. Designed to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — this module delivers the data retention and program backup integrity that mission-critical automation systems require. Its compact, plug-in form factor integrates directly with the MicroLogix controller chassis, enabling rapid program transfer, firmware backup, and recipe storage without interrupting production cycles.

In continuous production environments where unplanned downtime translates directly into revenue loss, the 1762-MM1 serves as a critical safeguard. It stores the full user program, data files, and configuration parameters of the MicroLogix controller, allowing maintenance teams to restore a replacement controller to full operational status within minutes rather than hours. This backup-and-restore capability is especially valuable in remote installations — offshore platforms, water treatment pump stations, and substation automation panels — where engineering support is not immediately available on-site.

The module’s solid-state non-volatile memory architecture ensures data integrity even during sudden power loss events, voltage transients, or electromagnetic interference (EMI) surges common in variable frequency drive (VFD) environments. When deployed alongside Allen-Bradley 1762-IQ8 digital input modules, 1762-OW8 relay output modules, and 1762-IF4 analog input modules within a MicroLogix 1400 I/O expansion rack, the 1762-MM1 provides a unified program repository that keeps the entire distributed I/O architecture synchronized and recoverable. Integration with 1761-NET-ENI Ethernet interface adapters further extends remote program management capability over standard industrial Ethernet networks.

For facilities running Rockwell Automation’s broader control architecture, the 1762-MM1 complements ControlLogix and CompactLogix ecosystems by serving as a field-level backup node for edge controllers. In hybrid architectures where MicroLogix 1100 units handle local interlocking logic while a ControlLogix L7x series processor manages supervisory control, the memory module ensures that local logic remains intact and independently recoverable — a key requirement for SIL-rated safety instrumented systems (SIS) and functional safety compliance under IEC 61511.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1762-MM1 is most effective when deployed as part of a fully integrated MicroLogix control system. In a typical control cabinet installation, the module works in concert with the 1762-IQ8 8-point 24VDC digital input module and the 1762-OW8 8-point relay output module to form a complete discrete I/O layer. For process control applications requiring analog signal conditioning, the 1762-IF4 4-channel analog input module and 1762-OF4 4-channel analog output module extend the controller’s measurement and actuation range to cover 4–20 mA process loops, RTD temperature sensors, and pressure transmitters.

Communication integrity is maintained through the 1761-NET-ENI serial-to-Ethernet adapter, which bridges the MicroLogix RS-232 DF1 port to plant-floor Ethernet/IP networks, enabling SCADA integration and remote diagnostics. In installations where DeviceNet fieldbus connectivity is required — common in automotive assembly and material handling — the 1761-NET-DNI DeviceNet interface module provides seamless protocol translation without requiring a separate gateway PLC.

Power supply reliability is equally critical. The 1606-XLP power supply series from Allen-Bradley provides regulated 24VDC rail power to the MicroLogix rack and field devices, with wide-input voltage tolerance (85–264 VAC) that accommodates unstable grid conditions in developing industrial regions. Surge protection is further reinforced by 1492-SP series supplementary protectors installed on the DIN rail adjacent to the controller, guarding against transient overvoltage events from motor starts and capacitor bank switching.

For safety-critical applications, the 440C-CR30 safety relay module or GuardLogix safety controller can be integrated into the same control cabinet, with the MicroLogix 1400 handling standard machine control while the safety layer manages emergency stop (E-stop) circuits, light curtain monitoring, and two-hand control interlocking. The 1762-MM1 ensures that the MicroLogix program governing these interlocks is always backed up and restorable, supporting rapid recovery after a controller fault without compromising the safety architecture.

Application in Critical Infrastructure

In oil and gas upstream operations, MicroLogix 1400 controllers equipped with the 1762-MM1 memory module are deployed in wellhead automation panels, managing electric submersible pump (ESP) control, wellhead pressure monitoring, and emergency shutdown (ESD) logic. The module’s non-volatile memory ensures that ESD trip setpoints and interlock logic survive power cycling events — a mandatory requirement under API 14C and IEC 61511 functional safety standards. Offshore platform environments subject the controller to salt-laden air, high humidity, and continuous mechanical vibration from rotating machinery; the 1762-MM1’s solid-state design has no moving parts susceptible to mechanical fatigue.

In municipal water treatment and wastewater facilities, MicroLogix 1100 controllers manage pump station sequencing, chlorination dosing, and SCADA telemetry. The 1762-MM1 enables plant operators to maintain a current backup of all pump sequencing logic and PID tuning parameters, allowing a replacement controller to be commissioned from the memory module within a single maintenance window — critical for facilities operating under continuous discharge permit obligations.

Mining and mineral processing operations present some of the harshest environments for electronic control equipment: fine conductive dust, high ambient temperatures from crushing and grinding equipment, and severe electrical noise from large variable speed drives. The 1762-MM1’s flash memory architecture is immune to the data corruption risks that affect battery-backed RAM modules in these conditions, making it the preferred backup medium for conveyor control, crusher sequencing, and flotation cell automation systems.

In power generation and substation automation, MicroLogix controllers with 1762-MM1 modules are used for auxiliary equipment control — cooling fan sequencing, battery charger monitoring, and transformer tap changer control — where the ability to rapidly restore controller programs after a lightning strike or switchgear fault is essential for grid stability and regulatory compliance.
