Allen-Bradley 1756-RIO Replacement for ControlLogix

Product Overview

Allen-Bradley 1756-RIO Replacement for ControlLogix: Smooth Migration from Legacy Remote I/O Systems

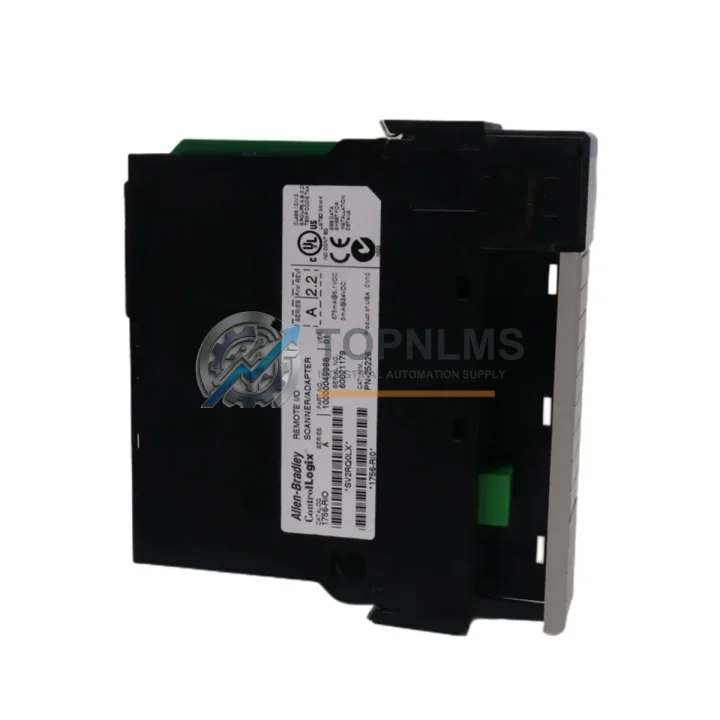

The Allen-Bradley 1756-RIO ControlLogix Remote I/O Scanner Module is a critical communication bridge in legacy Rockwell Automation control architectures. As industrial facilities transition away from aging PLC-2, PLC-5, and SLC 500 platforms, the 1756-RIO serves as a proven migration path — enabling ControlLogix controllers to communicate directly with existing Remote I/O (RIO) networks without requiring a full rewire of field devices or I/O racks. TOPNLMS maintains verified stock of the 1756-RIO to support urgent replacement, planned upgrades, and system modernization projects across manufacturing, oil & gas, water treatment, and process automation industries.

For facilities still operating legacy Allen-Bradley 1771 I/O racks, the 1756-RIO eliminates the need for immediate full-system replacement. The module installs into a standard 1756 ControlLogix chassis — such as the 1756-A7, 1756-A10, or 1756-A13 — and communicates with existing RIO networks at 57.6K, 115.2K, or 230.4K baud. This allows engineers to retain proven field wiring, existing I/O modules, and established ladder logic structures while migrating the controller platform to the modern ControlLogix architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy PLC-5 or SLC 500 system to ControlLogix using the 1756-RIO typically involves several coordinated components. The 1756-RIO module itself occupies a single slot in the 1756 ControlLogix chassis, so engineers must first confirm chassis capacity — the 1756-A7 (7-slot) is common in compact panel installations, while the 1756-A10 or 1756-A13 suits larger multi-module configurations. A compatible 1756-L73 or 1756-L74 ControlLogix controller handles program execution, with the 1756-RIO configured as a scanner in the I/O tree within Studio 5000.

On the power side, the 1756-PA72 AC power supply or 1756-PB72 DC variant provides regulated backplane power to the chassis. Engineers migrating from 1771-based systems should verify that the existing Belden 9463 RIO cable and termination resistors remain intact — the 1756-RIO uses the same physical RIO network, so no re-cabling of field I/O drops is required. Adapter modules such as the 1771-ASB continue to serve as remote I/O adapters on the field side, preserving the existing 1771 I/O rack infrastructure.

For facilities that also need to integrate EtherNet/IP or ControlNet alongside the legacy RIO network, the 1756-ENBT or 1756-EN2T EtherNet/IP bridge module can be added to the same chassis, enabling hybrid communication architectures during phased migration. Similarly, the 1756-CNB ControlNet bridge module supports sites with existing ControlNet segments. Where SCADA or HMI connectivity is required, a PanelView Plus 7 terminal connected via EtherNet/IP provides a modern operator interface without disrupting the underlying RIO field network.

Programming migration from RSLogix 5 to Studio 5000 Logix Designer is supported by Rockwell’s migration utilities, and the 1756-RIO’s block transfer and discrete I/O mapping closely mirrors the PLC-5 RIO scanner behavior, reducing re-engineering effort. A 1747-PIC or 1784-U2DHP programming cable may be needed during parallel commissioning to maintain access to legacy SLC 500 nodes still online during the cutover phase.

Retrofit Guidance FAQ

Q: Can the 1756-RIO reuse existing RIO field wiring?
Yes. The 1756-RIO communicates over the same Belden 9463 (blue hose) RIO cable used by legacy PLC-5 and SLC 500 systems. No re-cabling of field drops or I/O racks is required, which significantly reduces installation time and downtime risk during cutover.

Q: Is the 1756-RIO compatible with 1771 I/O racks and adapters?
Yes. The 1756-RIO acts as the scanner (master) on the RIO network, while existing 1771-ASB or 1771-ASBT adapters continue to serve as remote adapters. The 1771 I/O modules, wiring, and rack hardware remain unchanged.

Q: What baud rate should I configure?
Match the baud rate to your existing RIO network setting — typically 57.6K for longer cable runs or 230.4K for shorter, high-speed segments. The 1756-RIO supports all three standard RIO baud rates and must match all adapters on the same network segment.

Q: How is the 1756-RIO configured in Studio 5000?
The module is added to the I/O tree in Studio 5000 Logix Designer as a Generic 1756 Module or using the specific EDS/AOP profile. Block transfer read (BTR) and block transfer write (BTW) instructions replace the legacy PLC-5 BT instructions, with similar data table mapping logic.

Q: Does the 1756-RIO fit in any 1756 chassis?
Yes. It occupies a single slot in any 1756 ControlLogix chassis (1756-A4, A7, A10, A13, A17). Ensure the chassis power supply — 1756-PA72 or 1756-PB72 — has sufficient current capacity for the total module load.

Q: What is the physical installation space requirement?
The 1756-RIO is a standard single-width 1756 module. It requires one chassis slot and standard DIN-rail or panel-mount chassis installation. No additional mounting hardware beyond the standard 1756 chassis is needed.

Warranty Assurance

Every 1756-RIO unit shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on testing, communication port inspection, and firmware version confirmation. Units are packaged in anti-static ESD-safe materials with protective foam inserts to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support — no lengthy RMA queues or third-party authorization required. Our technical team responds to warranty claims and pre-shipment technical inquiries within one business day. Expedited shipping options are available for urgent production-line replacement scenarios.

For B2B procurement teams, TOPNLMS issues commercial invoices, packing lists, and certificates of conformance upon request. Volume pricing and blanket purchase order arrangements are available for MRO and spare parts programs. All units are sourced through verified supply channels and are not refurbished or counterfeit.

Stock availability is confirmed at time of order. Standard lead time for in-stock units is 3–5 business days for international air freight. Express DHL/FedEx options reduce transit time to 2–3 business days for most destinations.
