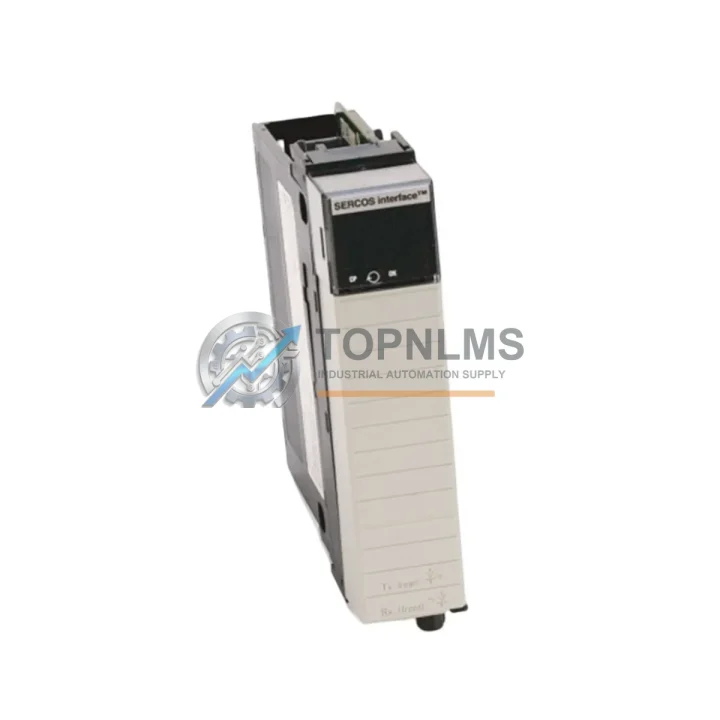

Allen-Bradley 1756-M16SE Ruggedized Motion Module

Product Overview

Allen-Bradley 1756-M16SE Ruggedized Motion Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1756-M16SE is a 16-axis SERCOS motion coordinator engineered for the ControlLogix platform, purpose-built to deliver deterministic, high-precision motion control in the most demanding industrial environments. Whether deployed on a continuous steel rolling line, an offshore drilling platform, a chemical processing facility, or a high-throughput automotive assembly cell, the 1756-M16SE maintains synchronization integrity and command fidelity where lesser modules fail. Its ruggedized design addresses the full spectrum of industrial hazards — extreme temperature cycling, persistent vibration, airborne particulate contamination, high-humidity condensation, and broadband electromagnetic interference — making it a cornerstone component for engineers who cannot afford unplanned downtime.

Installed within a 1756 ControlLogix chassis alongside modules such as the 1756-L73 or 1756-L83E controller, the 1756-M16SE communicates over the SERCOS (Serial Real-time Communication System) fiber-optic ring, a protocol specifically designed for noise-immune, high-speed motion data exchange. The fiber medium eliminates ground-loop interference and provides inherent galvanic isolation — a critical advantage in environments with heavy welding equipment, large variable-frequency drives, or high-voltage switchgear operating in close proximity. In facilities where the 1756-IB16 digital input module and 1756-OB16E digital output module handle discrete I/O, the 1756-M16SE manages the coordinated motion layer with microsecond-level cycle times, ensuring that servo axes remain tightly synchronized even under dynamic load changes.

In high-temperature foundry and metal casting environments, where ambient temperatures routinely exceed standard industrial ratings, the 1756-M16SE’s thermal management design sustains reliable operation without derating. Paired with a 1756-PA75 or 1756-PB75 power supply module providing stable, filtered DC bus voltage, the motion coordinator maintains consistent performance even when the control cabinet is subjected to radiated heat from nearby furnaces or induction heating equipment. The module’s conformal-coated circuit board resists moisture ingress and corrosive atmospheres — a necessity in pulp and paper mills, wastewater treatment plants, and coastal petrochemical installations where salt-laden air accelerates component degradation.

Vibration and mechanical shock are persistent threats in mining, quarrying, and heavy press operations. The 1756-M16SE is designed to withstand the shock and vibration profiles defined in IEC 61131-2, ensuring that the module remains seated and fully operational in environments where the control panel itself is subject to continuous mechanical excitation. When integrated with a 1756-EN2T EtherNet/IP communication module for supervisory connectivity and a 1756-RM2 redundancy module for high-availability architectures, the overall system achieves the fault-tolerant posture required in critical infrastructure applications such as power generation, water distribution, and oil and gas pipeline control.

For safety-instrumented system architectures, the 1756-M16SE operates alongside GuardLogix safety controllers and 1791DS-IB12 safety I/O modules, supporting machine safety zones where motion must be halted or speed-limited in response to safety relay or light curtain signals. This integration capability makes the module suitable for SIL 2 and SIL 3 process environments where motion control and functional safety must coexist within a unified control architecture. The SERCOS interface supports safe torque-off and safe stop functions when paired with compatible servo drives, reducing the complexity of the safety circuit design and minimizing the number of discrete wiring connections in the control cabinet.

From a procurement and lifecycle management perspective, the 1756-M16SE represents a high-value spare parts investment. Allen-Bradley ControlLogix hardware has an exceptionally long installed base, and the 1756 platform remains in active production and support. Facilities that standardize on ControlLogix benefit from a consistent spare parts strategy: a single 1756-M16SE module can replace a failed unit across multiple machine lines that share the same platform, reducing the total number of unique spare part numbers that must be stocked. Each unit supplied by TOPNLMS undergoes functional verification testing prior to shipment, including SERCOS ring initialization, axis configuration upload, and communication integrity checks, ensuring that the module is ready for immediate installation without requiring on-site debugging.

TOPNLMS maintains ready inventory of the 1756-M16SE and associated ControlLogix components, with order processing and shipment typically completed within 1–3 business days. International logistics are supported with full commercial documentation including packing lists, certificates of origin, and customs invoices. All units are covered by a 12-month warranty against manufacturing defects and functional failure, with direct technical support available from our engineering team throughout the warranty period.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-M16SE is rarely deployed in isolation — its full value is realized as part of a coordinated ControlLogix system architecture. In a typical high-availability machine control cabinet, the module operates alongside the 1756-L73 controller, which executes the motion program and manages the SERCOS ring initialization sequence. The 1756-EN2T EtherNet/IP bridge module provides upstream connectivity to the plant SCADA or MES network, while the 1756-RM2 redundancy module ensures that a controller failover does not interrupt the motion coordinator’s axis state. On the I/O layer, the 1756-IB16 and 1756-OB16E modules handle discrete signals from proximity sensors, limit switches, and solenoid valves, feeding real-time position and status data to the motion program.

Power integrity is maintained by the 1756-PA75 AC power supply, which provides regulated, filtered voltage to the chassis backplane and protects downstream modules from line transients and voltage sags common in heavy industrial facilities. For applications requiring functional safety, the 1756-M16SE integrates with GuardLogix safety controllers and 1791DS-IB12 safety I/O modules, enabling safe stop and safe torque-off functions without requiring a separate safety relay chain. In distributed architectures, the 1756-DNB DeviceNet bridge or 1756-CN2 ControlNet module extends the control network to remote I/O drops and field devices, maintaining deterministic communication even in electrically noisy environments. Terminal modules and marshalling panels within the control cabinet are wired using shielded, twisted-pair cabling with proper grounding practices, completing the EMI protection strategy that the 1756-M16SE’s fiber-optic SERCOS interface initiates at the motion layer.

Application in Critical Infrastructure

The 1756-M16SE is deployed across a broad range of critical infrastructure sectors where motion control reliability directly affects production continuity, personnel safety, and regulatory compliance. In oil and gas upstream operations, the module coordinates the multi-axis motion of drilling rig top-drive systems and pipe-handling equipment, where a motion fault can result in costly non-productive time or, in worst cases, a well-control incident. The SERCOS fiber ring’s immunity to the intense electromagnetic fields generated by mud motor drives and top-drive VFDs ensures that axis commands are executed without corruption.

In electric power generation facilities — including thermal, hydro, and combined-cycle plants — the 1756-M16SE controls the positioning of turbine inlet guide vanes, fuel control valves, and generator excitation systems, where precise, repeatable motion is essential for grid frequency regulation and emissions compliance. Water and wastewater treatment plants rely on the module to coordinate the motion of filter press mechanisms, sludge dewatering centrifuges, and chemical dosing pump drives, operating continuously in high-humidity, chemically aggressive environments. In the metals and mining sector, the 1756-M16SE manages the synchronized motion of rolling mill stands, coiler drives, and crane hoisting mechanisms, where axis synchronization errors measured in milliseconds translate directly into product quality defects or structural overloads. Across all these applications, the module’s rugged design, long-term platform support, and availability as a stocked spare part from TOPNLMS make it a reliable foundation for both new installations and brownfield upgrades.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all functional defects, including SERCOS communication failures, backplane interface faults, and axis configuration errors attributable to the module hardware. If a warranty issue is identified, contact TOPNLMS at [email protected] with the order number and a description of the fault. Our engineering team will provide remote diagnostic support and, if the fault is confirmed, arrange a replacement shipment or repair at no additional cost.

Q2: What pre-shipment testing is performed on the 1756-M16SE?
Each 1756-M16SE unit undergoes functional verification prior to shipment, including SERCOS ring initialization, backplane communication handshake, and firmware version confirmation. Units are inspected for physical integrity, connector condition, and conformal coating coverage. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 1756-M16SE compatible with all ControlLogix chassis and controller revisions?
The 1756-M16SE is compatible with all standard 1756 ControlLogix chassis sizes (4, 7, 10, 13, and 17 slots) and is supported by 1756-L6x, 1756-L7x, and 1756-L8x series controllers running RSLogix 5000 or Studio 5000 Logix Designer. Firmware compatibility should be verified against the specific controller revision in the target system; TOPNLMS technical support can assist with firmware matching prior to order confirmation.

Q4: Can TOPNLMS support long-term supply and replacement for the 1756-M16SE?
Yes. TOPNLMS maintains ongoing inventory of the 1756-M16SE and related ControlLogix components to support both immediate replacement needs and planned maintenance programs. For facilities with multiple ControlLogix installations, we offer volume pricing and reserved stock arrangements to ensure that critical spare parts are available when needed, minimizing the risk of extended downtime due to parts unavailability.
