Allen-Bradley 1756-L7SP Replacement for ControlLogix L7: Seamless Safety System Migration

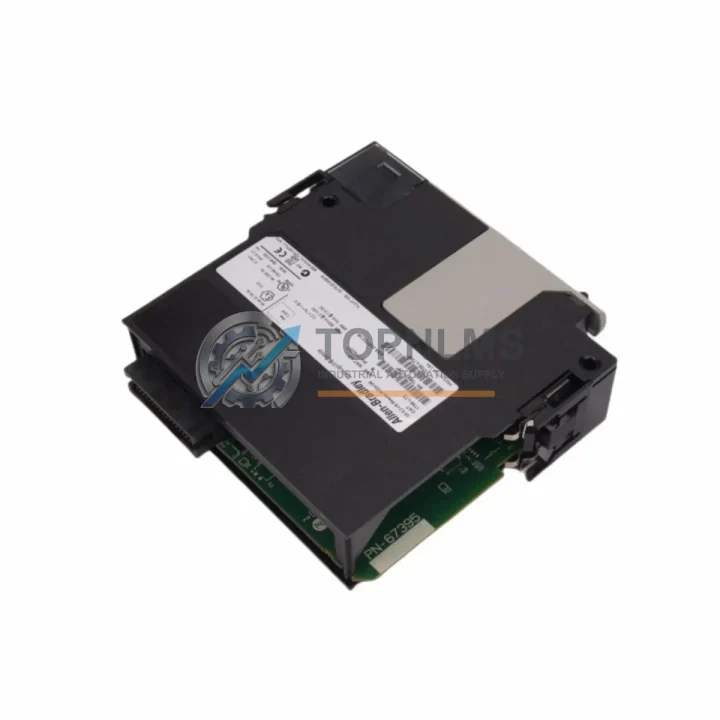

The Allen-Bradley 1756-L7SP ControlLogix Safety Partner module is the dedicated safety co-processor for the ControlLogix L7 controller platform, delivering IEC 61508 SIL 3 and ISO 13849 PLe certified safety logic execution. As legacy ControlLogix L6 and early L7 installations approach end-of-life or as plant engineers seek to consolidate safety and standard control on a single chassis, the 1756-L7SP provides a validated, drop-in upgrade path that preserves existing 1756-series rack infrastructure, wiring terminations, and RSLogix 5000 / Studio 5000 project files.

At TOPNLMS, we stock the 1756-L7SP as a tested, ready-to-ship replacement module for customers migrating from discontinued safety controllers, upgrading from the earlier 1756-L61S or 1756-L62S safety controllers, or expanding an existing ControlLogix chassis to add a certified safety partner alongside a standard 1756-L73 or 1756-L74 controller. Every unit ships with a 12-month warranty and a pre-shipment functional test report.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1756-L7SP Safety Partner rarely involves a single module swap. In practice, plant engineers upgrading from a legacy GuardLogix L6xS or consolidating a distributed safety architecture will also evaluate several adjacent components within the same 1756 chassis and control cabinet.

The most common companion upgrade is the standard controller itself. The 1756-L7SP must be paired with a 1756-L73 or 1756-L74 ControlLogix controller occupying an adjacent slot in the same chassis — the safety partner communicates exclusively over the 1756 ControlBus backplane and cannot operate standalone. If the existing standard controller is an older 1756-L63 or 1756-L64, it must be upgraded simultaneously to an L7x variant to support the L7SP pairing protocol.

On the I/O side, customers migrating from legacy safety I/O wired to a 1756-IB16S digital safety input module or a 1756-OB16S digital safety output module will find that these modules remain fully compatible with the 1756-L7SP without rewiring. The terminal block wiring, field device connections, and safety loop configurations carry over directly, which is a significant advantage in reducing migration downtime in live production environments.

For process applications requiring analog safety measurement, the 1756-IF8S analog safety input module integrates natively with the 1756-L7SP safety task, enabling SIL 2 / SIL 3 certified analog loops for pressure, temperature, and flow safety instrumented functions (SIFs) without additional signal conditioning hardware.

Network connectivity is typically handled by a 1756-EN2TR EtherNet/IP communication module, which provides dual-port, Device Level Ring (DLR) topology support — a common requirement in modernized safety architectures where network resilience is mandated. Customers still operating on ControlNet can retain a 1756-CNB or 1756-CNBR module in the same chassis during a phased migration, allowing the safety system to communicate with legacy remote I/O racks while the EtherNet/IP infrastructure is being commissioned.

Power supply selection is straightforward: the existing 1756-PA72 (120/240 VAC) or 1756-PB72 (24 VDC) chassis power supply requires no replacement, as the 1756-L7SP draws power from the chassis backplane within the standard 1756 power budget. For high-availability installations, a redundant power supply configuration using a 1756-PB75 is supported without chassis modification.

Programming and commissioning the 1756-L7SP requires Studio 5000 Logix Designer with the Safety Add-On Instructions (AOIs) library. Customers migrating from RSLogix 5000 v19 projects can import existing standard logic tasks directly; safety tasks require re-validation under the new SIL 3 project structure, but the function block and ladder logic programming environment is identical, minimizing retraining requirements for control engineers.

For installations where the control cabinet also houses a PanelView Plus 7 HMI communicating over EtherNet/IP, the safety status tags produced by the 1756-L7SP are directly accessible to the HMI application via standard FactoryTalk View tag browsing — no gateway or protocol converter is required.

Retrofit Guidance FAQ

Q: Can I install the 1756-L7SP in any slot of a 1756 chassis?
A: The 1756-L7SP must occupy the slot immediately adjacent to its paired 1756-L7x standard controller. The backplane pairing is slot-position dependent. Refer to Rockwell publication 1756-UM022 for slot assignment rules.

Q: Do I need to rewire my existing GuardLogix I/O modules?
A: No. The 1756-IB16S, 1756-OB16S, and 1756-IF8S modules retain their existing wiring and terminal block connections. The safety task re-association is handled entirely in software within Studio 5000.

Q: Is my existing Studio 5000 safety project compatible with the 1756-L7SP?
A: Projects developed for the 1756-L6xS require a safety task migration using the Studio 5000 project conversion utility. Standard (non-safety) logic tasks migrate without modification. Safety AOIs and safety tags require re-validation per IEC 61508 change management procedures.

Q: What communication protocols does the 1756-L7SP support?
A: The 1756-L7SP communicates exclusively over the 1756 ControlBus backplane with its paired L7x controller. External network communication (EtherNet/IP, ControlNet, DeviceNet) is handled by dedicated communication modules in the same chassis. CIP Safety over EtherNet/IP is supported for safety I/O on remote racks via the 1756-EN2TR.

Q: How much physical space does the 1756-L7SP require in the control cabinet?
A: The 1756-L7SP occupies one standard 1756 chassis slot (single-width). No additional DIN rail space or external enclosure is required. The module dimensions are identical to all other 1756-series modules, ensuring a direct physical replacement in existing panel layouts.

Q: What is the typical lead time and shipping arrangement?
A: In-stock units ship within 1–3 business days from our Xiamen warehouse. International shipments are dispatched via DHL Express or FedEx International Priority. Customs documentation, including HS code classification and commercial invoice, is prepared by our logistics team. Emergency same-day dispatch is available for critical plant shutdown situations — contact us directly.

Warranty Assurance

Every 1756-L7SP unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment test protocol includes backplane communication verification, safety partner pairing handshake simulation, firmware version confirmation, and visual inspection for connector integrity and housing condition. A test report is included with each shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of fault confirmation, with no requirement to return the defective unit before the replacement ships for critical production environments. Our after-sales engineering team is available via email and phone to assist with installation verification, Studio 5000 configuration questions, and on-site commissioning support coordination.

For procurement teams requiring documentation, we can provide a Certificate of Conformity, material traceability records, and a signed warranty letter on company letterhead upon request. Volume orders (5+ units) qualify for extended warranty terms and priority stock reservation — contact our sales team to discuss framework agreements.
