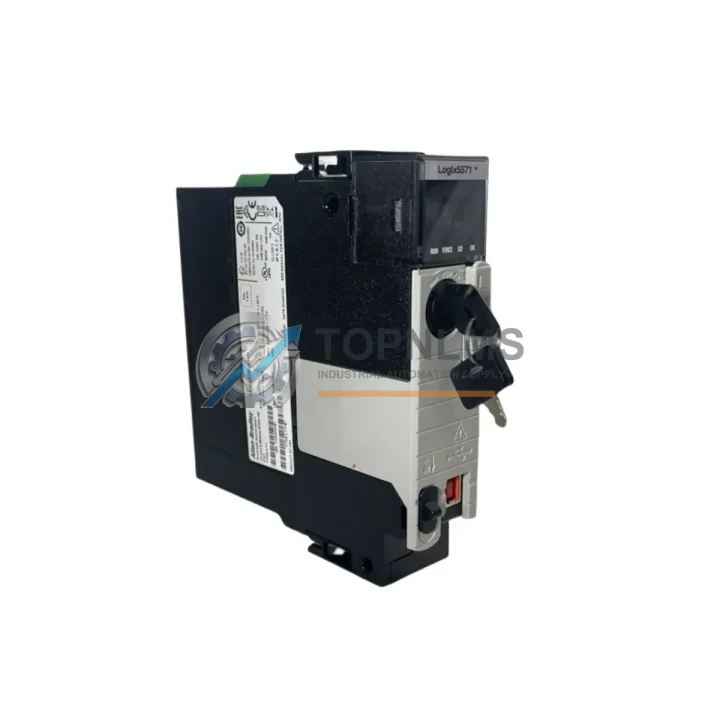

Allen-Bradley 1756-L71/B Ruggedized CPU Module for Harsh Environments

Product Overview

Allen-Bradley 1756-L71/B Ruggedized CPU Module for Harsh Environments

The Allen-Bradley 1756-L71/B is a high-performance ControlLogix 5570 series CPU module engineered for mission-critical industrial automation in the most demanding environments. Designed to deliver uninterrupted control in conditions characterized by extreme temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module is the backbone of reliable PLC-based control architectures across heavy industry worldwide.

At its core, the 1756-L71/B provides 2 MB of user memory and is built on Rockwell Automation’s proven ControlLogix platform — a platform trusted in continuous production lines, hazardous area installations, and safety-critical infrastructure where downtime is not an option. Its robust hardware design ensures stable execution of ladder logic, function block, structured text, and sequential function chart programs even under sustained electrical noise and power fluctuation conditions common in industrial substations and motor control centers.

In high-temperature foundry and smelting environments, where ambient temperatures routinely exceed standard operating thresholds, the 1756-L71/B maintains deterministic scan cycle performance without thermal throttling. Its internal architecture is hardened against the conductive dust and metallic particulates prevalent in mining, cement production, and steel manufacturing — environments where lesser controllers suffer accelerated wear and unpredictable faults.

Vibration and mechanical shock — inherent in compressor stations, offshore drilling platforms, and heavy press operations — are managed through the module’s ruggedized PCB construction and secure backplane seating within the 1756 chassis. When paired with the 1756-PA75 or 1756-PB75 power supply modules, the system delivers clean, regulated power that protects the CPU and all co-resident I/O modules from voltage transients and brownout conditions.

Electromagnetic compatibility is a defining strength of the ControlLogix 5570 series. In environments with large variable frequency drives (VFDs), high-current motor starters, and arc welding equipment operating in close proximity, the 1756-L71/B sustains reliable EtherNet/IP communications via the 1756-EN2T or 1756-EN2TR communication modules. Redundant ring topologies supported by the EN2TR variant further eliminate single points of network failure in water treatment plants and power generation facilities.

For distributed I/O architectures, the 1756-L71/B seamlessly coordinates with 1756-IB16 digital input modules, 1756-OB16E digital output modules, and 1756-IF16 analog input modules installed across remote chassis in the same ControlLogix system. This scalability makes it equally suited to compact machine-level control and plant-wide SCADA integration. Safety-rated applications benefit from integration with the 1756-L7SP Safety Partner module, enabling SIL 2 and SIL 3 certified safety functions within the same chassis footprint.

In oil and gas upstream and midstream operations — pipeline compression, wellhead control, and gas processing — the 1756-L71/B operates within Class I Division 2 rated enclosures, providing the processing power needed for complex regulatory control loops and emergency shutdown (ESD) logic. Its deterministic real-time execution ensures that safety instrumented system (SIS) response times remain within design specifications even under peak process load.

For facilities managing legacy migration, the 1756-L71/B is fully compatible with existing ControlLogix 5570 chassis, power supplies, and I/O modules, making it a direct drop-in replacement that eliminates costly re-engineering. TOPNLMS maintains verified stock of this module, enabling rapid spare parts fulfillment to minimize mean time to repair (MTTR) in unplanned outage scenarios.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-L71/B is rarely deployed in isolation — its full protective and control capability is realized within a carefully engineered ControlLogix system. In a typical heavy-industry control cabinet, the CPU module operates alongside the 1756-PA75 AC power supply, which provides regulated 1.2 A backplane current to sustain all co-resident modules under load. For DC-powered installations in remote field stations or battery-backed UPS environments, the 1756-PB75 DC power supply serves the same role with equivalent reliability.

Digital I/O is handled by modules such as the 1756-IB16 (16-point 24 VDC sink input) and the 1756-OB16E (16-point electronically fused output), both of which are rated for the same harsh-environment chassis and provide the field interface for motor starters, solenoid valves, and discrete sensors. Analog process variables — pressure, temperature, flow — are acquired through the 1756-IF16 analog input module, which delivers 16-channel, 16-bit resolution suitable for precision PID control in chemical processing and refining applications.

Network connectivity is extended via the 1756-EN2TR dual-port EtherNet/IP communication module, which supports Device Level Ring (DLR) topology for fault-tolerant network architectures in continuous process plants. For legacy ControlNet installations, the 1756-CN2 module maintains backward compatibility. Safety logic is co-executed using the 1756-L7SP Safety Partner, enabling integrated safety and standard control within a single chassis — a configuration widely adopted in machine guarding and emergency shutdown systems.

Terminal block and wiring infrastructure — including 1492-series wiring systems and IFM interface modules — complete the field-side connection, ensuring that the entire signal chain from field device to CPU maintains the same level of environmental protection and signal integrity that the 1756-L71/B demands.

Application in Critical Infrastructure

In oil and gas midstream compression stations, the 1756-L71/B manages multi-loop regulatory control for gas compressor trains, coordinating speed references to variable frequency drives, monitoring vibration and temperature via analog inputs, and executing emergency shutdown sequences within deterministic scan times. Its ability to sustain control integrity during power grid disturbances — common in remote pipeline installations — makes it the preferred CPU for ESD and F&G (fire and gas) system integration.

In coal and hard-rock mining operations, the module controls conveyor drive systems, ventilation fan arrays, and dewatering pump stations in environments saturated with conductive coal dust and silica particulates. Installed within NEMA 4X or IP65-rated control enclosures, the ControlLogix system anchored by the 1756-L71/B maintains continuous operation through shift changes, blasting events, and the sustained mechanical vibration of underground haulage equipment.

Power generation facilities — including thermal, hydroelectric, and combined-cycle gas turbine plants — rely on the 1756-L71/B for turbine governor control, boiler management, and balance-of-plant automation. Its high I/O capacity and multi-tasking architecture allow a single CPU to manage both fast-response turbine protection tasks and slower auxiliary system monitoring tasks simultaneously, reducing hardware footprint and simplifying maintenance.

Municipal and industrial water treatment plants deploy the 1756-L71/B in SCADA-integrated architectures controlling dosing pumps, aeration blowers, clarifier drives, and UV disinfection systems. The module’s EtherNet/IP connectivity enables seamless integration with SCADA historian platforms and remote HMI stations, providing operators with real-time process visibility and alarm management across geographically distributed treatment facilities.

In steel and aluminum smelting, where electromagnetic interference from arc furnaces and induction heaters is extreme, the 1756-L71/B’s EMI-hardened design and shielded backplane communications maintain control system integrity where standard PLCs would experience spurious faults and communication dropouts.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1756-L71/B?
All Allen-Bradley 1756-L71/B modules supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority turnaround to minimize your plant downtime. Replacement or repair is arranged directly through our technical team at [email protected].

Q2: How is each module tested before shipment?
Every 1756-L71/B unit undergoes pre-shipment functional verification including power-on self-test (POST) confirmation, backplane communication integrity check, and firmware version validation. Modules supplied as Surplus New are inspected for physical condition and verified against Rockwell Automation’s published hardware revision specifications. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1756-L71/B compatible with my existing ControlLogix chassis and I/O modules?
Yes. The 1756-L71/B is fully backward compatible with all standard 1756 ControlLogix chassis (4 through 17-slot), all 1756-series I/O modules, and all ControlLogix-compatible communication modules. It is also forward compatible with Studio 5000 Logix Designer v21 and later. If you are migrating from an earlier /A revision, the /B revision is a direct hardware replacement with no chassis or wiring modifications required.

Q4: Can TOPNLMS support long-term and repeat supply of this module?
Yes. TOPNLMS maintains a managed inventory of ControlLogix 5570 series modules, including the 1756-L71/B, to support both emergency spare parts procurement and planned maintenance schedules. We offer volume pricing for MRO (Maintenance, Repair & Operations) contracts and can provide lead-time commitments for scheduled plant turnarounds. Contact our team at [email protected] or +86 18359293191 to discuss your supply requirements.
