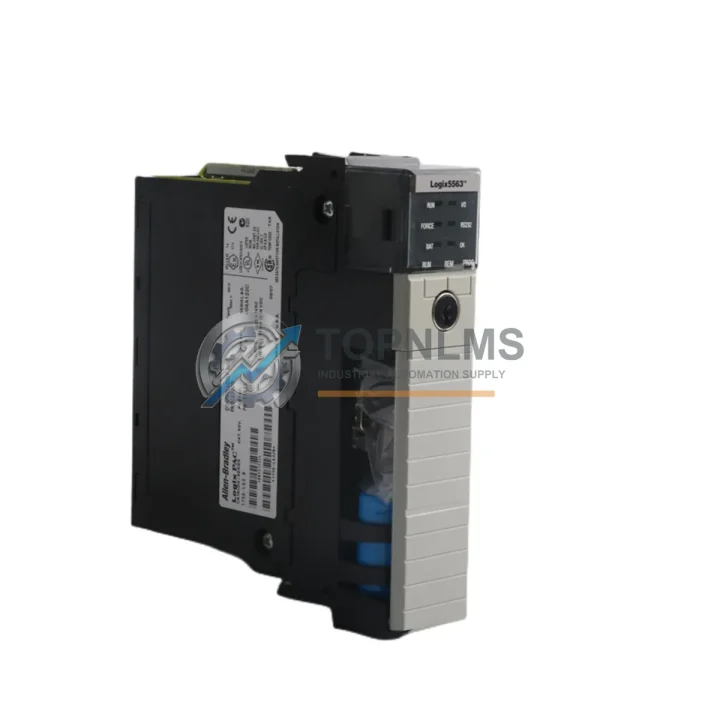

Allen-Bradley 1756-L63 Original Industrial Spare ControlLogix Compatible

Product Overview

Allen-Bradley 1756-L63 Original Industrial Spare ControlLogix Compatible: System Stability & Maintenance Value

The Allen-Bradley 1756-L63 ControlLogix Processor is a cornerstone component in mission-critical industrial automation environments. As a genuine original spare, it delivers the processing power, memory capacity, and firmware compatibility that plant engineers and maintenance teams depend on to keep production lines running without interruption. Whether you are managing a scheduled shutdown, responding to an unplanned fault, or building a strategic spare-parts inventory, the 1756-L63 represents one of the highest-value investments in your control system’s long-term reliability.

With 8 MB of user memory and full compatibility across the 1756 ControlLogix chassis family, this processor supports ladder logic, function block diagram, structured text, and sequential function chart programming — making it a versatile replacement across a wide range of OEM machine platforms and custom-engineered systems. Its proven track record in automotive, oil & gas, food & beverage, water treatment, and discrete manufacturing makes it one of the most widely stocked PLC processors in global MRO supply chains.

Critical Technical Specs

Preventive Maintenance Strategy

A ControlLogix system is only as reliable as its weakest component. When replacing or inspecting the 1756-L63 processor, experienced maintenance engineers treat the event as an opportunity to audit the entire control cabinet. The processor slot is typically the last component to fail — meaning that by the time a 1756-L63 fault is confirmed, adjacent modules may already be operating outside their rated parameters.

Begin with the chassis power supply. The 1756-PA72 or 1756-PB72 power supply should be inspected for output voltage stability and capacitor aging. A degraded power supply is one of the leading causes of intermittent processor faults and memory corruption events. If the system has been in service for more than five years, proactive replacement of the power supply alongside the processor is strongly recommended.

Next, inspect the communication infrastructure. The 1756-EN2T EtherNet/IP communication module handles real-time data exchange between the ControlLogix processor and SCADA, HMI, and remote I/O nodes. A failing EN2T can cause sporadic communication timeouts that are frequently misdiagnosed as processor faults. Similarly, if your system uses DeviceNet or ControlNet, inspect the 1756-DNB DeviceNet Bridge module and 1756-CNB ControlNet Bridge module for firmware currency and physical connector integrity.

I/O module health is equally critical. Digital input modules such as the 1756-IB16 and digital output modules such as the 1756-OB16E should be checked for blown fuses, field wiring integrity, and LED diagnostic status. Analog modules including the 1756-IF8 analog input module should be calibrated and verified against known reference signals during any planned maintenance window. Faulty I/O modules can generate false process data that leads to unnecessary processor program faults.

For systems operating in high-vibration or high-humidity environments, inspect the 1756-series terminal base units and field wiring terminations. Loose terminal connections are a common root cause of intermittent faults that are difficult to reproduce during bench testing. If your cabinet includes signal conditioning, verify that signal isolators and fuse protection modules on the 24 VDC field power rail are functioning correctly — these protect both the I/O modules and the processor from field-side transients.

Finally, if the system includes an operator interface, inspect the PanelView Plus HMI for firmware compatibility with the updated 1756-L63 processor firmware version. Mismatched firmware between the HMI and the controller can cause tag communication failures after a processor swap. Confirm that the 1756-RM2 redundancy module, if present, is synchronized and that the secondary chassis processor — typically another 1756-L63 or 1756-L62 — is also within its service life.

Strategic Replacement Solutions

The 1756-L63 is a direct drop-in replacement for the 1756-L61 (2 MB) and 1756-L62 (4 MB) processors, offering a significant memory upgrade without any chassis or wiring modifications. For facilities migrating from the legacy 1756-L55 platform, the 1756-L63 provides a validated upgrade path that preserves existing I/O wiring, chassis infrastructure, and field device configurations — dramatically reducing the engineering hours and downtime associated with a full system replacement.

In multi-chassis architectures, the 1756-L63 supports Integrated Motion over EtherNet/IP, enabling coordinated axis control across distributed drive systems without dedicated motion controllers. This makes it an ideal replacement processor for legacy motion control applications previously managed by separate 1756-M02AE or 1756-M03SE motion modules.

For facilities managing aging ControlLogix infrastructure, stocking one or two 1756-L63 units as cold spares reduces mean time to repair (MTTR) from days to hours. Combined with a pre-loaded program backup on a 1784-CF64 CompactFlash card, a trained technician can restore full system operation in under 30 minutes — without requiring remote engineering support or emergency procurement lead times that can extend to 4–8 weeks for new units.

All units supplied by TOPNLMS are sourced from verified industrial channels, individually tested for processor boot integrity, memory read/write performance, and backplane communication, and shipped with a 12-month replacement warranty. Each unit is packaged in anti-static protective packaging with full documentation of pre-shipment test results.

Support FAQ

Q1: Is the 1756-L63 compatible with my existing ControlLogix chassis and I/O modules?
Yes. The 1756-L63 is fully compatible with all 1756-series chassis (A4 through A17) and all current 1756-series I/O, communication, and motion modules. It is also backward-compatible with programs developed in RSLogix 5000 and Studio 5000 Logix Designer. Firmware upgrades can be applied via USB using ControlFLASH utility.

Q2: What is included in the 12-month warranty and how does the replacement process work?
Every 1756-L63 unit is tested before shipment for processor initialization, memory integrity, and backplane communication. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides advance replacement or repair service with a target turnaround of 5–7 business days. Contact [email protected] to initiate a claim.

Q3: How should I verify compatibility before installing a replacement 1756-L63 in my system?
Before installation, confirm the firmware revision of your existing processor using RSLinx Classic or Studio 5000. Match or upgrade the firmware on the replacement unit using ControlFLASH prior to installation. Verify that your program backup (.ACD file) was saved from the same or earlier firmware revision. For redundant systems, ensure both primary and secondary processors are running identical firmware revisions before initiating a switchover test.

Q4: What is the recommended spare-parts stocking strategy for ControlLogix systems?
For production-critical systems, maintain at minimum one cold spare 1756-L63 processor per plant site, stored in original anti-static packaging in a climate-controlled environment. For multi-line facilities, a ratio of one spare per three to five installed processors is a widely adopted industry benchmark. Pair each spare processor with a current program backup on a 1784-CF64 CompactFlash card and a documented restoration procedure to ensure any technician can execute a swap without specialist support.
