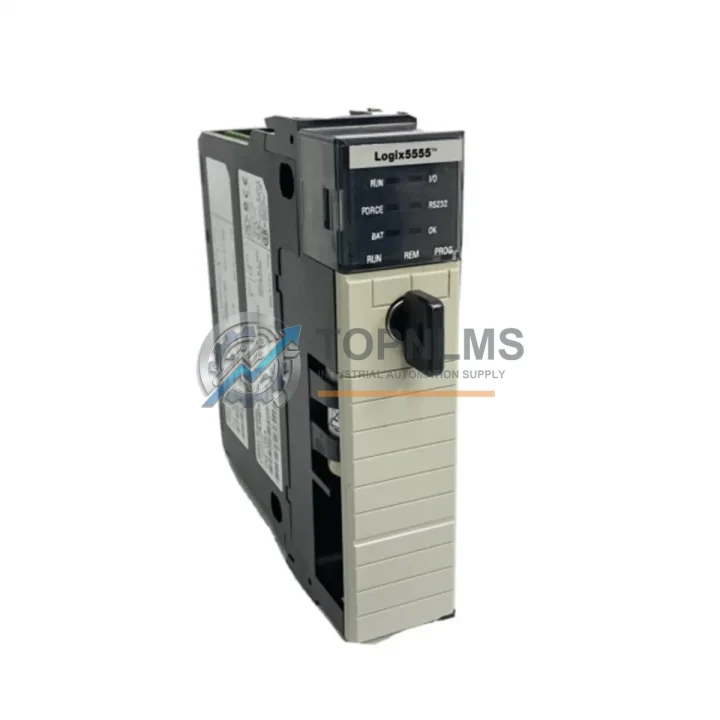

Allen-Bradley 1756-L55M24 Ruggedized CPU Module for Harsh Environments

Product Overview

Allen-Bradley 1756-L55M24 Ruggedized CPU Module for Harsh Environments

The Allen-Bradley 1756-L55M24 is a Logix5555 processor module within the ControlLogix platform, engineered to deliver uncompromising control performance in the most demanding industrial environments. With 1.5 MB of user memory and a robust hardware architecture, this CPU module is purpose-built to sustain continuous operation across high-temperature facilities, high-humidity process plants, dust-laden mining sites, high-vibration heavy machinery lines, and environments subject to intense electromagnetic interference (EMI). Whether deployed in a petrochemical refinery, a steel mill, a water treatment facility, or a power generation plant, the 1756-L55M24 provides the processing backbone that keeps critical infrastructure running without interruption.

Designed to slot directly into the 1756 ControlLogix chassis, the 1756-L55M24 operates seamlessly alongside the full ecosystem of ControlLogix I/O modules, communication adapters, and power supplies. Its deterministic scan-cycle execution ensures that safety-critical ladder logic, function block diagrams, and structured text programs respond predictably even under peak load conditions. The module supports Logix5000 firmware and is fully compatible with Studio 5000 Logix Designer, enabling engineers to leverage modern programming tools while maintaining backward compatibility with legacy ControlLogix architectures.

In harsh-environment deployments, the 1756-L55M24 is frequently paired with the 1756-PA72 or 1756-PB72 ControlLogix power supply modules, which provide stable, filtered DC power to the chassis even when the facility power grid experiences voltage fluctuations or transient spikes common in heavy industrial settings. The chassis backplane isolates the CPU from conducted noise, while the module’s internal design provides additional immunity to radiated EMI from variable frequency drives (VFDs), large motor starters, and high-current bus bars operating in the same control cabinet.

For distributed I/O architectures spanning large plant floors, the 1756-L55M24 communicates over EtherNet/IP via the 1756-EN2T or 1756-EN2TR communication modules, enabling high-speed, deterministic data exchange with remote I/O racks, SCADA systems, and HMI panels. In installations requiring DeviceNet or ControlNet connectivity, the 1756-DNB and 1756-CNB adapter modules integrate directly into the same chassis, allowing the 1756-L55M24 to orchestrate a unified control network across multiple field device layers. This multi-protocol flexibility is critical in brownfield upgrades where legacy fieldbus infrastructure must coexist with modern Ethernet-based architectures.

The 1756-L55M24 also plays a central role in safety-integrated systems. When deployed alongside the 1756-L61S GuardLogix safety controller or paired with 1791DS-IB8XOBV4 safety I/O modules, it enables a coordinated safety architecture that meets SIL 2 and PLe requirements for machinery guarding, emergency stop circuits, and process shutdown systems. In oil and gas applications, this combination supports IEC 61511-compliant safety instrumented functions (SIFs) for burner management, pressure relief, and wellhead control. The module’s non-volatile memory retains the control program through power loss events, eliminating the risk of undefined states during unplanned shutdowns — a critical requirement in continuous-process industries.

Maintenance engineers and procurement teams operating in industries with long equipment lifecycles — including mining, pulp and paper, water utilities, and municipal power — recognize the 1756-L55M24 as a high-value spare and replacement module. Its compatibility with existing 1756 chassis hardware means that upgrading from an older Logix5550 or Logix5553 processor requires no chassis replacement, significantly reducing downtime and capital expenditure. The module can be hot-swapped in chassis configurations that support redundancy, and when paired with the 1756-RM2 redundancy module, it enables a fully redundant controller architecture with automatic failover — essential for processes where even a few seconds of unplanned downtime translates to significant production loss or safety risk.

At TOPNLMS, every 1756-L55M24 unit is sourced from verified supply channels and undergoes pre-shipment functional inspection to confirm module integrity, firmware version, and physical condition. Units are shipped in anti-static packaging with appropriate cushioning to protect against transit vibration and electrostatic discharge. Our inventory is maintained to support urgent spare-part requirements, and orders are processed for fast dispatch to minimize plant downtime. Each unit is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-L55M24 is most effective when integrated as part of a complete ControlLogix protection and control architecture. In high-vibration environments such as compressor stations or rolling mills, the module is mounted in a 1756-A17 seventeen-slot chassis secured with vibration-dampening hardware, with the 1756-PA72 power supply providing clean, regulated power. Digital and analog field signals are conditioned through 1756-IB16 digital input modules and 1756-OF8 analog output modules before reaching the CPU, ensuring that noisy field signals do not propagate into the control logic layer.

For installations in classified hazardous areas (Zone 1 or Zone 2 per IEC 60079), the 1756-L55M24 is housed in a purged and pressurized enclosure (Ex p) or located in a safe area with intrinsically safe barriers — such as the MTL7706+ or P+F KFD2-series isolators — protecting the I/O wiring from ignition risk. Communication to field instruments in the hazardous zone is handled via HART-enabled analog modules or FOUNDATION Fieldbus linking devices, with the 1756-L55M24 executing the supervisory control logic in the safe area control room.

In power generation and substation automation applications, the 1756-L55M24 is paired with 1756-EN2TR dual-port EtherNet/IP modules configured in Device Level Ring (DLR) topology, providing network-level fault tolerance. The 1756-RM2 redundancy module enables controller-level failover in under 10 milliseconds, ensuring that turbine control, excitation management, and protection relay coordination continue without interruption during a primary controller fault. Alongside these, 1756-CNBR ControlNet bridge modules maintain deterministic communication to remote I/O panels distributed across the plant.

For water and wastewater treatment facilities requiring long-distance communication to remote pump stations, the 1756-L55M24 manages the master control logic while 1734 POINT I/O adapter modules — connected via EtherNet/IP — handle local field I/O at each remote station. This distributed architecture reduces wiring costs, simplifies troubleshooting, and allows the central 1756-L55M24 processor to maintain a unified process view across the entire treatment network.

Application in Critical Infrastructure

In upstream oil and gas operations, the 1756-L55M24 serves as the primary controller for wellhead automation panels, managing electric submersible pump (ESP) control, Christmas tree valve sequencing, and production data acquisition. Its non-volatile memory and redundancy-ready architecture ensure that production continues through power interruptions and that safety shutdown sequences execute correctly even during controller maintenance events. The module’s compatibility with Rockwell Automation’s PlantPAx distributed control system (DCS) library allows it to function as a unit controller within a larger DCS architecture, bridging the gap between traditional PLC control and modern process automation.

In underground mining environments, where diesel particulate matter, coal dust, and high humidity create extreme conditions for electronic equipment, the 1756-L55M24 is deployed in sealed, climate-controlled control cabinets with positive-pressure ventilation. It manages conveyor belt sequencing, ventilation fan control, and emergency stop systems across multiple mining levels. The module’s robust EMI immunity prevents spurious trips caused by the large variable frequency drives used to control hoist motors and conveyor systems — a common failure mode for less robust controllers in this environment.

In steel and aluminum smelting facilities, the 1756-L55M24 controls furnace temperature regulation, ladle transfer car positioning, and rolling mill speed synchronization. The extreme thermal radiation and electromagnetic noise generated by arc furnaces and induction heaters demand a controller with proven EMI immunity and thermal stability — characteristics that have made the ControlLogix platform the preferred choice for metals industry automation for over two decades. The module’s fast scan time ensures that speed-matching logic between tandem rolling mill stands executes within the tight tolerances required to prevent strip breaks and surface defects.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange for a replacement unit to be dispatched or provide a full refund, depending on stock availability and your preference. Return shipping for warranty claims is covered by TOPNLMS.

Q2: How is each 1756-L55M24 unit tested before shipment?
Every unit undergoes a pre-shipment inspection that includes visual examination for physical damage, verification of the firmware version label, and a functional power-on test where applicable. Units sourced as new-in-box are verified against original manufacturer packaging integrity. Refurbished units are tested for basic operational functionality and cleaned to remove contamination before repackaging in anti-static bags with foam cushioning. A test report summary is available upon request for critical spare applications.

Q3: Is the 1756-L55M24 compatible with my existing ControlLogix chassis and I/O modules?
Yes. The 1756-L55M24 is compatible with all standard 1756 ControlLogix chassis variants (4, 7, 10, 13, and 17-slot) and operates alongside the full range of 1756-series I/O, communication, and power supply modules. It runs Logix5000 firmware and is programmable with RSLogix 5000 and Studio 5000 Logix Designer. If you are upgrading from an older Logix5550 or Logix5553 processor, the 1756-L55M24 is a direct chassis-compatible replacement requiring only a firmware and program migration — no chassis or wiring changes are needed.

Q4: Can TOPNLMS support long-term or recurring supply of the 1756-L55M24 for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand ControlLogix modules including the 1756-L55M24 to support planned maintenance shutdowns, emergency spare requirements, and multi-site procurement programs. We can provide volume pricing, reserved stock agreements, and priority dispatch arrangements for customers with recurring needs. Contact [email protected] or call +86 18359293191 to discuss a supply agreement tailored to your maintenance schedule.
