Allen-Bradley 1756-L55M16 Original Industrial Spare ControlLogix Compatible

Product Overview

Allen-Bradley 1756-L55M16 Original Industrial Spare ControlLogix Compatible: System Stability and Industrial Spare Parts Maintenance Value

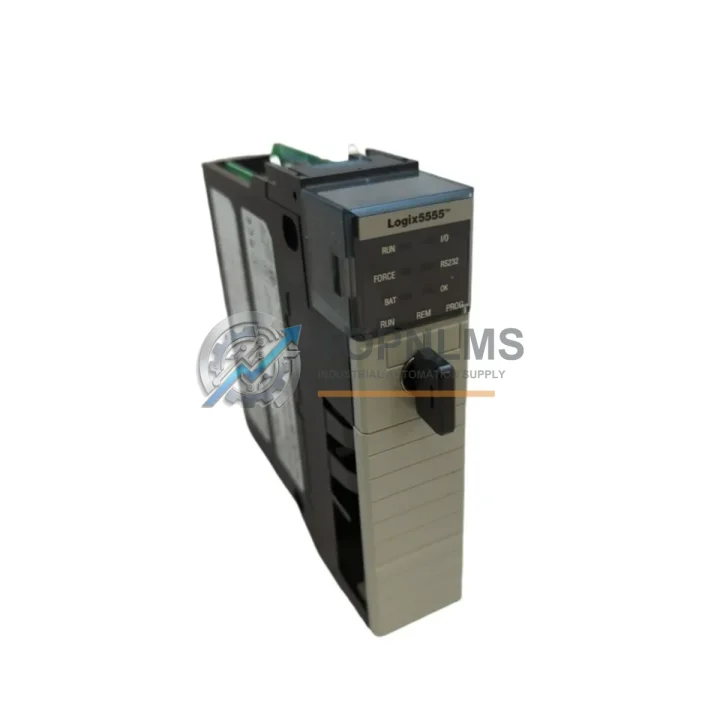

The Allen-Bradley 1756-L55M16 is a 7.5MB user memory ControlLogix Series processor module designed for mission-critical industrial automation environments. As a genuine original spare part, it provides a direct, drop-in replacement path for aging ControlLogix 5555 processor installations — eliminating the risk of extended downtime caused by processor failure in continuous-process manufacturing, automotive assembly, oil & gas, and utilities infrastructure. Sourced, tested, and dispatched from TOPNLMS inventory, this unit is backed by a 12-month warranty and ships with full pre-shipment functional verification.

For maintenance engineers managing legacy ControlLogix 5500 series control cabinets, holding a verified 1756-L55M16 in local spare stock is one of the most cost-effective risk mitigation strategies available. Processor failures are low-frequency but catastrophic in impact — a single unplanned shutdown in a high-throughput facility can cost multiples of the spare part value within hours. Stocking this module as a cold standby eliminates that exposure entirely.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned inspection or emergency replacement of the 1756-L55M16 processor, experienced maintenance teams treat the event as an opportunity to audit the entire ControlLogix chassis and associated electrical cabinet. A processor swap that is performed in isolation — without checking adjacent modules — frequently results in a second unplanned outage within weeks, caused by a component that was already degraded at the time of the first intervention.

During a 1756-L55M16 replacement, the following components in the same chassis and control cabinet should be inspected and, where appropriate, replaced or held as verified spares:

The 1756-PA72 or 1756-PB72 power supply module is the first item to evaluate. Processor instability and unexpected reboots are frequently caused by a power supply that is operating near the end of its service life rather than by the processor itself. Verifying output voltage stability under load before and after a processor swap is standard practice. Similarly, the 1756-EN2T or 1756-ENBT EtherNet/IP communication module should be checked for firmware currency and connection integrity — a degraded network module can cause the replacement processor to exhibit erratic behavior that mimics a hardware fault.

I/O infrastructure deserves equal attention. 1756-IB16 digital input modules and 1756-OB16E digital output modules accumulate field wiring stress over years of operation. Loose terminal connections, oxidized contacts, and blown channel fuses are common findings during a processor-level maintenance event. If the system includes analog process control loops, the 1756-IF8 analog input module and 1756-OF8 analog output module should be calibration-verified, as signal drift in these modules can cause process upsets that are incorrectly attributed to the processor.

For systems using DeviceNet or ControlNet field buses, the 1756-DNB DeviceNet Bridge module and 1756-CNB ControlNet Bridge module should be inspected for communication error counts and cable termination integrity. These modules are often overlooked during processor-focused maintenance windows but are a common source of intermittent faults in aging ControlLogix installations.

At the cabinet level, 1492-J terminal blocks and associated wiring ferrules should be torque-checked, and any 1756-TBCH or 1756-TBS6H wiring arm assemblies on I/O modules should be inspected for insulation condition. Fuse modules protecting 24VDC field device circuits are another high-value inspection point — a blown fuse that goes undetected during a processor swap will cause a field device fault that appears immediately after the new processor comes online, creating unnecessary diagnostic confusion.

Maintaining a documented spare parts list that covers the processor, power supply, at least one of each I/O module type, and the primary communication module is the minimum recommended inventory posture for a ControlLogix-based production line. This approach ensures that any single-module failure can be resolved within one shift without waiting for expedited freight.

Strategic Replacement Solutions

The 1756-L55M16 was introduced as part of the ControlLogix 5555 processor family and remains in active use across thousands of installed systems globally. While Rockwell Automation has introduced successor platforms including the 1756-L7x and 1756-L8x series, many facilities operating legacy ControlLogix 5500 systems have made a deliberate decision to extend the life of their existing installations rather than undertake a full platform migration. This decision is driven by the capital cost of migration, the engineering time required to re-validate control programs, and the operational risk of a major system change in a running production environment.

For these facilities, sourcing a verified original 1756-L55M16 spare is the most direct path to system continuity. The module installs into any standard 1756 chassis without hardware modification, accepts the existing RSLogix 5000 program via direct download, and restores full system functionality without requiring changes to the HMI configuration, field wiring, or network topology. Replacement time for a trained technician with a pre-configured spare is typically under 30 minutes, including program download and I/O verification.

For facilities that are planning a future migration to the 1756-L73 or 1756-L83E platform, holding a 1756-L55M16 spare in the interim period provides a critical safety net. It ensures that a processor failure during the migration planning phase does not force an unplanned, unvalidated platform change under production pressure — one of the most common causes of extended downtime in industrial automation environments.

All units supplied by TOPNLMS are sourced from verified supply channels, subjected to pre-shipment functional testing, and dispatched with documentation supporting traceability. Standard lead time is 1–3 business days for in-stock units, with express shipping options available for urgent maintenance requirements.

Support FAQ

Q: Is the 1756-L55M16 compatible with my existing RSLogix 5000 program without modification?
A: Yes. The 1756-L55M16 is a direct hardware replacement for any other Logix5555 processor. Your existing RSLogix 5000 or Studio 5000 project file can be downloaded to the replacement unit without modification, provided the firmware version is matched or updated via ControlFlash prior to download.

Q: What does the 12-month warranty cover, and how is a warranty claim handled?
A: The 12-month warranty covers hardware defects and functional failures under normal operating conditions from the date of shipment. In the event of a warranty claim, TOPNLMS will arrange return logistics and provide a replacement unit or full refund. Contact [email protected] with your order reference and a description of the fault.

Q: How do you verify the unit before shipment?
A: Each 1756-L55M16 unit undergoes a pre-shipment functional test that includes power-on verification, backplane communication check, and firmware version confirmation. Units that do not pass testing are not dispatched. A test report is available upon request for quality-critical procurement processes.

Q: What is the recommended inventory strategy for a facility running multiple ControlLogix chassis?
A: For facilities with two or more ControlLogix 5500 series chassis, the recommended minimum spare holding is one 1756-L55M16 processor and one power supply module per site. For facilities with four or more chassis, a one-per-line spare posture is advisable. This inventory level ensures that any single-chassis processor failure can be resolved within one shift without expedited freight costs.
