Allen-Bradley 1756-L55M13 Replacement for ControlLogix L55

Product Overview

Allen-Bradley 1756-L55M13 Replacement for ControlLogix L55: Seamless Migration & Upgrade Solution

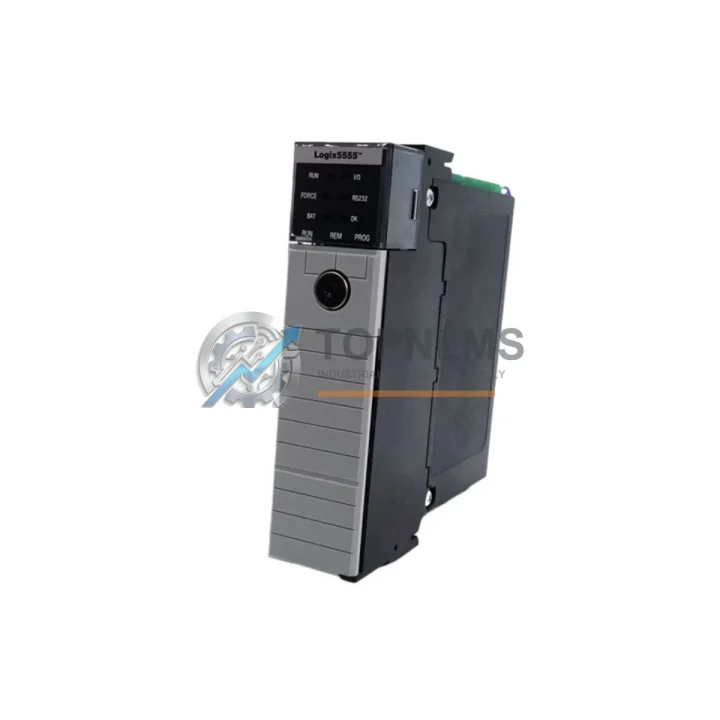

The Allen-Bradley 1756-L55M13 is a ControlLogix Logix5555 processor module with 1.5 MB of user memory, designed for high-performance discrete, process, motion, and safety control applications on the 1756 chassis platform. As Rockwell Automation has progressively phased out the L55 processor family in favor of the L7x and L8x series, many facilities operating legacy ControlLogix systems now face the challenge of sourcing reliable replacement units to maintain production continuity without committing to a full system overhaul.

TOPNLMS supplies verified 1756-L55M13 replacement modules sourced from authorized distribution channels and tested prior to shipment. Whether your facility requires an emergency swap-out due to processor failure, a planned spare for a critical production line, or a bridge unit while a full migration to the 1756-L73 or 1756-L74 is being engineered, the 1756-L55M13 available through TOPNLMS provides a direct, code-compatible, rack-compatible solution that minimizes engineering rework and downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1756-L55M13 replacement or migration rarely involves the processor alone. In most ControlLogix installations, the processor works in concert with a suite of I/O, communication, and power modules that must remain operational throughout the transition.

For facilities maintaining the existing L55 platform, the most common companion modules include the 1756-ENBT EtherNet/IP bridge module, which provides the primary network connection for SCADA, HMI, and remote I/O communication. Where ControlNet is the plant backbone, the 1756-CNB or 1756-CNBR (redundant) ControlNet bridge modules remain essential and are fully compatible with the 1756-L55M13 in the same chassis. Discrete I/O modules such as the 1756-IB16 (16-point 24VDC input) and 1756-OB16E (16-point electronically fused output) continue to operate without modification when the processor is swapped, as all I/O configuration is stored in the .ACD project file and restored automatically on first scan.

For sites running DeviceNet field devices — variable frequency drives, smart motor controllers, or distributed I/O adapters — the 1756-DNB DeviceNet scanner module retains its configuration independently of the processor swap, provided the EDS files and scanner configuration are backed up prior to the replacement procedure. Similarly, analog I/O modules such as the 1756-IF16 (16-channel analog input) maintain their calibration data in non-volatile memory on the module itself, not on the processor, which significantly simplifies the swap-out process.

When the migration path leads toward the L7x platform, facilities typically introduce the 1756-EN2T dual-port EtherNet/IP module to replace the aging 1756-ENBT, taking advantage of Device Level Ring (DLR) topology support and improved throughput. The existing 1756-PA72 or 1756-PB72 power supply modules require no replacement during a processor-only swap, as the 1756 chassis power budget is unaffected by the processor model change. For applications requiring motion control, the 1756-M02AE or 1756-M03SE servo drive interface modules continue to function with the L55 processor and can be retained during a phased migration.

HMI systems connected via EtherNet/IP — including PanelView Plus terminals communicating through FactoryTalk View ME — require no re-configuration when the processor IP address and tag database structure are preserved during the swap. This is a key advantage of a like-for-like 1756-L55M13 replacement: the control program, tag names, I/O tree, and network addressing remain identical, eliminating the need for HMI screen modifications or operator retraining.

Retrofit Guidance FAQ

Q: Can I install the replacement 1756-L55M13 in the same chassis slot without rewiring?
Yes. The 1756-L55M13 is a direct slot-compatible replacement. No field wiring changes are required. The processor connects to the chassis backplane only — all field wiring terminates at the I/O modules, which remain undisturbed.

Q: How do I restore my control program to the replacement processor?
Restore the .ACD project file from your most recent RSLogix 5000 or Studio 5000 backup using the “Download” function. Ensure the firmware revision on the replacement unit matches your project’s target revision. TOPNLMS can confirm the firmware revision of the unit prior to shipment upon request.

Q: Is the 1756-L55M13 compatible with my existing 1756-ENBT EtherNet/IP module?
Yes. The 1756-ENBT communicates with the processor via the 1756 chassis backplane using the standard ControlBus protocol, which is consistent across all L55-series processors. No bridge module reconfiguration is required after a processor swap.

Q: What happens to my ControlNet network during the processor replacement?
The 1756-CNB ControlNet bridge module maintains its network node address and scheduled connection table independently of the processor. During the processor swap (typically 5–15 minutes for an experienced technician), ControlNet I/O will go into fault state. Upon processor restart and program download, scheduled connections re-establish automatically.

Q: Will the replacement processor fit in my existing 1756 chassis?
Yes. All 1756-series chassis (4-slot 1756-A4, 7-slot 1756-A7, 10-slot 1756-A10, 13-slot 1756-A13, and 17-slot 1756-A17) are compatible. The 1756-L55M13 occupies a single slot.

Q: My plant uses a 1756-L55M13 in a redundancy configuration. Is this supported?
The 1756-L55M13 supports ControlLogix redundancy when paired with the 1756-RM redundancy module. Both the primary and secondary chassis must use identical processor models and firmware revisions. TOPNLMS can supply matched pairs upon request.

Q: What is the lead time and shipping arrangement?
In-stock units ship within 1–3 business days from Xiamen, China via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Estimated transit time to most destinations is 3–7 business days. Express same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty Assurance

Every 1756-L55M13 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional verification that includes power-on self-test confirmation, firmware revision verification, and physical inspection for connector integrity and housing condition.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund at the buyer’s discretion. Return shipping for confirmed defective units is covered by TOPNLMS for the first 30 days post-delivery. After 30 days and within the 12-month warranty window, TOPNLMS covers the cost of the replacement unit and outbound shipping of the replacement.

Our technical support team is available via email at [email protected] and by phone at +86 18359293191 to assist with pre-purchase compatibility verification, firmware revision confirmation, and post-installation commissioning questions. Response time for email inquiries is within 4 business hours during CST business days.

TOPNLMS maintains a standing inventory of high-demand ControlLogix processor modules and associated 1756-series components to support emergency replacement scenarios. Procurement teams are encouraged to contact us for volume pricing, consignment stock arrangements, and approved vendor qualification documentation.
