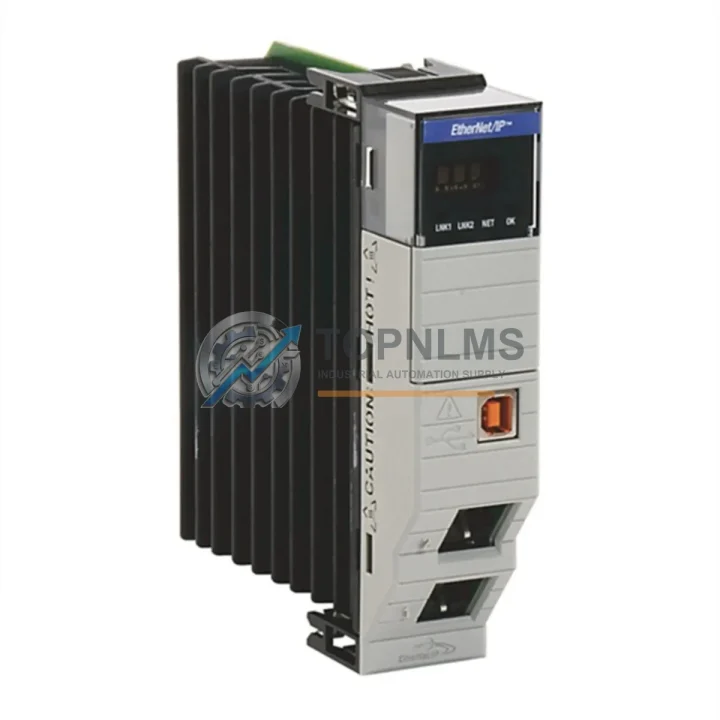

Allen-Bradley 1756-EN3TR Ruggedized EtherNet/IP Bridge Module

Product Overview

Allen-Bradley 1756-EN3TR Ruggedized EtherNet/IP Bridge Module: Industrial Resilience for Harsh Environments

The Allen-Bradley 1756-EN3TR is a dual-port EtherNet/IP bridge module engineered for the ControlLogix platform, purpose-built to sustain reliable communication in the most demanding industrial environments. Whether deployed in high-temperature foundries, high-humidity water treatment facilities, dust-laden mining operations, or vibration-intensive heavy manufacturing lines, the 1756-EN3TR delivers uninterrupted network connectivity where standard communication hardware would fail. Its dual-port topology enables Device Level Ring (DLR) architecture, providing inherent network redundancy that eliminates single points of failure — a critical requirement for continuous production lines and safety-critical infrastructure.

In industrial automation systems, the communication backbone is as vital as the controller itself. The 1756-EN3TR serves as the EtherNet/IP bridge between the ControlLogix backplane and the plant-floor network, ensuring that I/O data, controller-to-controller messaging, and HMI communications remain stable even under electromagnetic interference (EMI) from variable frequency drives (VFDs), large motor starters, and high-voltage switching equipment. Its robust design conforms to IEC 61131 environmental standards, making it a trusted component in control cabinets exposed to electrical noise, thermal cycling, and mechanical shock.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-EN3TR does not operate in isolation — it is the communication nerve center of a broader ControlLogix system architecture. In a typical control cabinet deployment, it works in concert with the 1756-L73 ControlLogix CPU, which executes the ladder logic and function block programs that govern process control. The backplane connecting these modules is powered by a 1756-PA75 power supply, which provides stable, noise-filtered DC power to all chassis-resident modules, including the 1756-EN3TR itself.

On the I/O side, the 1756-EN3TR bridges network traffic to and from digital and analog I/O modules such as the 1756-IB16 digital input module and the 1756-OF8 analog output module, enabling real-time field data acquisition and actuator control. In applications where safety integrity is paramount — such as emergency shutdown (ESD) systems or burner management — the 1756-EN3TR coexists with 1756-L7SP Safety ControlLogix controllers and dedicated safety I/O modules, ensuring that safety-rated communications remain segregated and deterministic.

For distributed control architectures, the 1756-EN3TR facilitates controller-to-controller messaging with remote ControlLogix racks connected via 1756-EN2T EtherNet/IP bridge modules or legacy 1756-DNB DeviceNet bridge modules, maintaining backward compatibility with installed DeviceNet field devices such as smart sensors, valve manifolds, and motor protection relays. In drive-intensive environments, the module coordinates with PowerFlex 755 variable frequency drives over EtherNet/IP, enabling closed-loop speed and torque control with sub-millisecond update rates.

Terminal modules such as the 1492-AIFM analog interface module and wiring arm accessories complete the field-side connectivity, while 1783-BMS series managed Ethernet switches provide the network infrastructure that the 1756-EN3TR relies upon for DLR ring topology. Together, these components form a cohesive, fault-tolerant automation system capable of sustaining 24/7 continuous operation in the harshest industrial conditions.

Application in Critical Infrastructure

The Allen-Bradley 1756-EN3TR is a proven workhorse across the full spectrum of critical industrial infrastructure. In oil and gas upstream operations, it manages EtherNet/IP communications between wellhead controllers and central SCADA systems, maintaining data integrity despite the explosive-atmosphere proximity, extreme temperature swings, and persistent vibration characteristic of drilling platforms and pipeline compression stations. Its DLR capability ensures that a single cable fault does not interrupt production monitoring or emergency shutdown signaling.

In underground mining operations, where coal dust, silica particulate, and mechanical shock are constant threats, the 1756-EN3TR is installed in sealed, climate-controlled control cabinets to manage conveyor drive systems, ventilation fan controls, and dewatering pump automation. Its wide operating temperature range and vibration-rated design allow it to function reliably even when the control cabinet is mounted on mobile mining equipment subject to continuous mechanical stress.

At power generation facilities — including thermal, hydroelectric, and renewable energy plants — the module provides the EtherNet/IP backbone for turbine governor control, generator protection relay integration, and balance-of-plant automation. The inherent EMI resilience of the 1756-EN3TR is particularly valuable in generator switchyards, where high-voltage switching transients can corrupt communications on lesser-grade hardware.

In water and wastewater treatment plants, the 1756-EN3TR coordinates communications between distributed pump stations, chemical dosing systems, and central control rooms, supporting the continuous, unattended operation that municipal water authorities require. Its compatibility with the full ControlLogix ecosystem means that plant expansions can be accommodated without replacing the existing communication infrastructure.

Metallurgical and steel mill applications represent perhaps the most extreme test of any industrial communication module. The 1756-EN3TR has demonstrated sustained reliability in electric arc furnace (EAF) control systems, where radiated EMI levels, thermal radiation, and airborne metallic particulate create an environment that challenges every component in the control system. Its robust backplane connection and sealed module housing protect internal circuitry from conductive contamination.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1756-EN3TR?
Every Allen-Bradley 1756-EN3TR supplied by TOPNLMS carries a 12-month warranty from the date of shipment. This warranty covers functional defects and communication failures under normal operating conditions. Our warranty process is straightforward: contact us directly at [email protected] and we will arrange replacement or repair without bureaucratic delay.

Q2: How is each unit tested before shipment?
All 1756-EN3TR modules undergo a multi-point functional inspection prior to dispatch. Testing includes backplane communication verification, dual-port Ethernet link establishment, DLR topology validation, and firmware version confirmation. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for customers with quality management system (QMS) requirements.

Q3: Is the 1756-EN3TR compatible with my existing ControlLogix chassis and firmware?
The 1756-EN3TR is compatible with all standard ControlLogix 1756-series chassis and is supported by RSLogix 5000 / Studio 5000 Logix Designer software. It is backward-compatible with 1756-L6x and 1756-L7x series controllers and forward-compatible with current 1756-L8x generation CPUs. Firmware updates are managed through Rockwell Automation’s ControlFLASH utility. If you have a specific firmware version or chassis configuration question, our technical team will confirm compatibility before shipment.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains standing inventory of the 1756-EN3TR and related ControlLogix communication modules to support both planned maintenance schedules and emergency breakdown replacement scenarios. We understand that unplanned downtime in continuous process industries carries significant financial consequences. Our standard lead time for in-stock units is 1–3 business days for international shipment, with expedited options available. For customers requiring long-term supply agreements or consignment stock arrangements, please contact us to discuss a tailored procurement solution.
